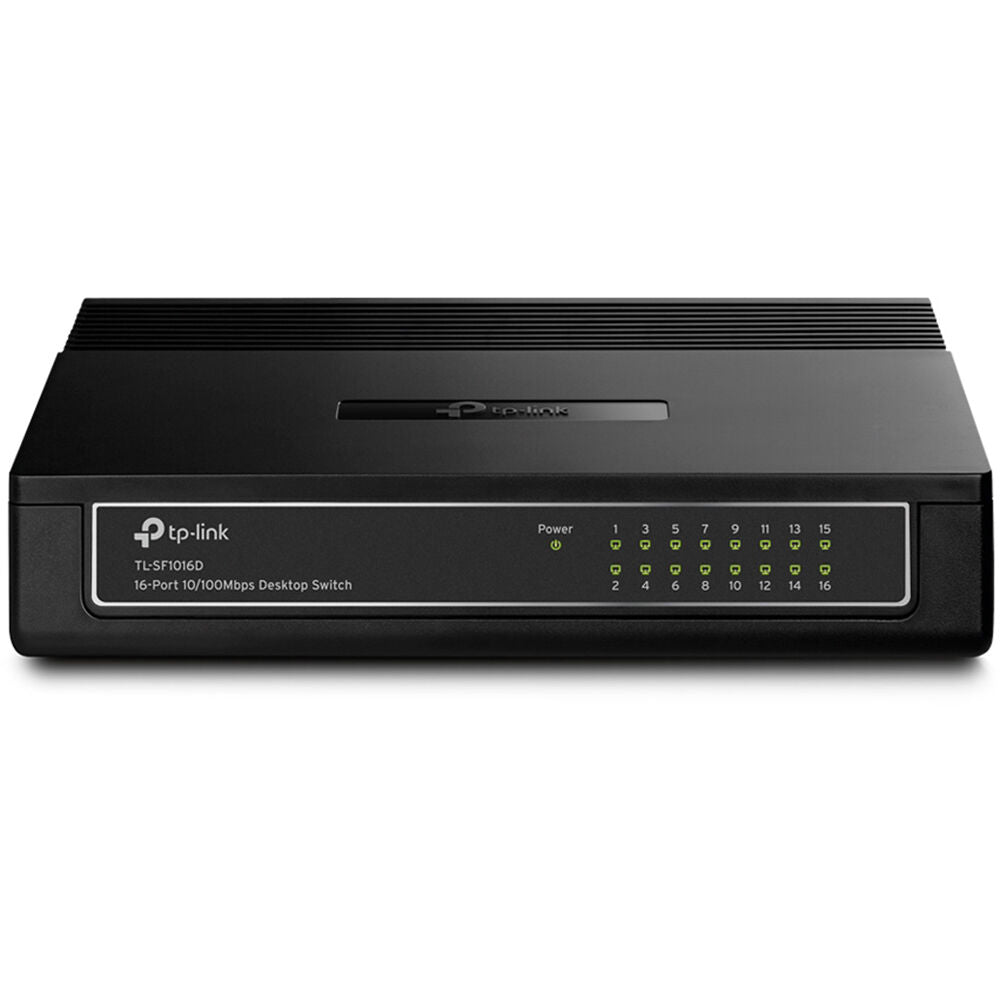

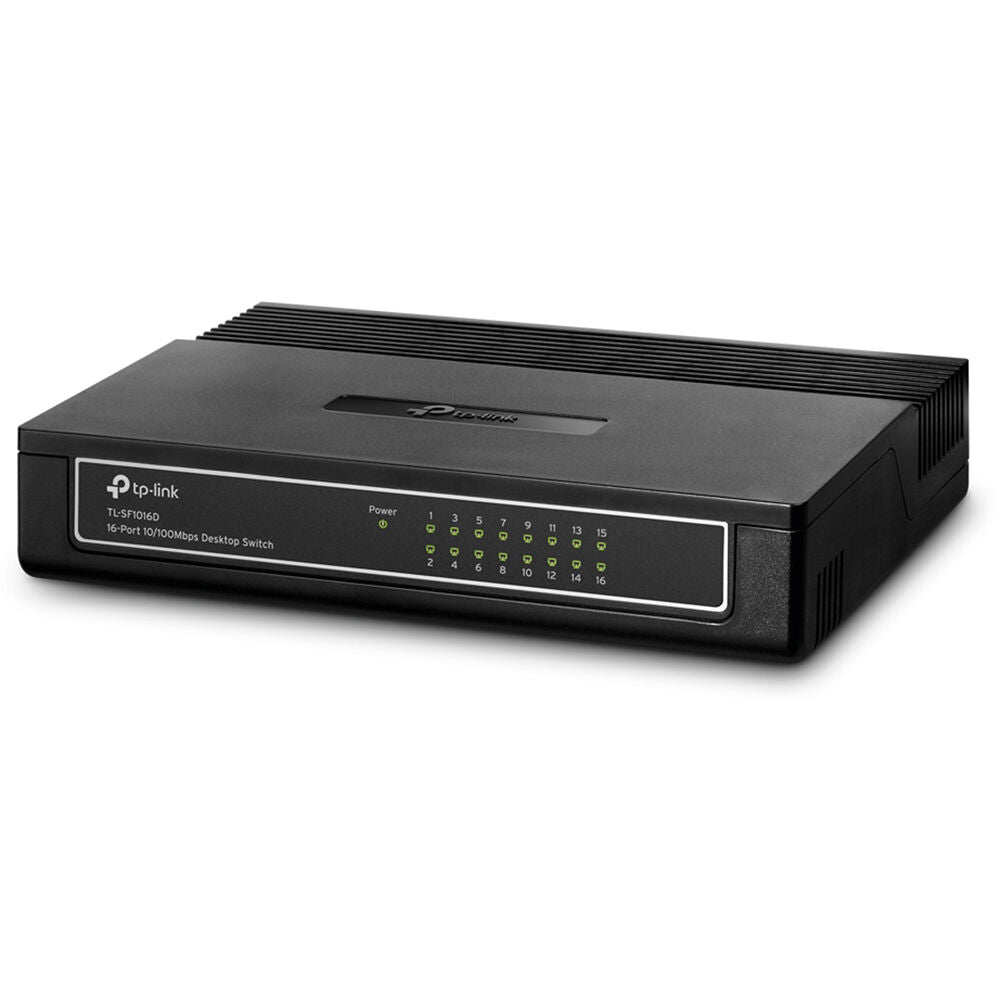

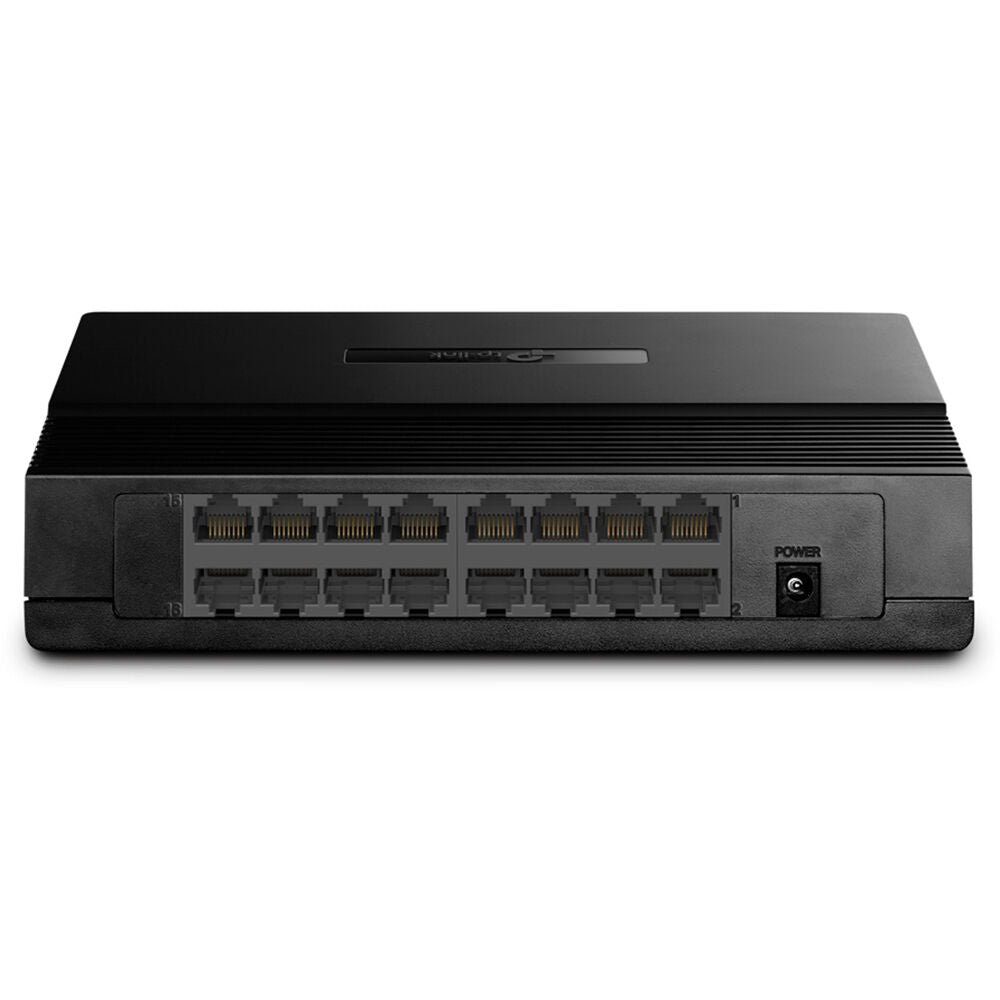

TP-Link TL-SF1016D Overview
Quickly expand your Small Office or Home Office (SOHO) network capacity with the TL-SF1016D 16-Port 10/100 Mb/s Unmanaged Switch from TP-Link. Featuring 16 10/100 Mb/s ports with a 3.2 Gb/s switching capacity and support for up to 2K MAC addresses, this unmanaged switch allows you to quickly connect compatible devices, such as computers, printers, smart TVs, and more, to your network. Each port supports Auto MDI/MDIX function, so you don't need crossover cables or dedicated uplink ports. The TL-SF1016D is also built for high efficiency with IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode help to manage traffic congestion. Additionally, energy-efficient technologies help to reduce energy costs by automatically adjusting the switch's power consumption according to each port's link status and connected cable length. With its plug-and-play, fanless design, the TL-SF1016D is built to operate quietly while mounted on a desk or wall.
![]()
UPC: 845973020293
In the Box
- TP-Link TL-SF1016D 16-Port 10/100 Mb/s Unmanaged Switch
- Power Adapter
- Limited 2-Year Warranty
TP-Link TL-SF1016D Specs
Interfaces
| Ports |
16 x 10/100 Mb/s Ethernet (RJ45) |
Protocols
| Supported Protocols |
Auto-MDIX/MDI |
| Transmission Method |
Store-and-Forward |
| MAC Address Table Size |
2K |
Standards
| Supported IEEE Standards |
802.3, 802.3u, 802.3x |
Performance
| Switching Bandwidth |
3.2 Gb/s |
Electrical
| Power Draw |
3.2 W |
| DC Input Power |
5 VDC at 0.6 A |
| Power Supply Type |
External |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
10 to 90% |
| Storage Temperature |
-40 to 140°F / -40 to 60°C |
| Storage Humidity |
5 to 90% |
General
| Cooling System |
Passive |
| Material of Construction |
Plastic |
| Indicator Lights |
Link/Activity, Power |
| Dimensions |
7.9 x 5.6 x 1.6" / 200 x 142 x 40 mm |
Packaging Info
| Package Weight |
1.295 lb |
| Box Dimensions (LxWxH) |
11.2 x 8.8 x 2.7" |
