Description
- IEEE 802.3, 3u, 3af Standards Compliant
- Gigabit Speed Support
- 1 x Auto-Negotiation PoE Port
- 1 x Auto-Negotiation LAN Port
- 1 x Power Socket (DC OUT)
- Auto Sensing Algorithm
- Plug & Play Compatible
- Power LED Indicator

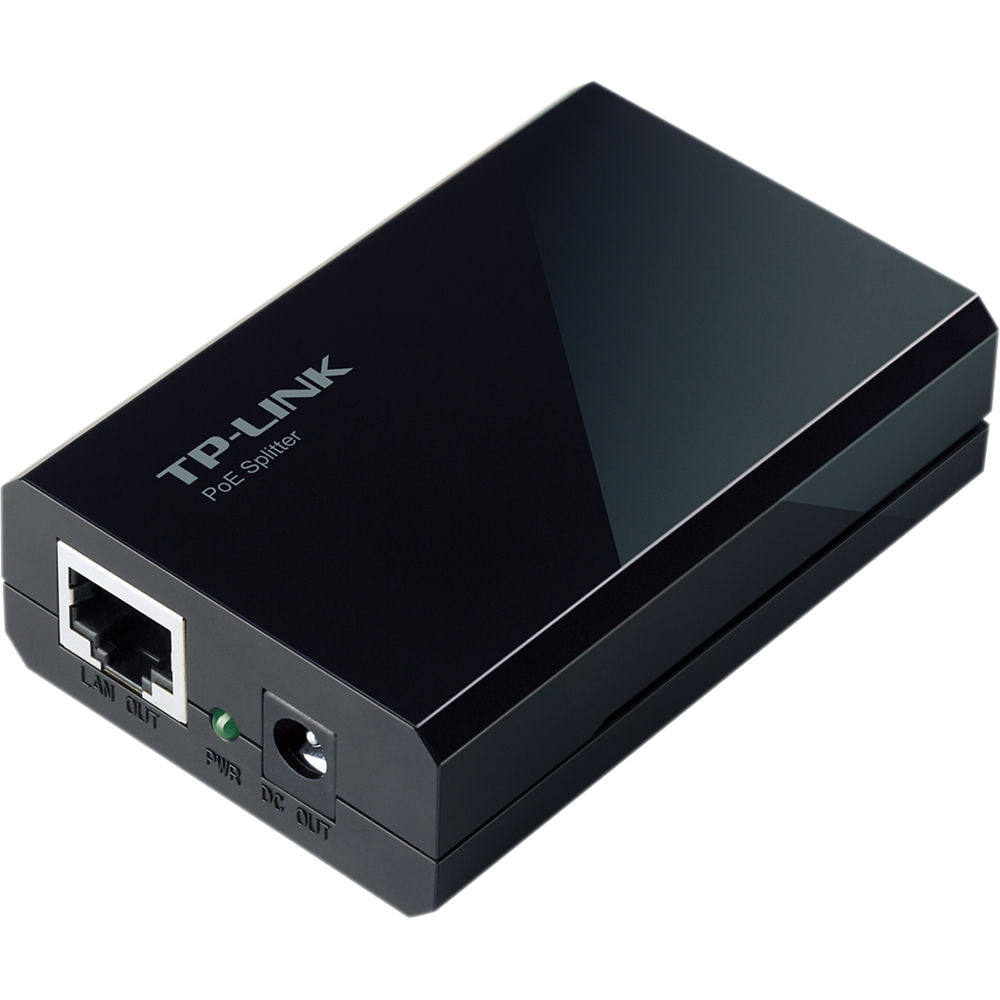

The TL-POE10R PoE Splitter from TP-Link is a power over Ethernet compliant device designed to offer cabling to devices such as access points, IP cameras, VoIP equipment, and other PoE compliant devices. Once installed, the network admin has the ability to determine the amount of power offered via a dedicated switch located on the splitter for 12, 9, and 5 VDC.
- Complies with IEEE 802.af standard
- Cost saving, no power cabling for Ethernet network device
- Advanced Auto-Sensing Algorithm enables taking power from 802.3af PSE (power sourcing equipment)

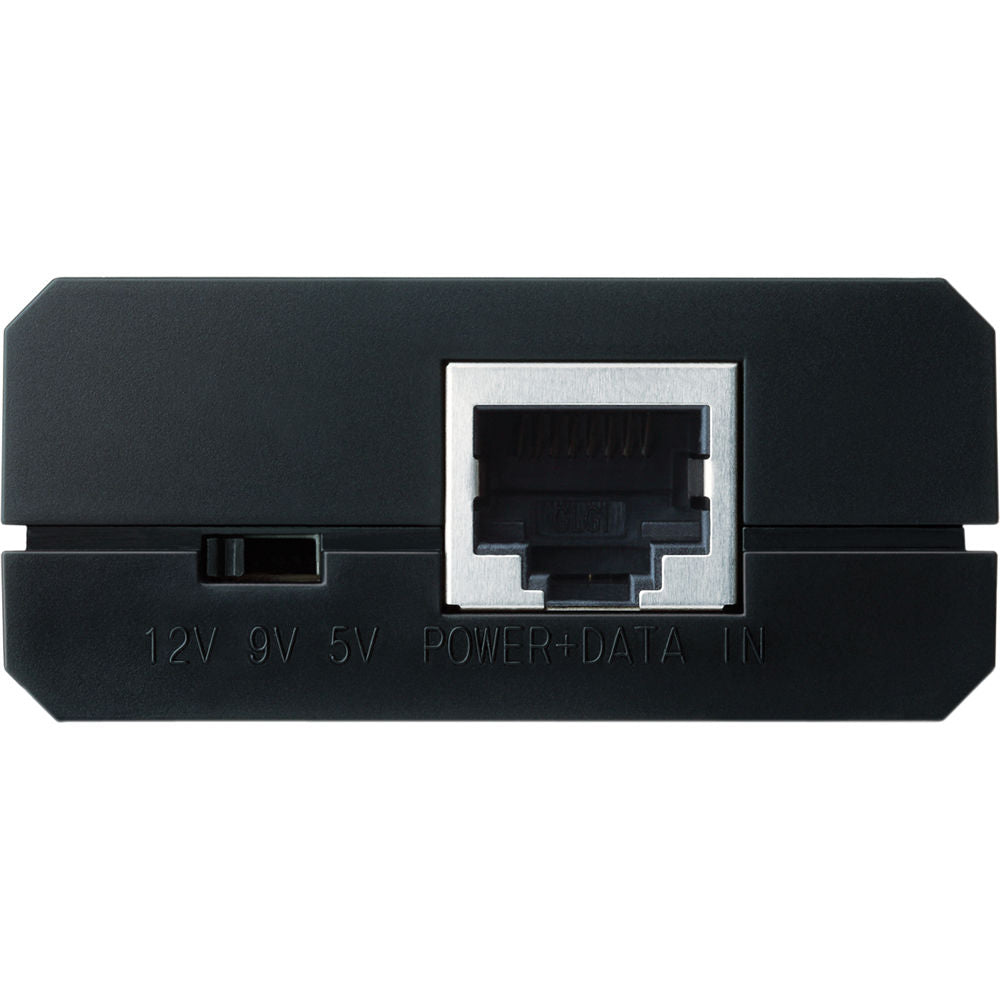

- Adjustable 5, 9, or 12 VDC output with slide switch
- Supplies up to 10W at 5 VDC, 9W at 9 VDC, or 12W at 12 VDC
- High safety with short circuit protection
- Supports power detection and classification
- Auto disconnection for over voltage, under voltage or over current
- Plug & play installation, requires no configuration
UPC: 845973030490
In the Box

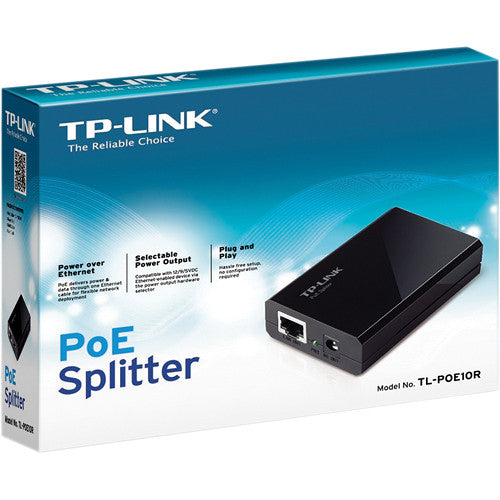

TP-Link TL-POE10R PoE Splitter
TP-Link TL-POE10R Specs

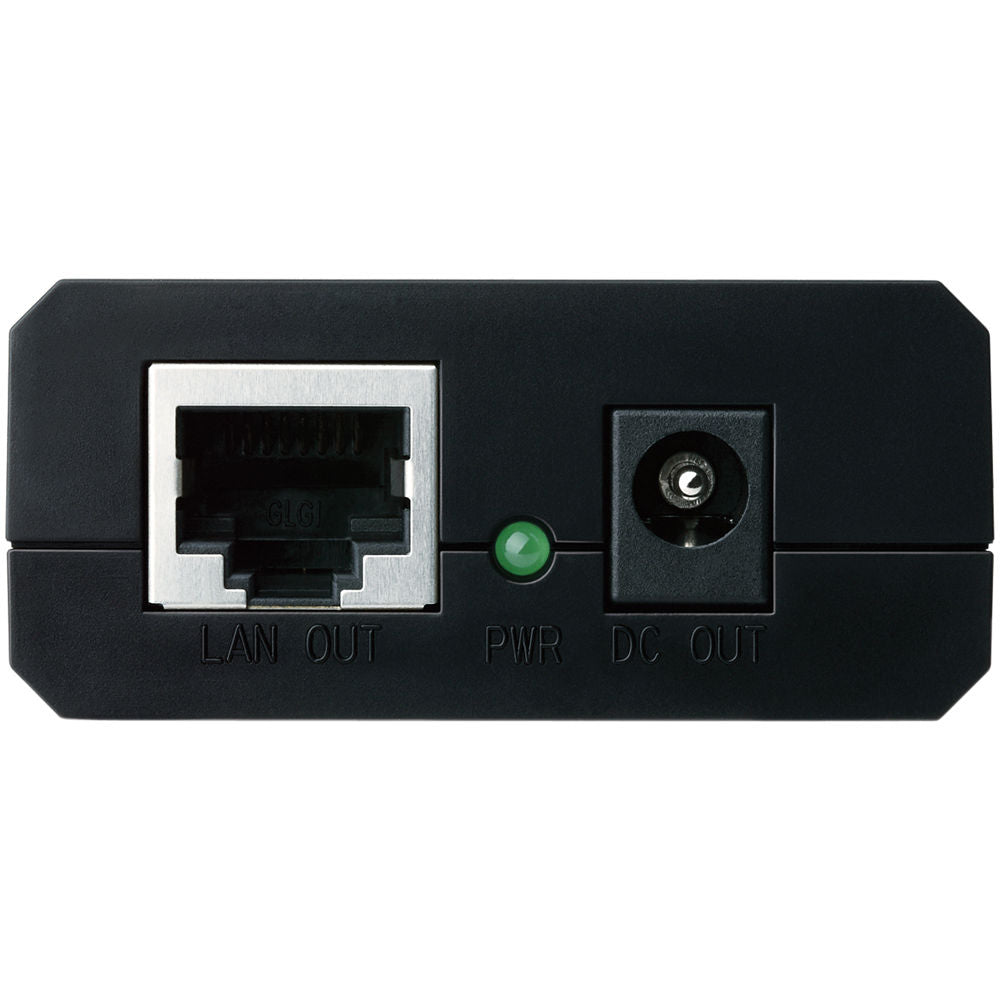

| Ports | 1 x 10/100/1000M Auto-Negotiation RJ45 PoE port (POWER+DATA IN) 1 x 10/100/1000M Auto-Negotiation RJ45 LAN port (LAN OUT) 1 x power socket (DC OUT) |
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3af Power over Ethernet |
| Network Features | 10BASE-T: UTP category 3, 4, 5 cable (maximum 328.08' / 100m) EIA/TIA-568 100 STP (maximum 328.08' / 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 328.08' / 100m) EIA/TIA-568 100 STP (maximum 328.08' / 100m) |
| Functionality | Auto-Sensing Algorithm enables taking power from 802.3af PSE Adjustable 5VDC?9VDC or 12VDC power supply Plug-and-Play |
| LED Indicator | PWR (Green) |
| Certifications | FCC, CE |
| Power | Adjustable output 5VDC/2A?9VDC/1A or 12VDC/1A Supplies up to 11.5W at 10W at 5VDC,9W at 9VDC or 12W at 12VDC Power Consumption |
| Environmental Requirements | Operating Temperature: 32-104°F / 0-40°C Storage Temperature: -40-158°F / -40-70°C Operating Humidity: 10-90% non-condensing Storage Humidity: 5-90% non-condensing |
| Dimensions (W x D x H) | 3.2 x 2.0 x 0.9" / 81 x 52 x 24 mm |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 0.55 lb |
| Box Dimensions (LxWxH) | 8.4 x 6.7 x 2.7" |
