Description
TP-Link EAP655-WALL Overview
- 1Description
- 2Omada Software Defined Networking
- 3Secure Guest Network
- 4Captive Portal
- 5Enterprise Security
- 6Omada App

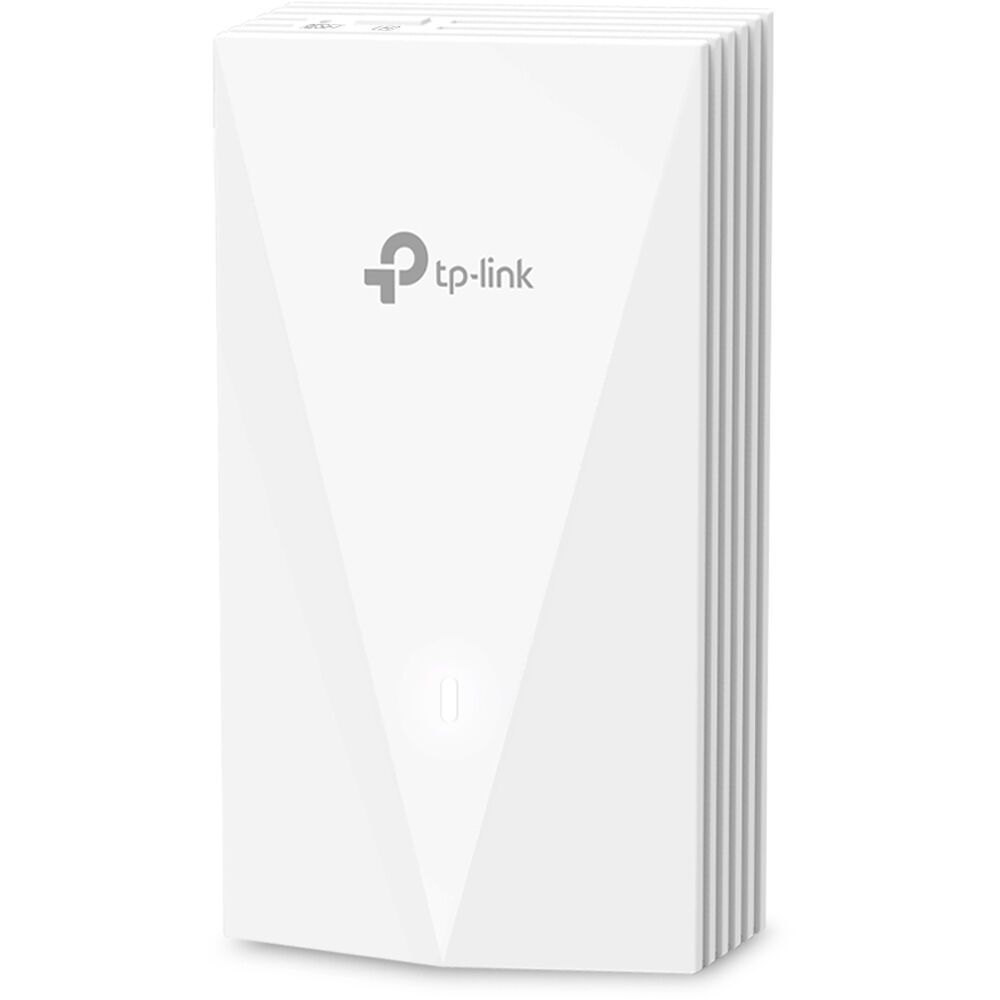

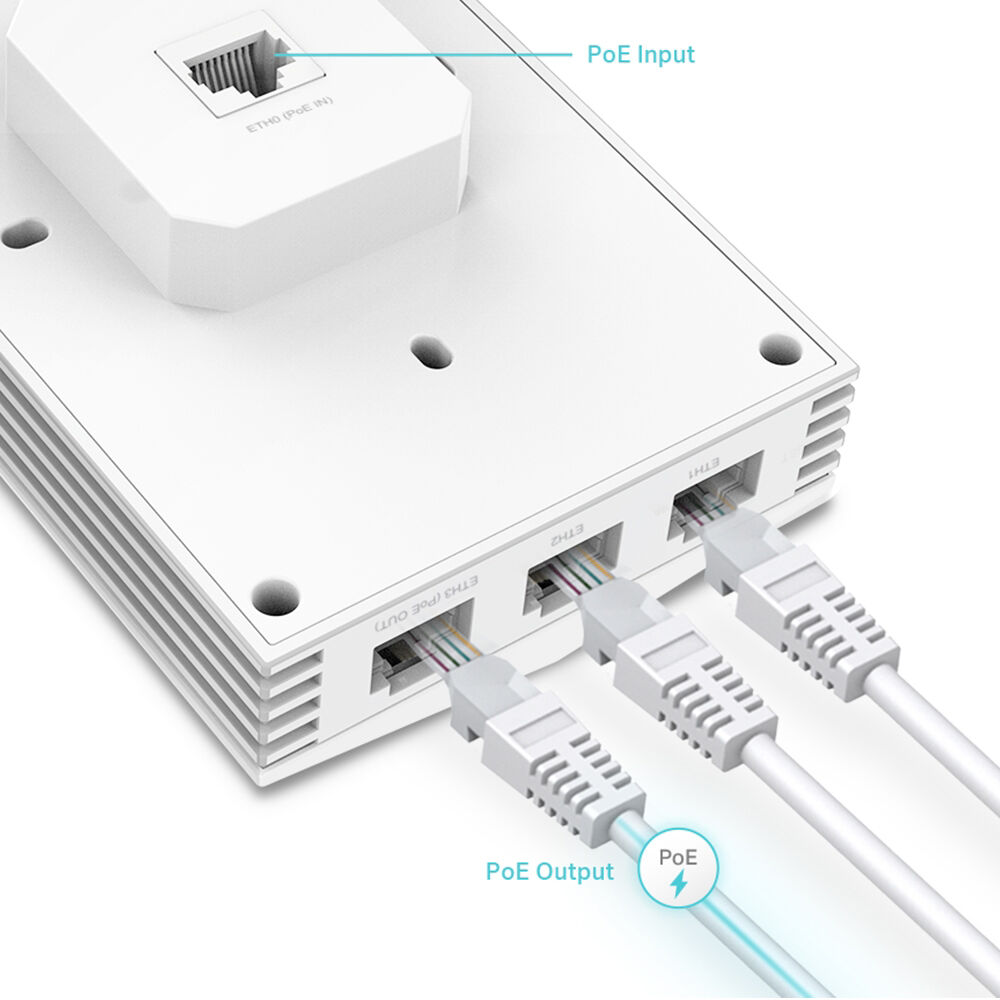

Provide your business with expansive Wi-Fi coverage by integrating the TP-Link Omada EAP655-Wall AX3000 Dual-Band Access Point into your network. This Wi-Fi 6 (802.11ax) access point is designed to be discreetly installed into a standard wall junction box using the included kit, where it can blend with the environment. When its Gigabit Ethernet uplink is connected to a PoE+ compliant switch, this AP provides up to 2976 Mb/s transfer rates over the 2.4 GHz and 5 GHz bands. Omada Mesh compatibility allows you to extend your coverage into hard-to-reach areas by wirelessly daisy chaining multiple Omada access points. Three downlink ports are also available for connecting computers and other Gigabit Ethernet wired devices. One supports 802.3at PoE+ passthrough to operate VoIP phones, printers, security cameras, and more.

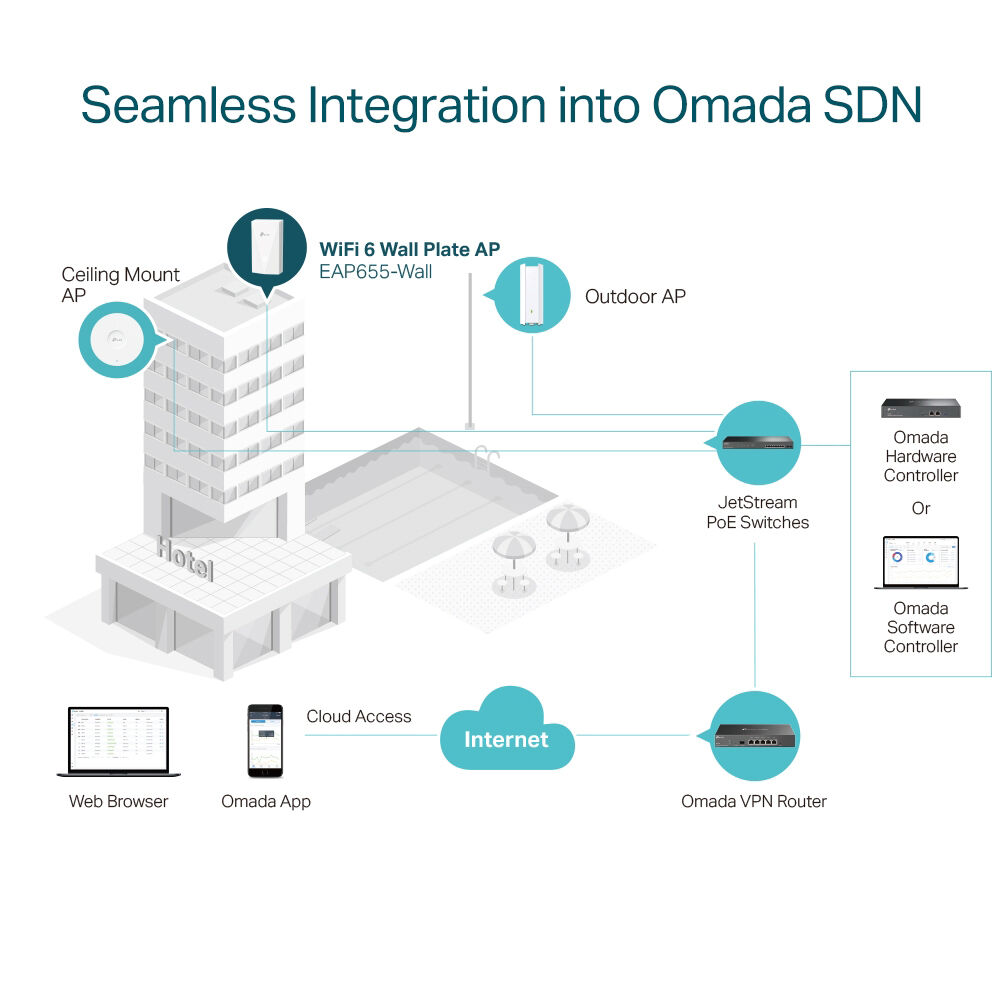

In addition to WPA3 wireless encryption, the Omada EAP655-Wall supports for up to 16 SSIDs with captive portal and guest network support, which allow you to configure safe and secure public Wi-Fi connections. The configure, manage, and monitor your network devices from almost anywhere through the cloud-based Omada Software Defined Networking (SDN) platform using a separate Omada management controller.
In the Box
- TP-Link Omada EAP655-Wall AX3000 Dual-Band PoE+ Compliant Wall Plate Access Point
- Wall Plate Mounting Kits
- Limited Lifetime Warranty
- Description
- Omada Software Defined Networking
- Secure Guest Network
- Captive Portal
- Enterprise Security
- Omada App
TP-Link EAP655-WALL Specs
| Wi-Fi |
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
|
| Throughput |
2976 Mb/s Total
5 GHz: 2402 Mb/s 2.4 GHz: 574 Mb/s |
| Inputs/Outputs |
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Wi-Fi |
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
|
| Transmit Power |
20 to 26 dBm
|
| Supported Protocols |
SNMPv1
SNMPv2c SNMPv3 |
| Antenna Placement |
Internal
|
| Bluetooth |
No
|
| Throughput |
2976 Mb/s Total
5 GHz: 2402 Mb/s 2.4 GHz: 574 Mb/s |
| Inputs/Outputs |
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| USB Sharing Support |
No
|
| Guest Network Support |
Yes
|
| Wireless Security |
WPA, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
|
| Operation Modes |
Access Point
|
| Supported Clients |
100
|
| Max SSIDs Supported |
16
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Omada App Functionality: Adjust Settings, Remote Control, Setup *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
| Supported IEEE Standards |
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.1x, 802.3af, 802.3at
|
| Power Consumption |
?12.6 W
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
| Operating Humidity |
10 to 90%
|
| Storage Humidity |
5 to 90%
|
| Environmental Protection |
No
|
| Certifications |
CE, FCC, RoHS
|
| Mount Options |
Wall
|
| Dimensions |
5.6 x 3.4 x 1.7" / 143 x 86 x 42.6 mm
|
| Package Weight |
0.895 lb
|
| Box Dimensions (LxWxH) |
7.3 x 4.6 x 2.2"
|
