Description
TP-Link EAP613 Overview
- 1Description
- 2General Features
- 3Boosted Network Security
- 4Enhanced Efficiency

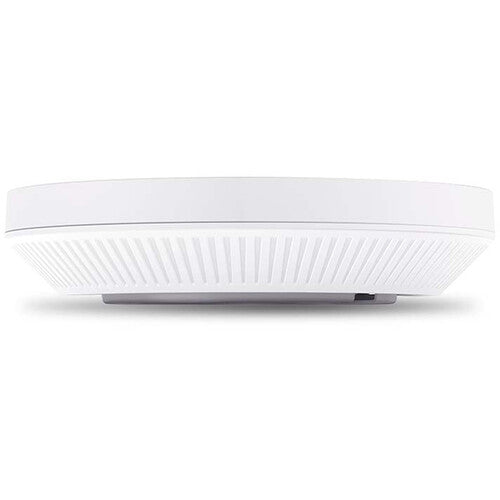

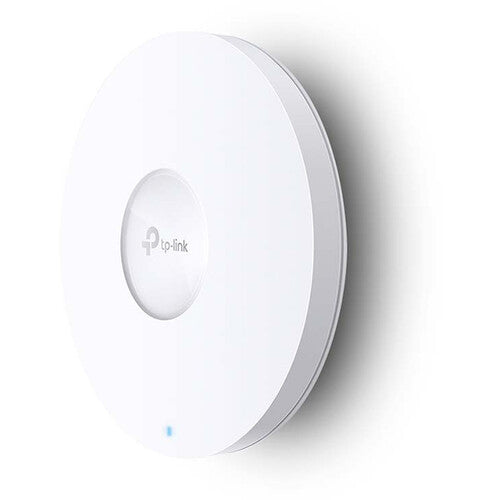

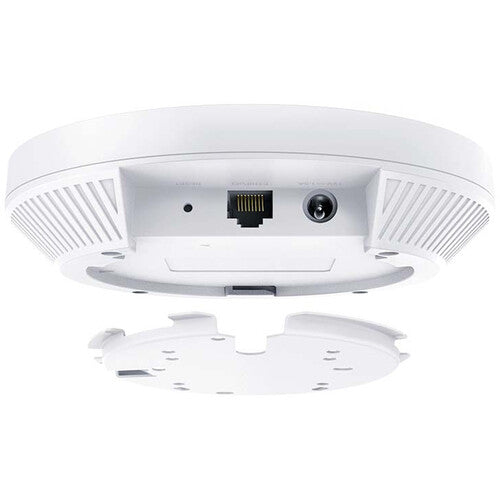

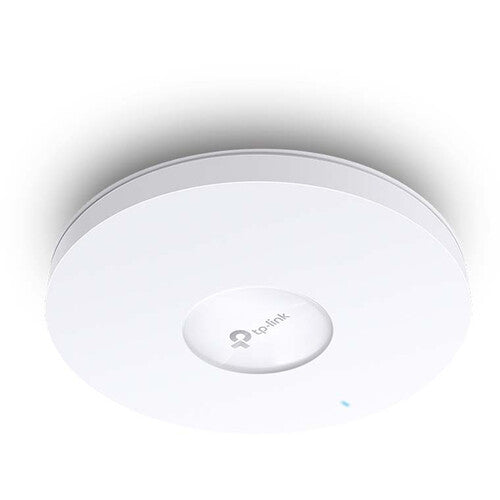

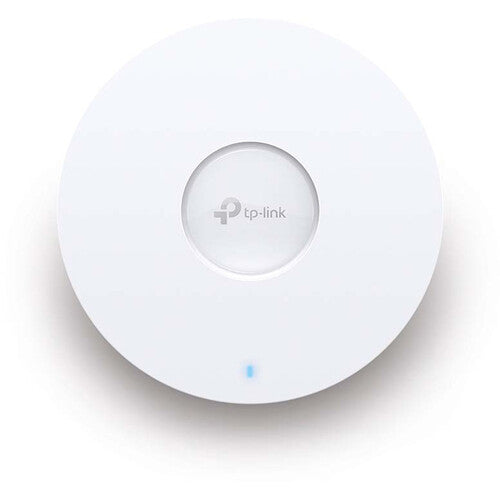

Provide your business with expansive Wi-Fi coverage by integrating the TP-Link Omada EAP613 AX1800 Dual-Band Access Point into your network. Featuring a slim, low-profile design, this Wi-Fi 6 (802.11ax) access point discreetly blends into the environment when mounted onto a wall or ceiling using the included kit. Inside is a powerful omnidirectional antenna that provides up to 1775 Mb/s transfer rates over the 2.4 GHz and 5 GHz bands. Omada Mesh compatibility allows you to extend your coverage into hard-to-reach areas by wirelessly daisy-chaining multiple Omada access points. The PoE+ compliant Gigabit Ethernet uplink port allows you to transfer power and data over a single cable. Alternatively, you can connect a separately purchased DC power adapter.
In addition to WPA3 wireless encryption, the Omada EAP613 supports up to 16 SSIDs with captive portal and guest network support, which allow you to configure safe and secure public Wi-Fi connections. You can configure, manage, and monitor your network devices from almost anywhere through the cloud-based Omada Software Defined Networking (SDN) platform using a separate Omada management controller.
In the Box
- TP-Link Omada EAP613 AX1800 Dual-Band Access Point
- Ceiling / Wall Mounting Kit
- Limited Lifetime Warranty
- Description
- General Features
- Boosted Network Security
- Enhanced Efficiency
TP-Link EAP613 Specs
| Wi-Fi |
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
|
| Throughput |
1775 Mb/s Total
5 GHz: 1201 Mb/s 2.4 GHz: 574 Mb/s |
| Inputs/Outputs |
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+
|
| Wi-Fi |
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
|
| Antenna Gain |
4 to 5 dBi
|
| Transmit Power |
20 to 25 dBm
|
| Supported Protocols |
SNMPv1
SNMPv2c SNMPv3 |
| Antenna Placement |
Internal
|
| Bluetooth |
No
|
| Throughput |
1775 Mb/s Total
5 GHz: 1201 Mb/s 2.4 GHz: 574 Mb/s |
| Inputs/Outputs |
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+
|
| USB Sharing Support |
No
|
| Guest Network Support |
Yes
|
| Wireless Security |
WPA, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
|
| Lock Slot |
No
|
| Operation Modes |
Access Point
|
| Max SSIDs Supported |
16
|
| Mobile App Compatible |
Yes
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Supported IEEE Standards |
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.1x, 802.3at
|
| DC Input Power |
12 VDC at 1 A
|
| Power Consumption |
?11 W
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
| Operating Humidity |
10 to 90%
|
| Storage Humidity |
5 to 90%
|
| Environmental Protection |
No
|
| Certifications |
CE, FCC, RoHS
|
| Mount Options |
Wall, Ceiling
|
| Dimensions |
6.3 x 6.3 x 1.3" / 160 x 160 x 33.6 mm
|
| Package Weight |
1.56 lb
|
| Box Dimensions (LxWxH) |
9.6 x 9.1 x 2.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
