Expand your business's Wi-Fi coverage, cutting through high-density spaces with the EAP620 HD V3 AX1800 Wireless Dual-Band Gigabit Access Point from TP-Link. Featuring a thin and compact design that discreetly blends into most environments when mounted on a wall, ceiling, or junction box using one of the included kits, this dual-band 802.11ax Wi-Fi access point delivers up to 1775 Mb/s wireless speeds over the 2.4 GHz and 5 GHz frequencies. With 802.11k/v roaming technology, users automatically switch to the access point with the strongest signal as they move, helping to ensure uninterrupted connections. With support for both 802.3at PoE+ and passive PoE through its Gigabit Ethernet port, you can transfer both data and power to the EAP620 HD V3 with a single cable for flexible installation. A DC power adapter is also included. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.

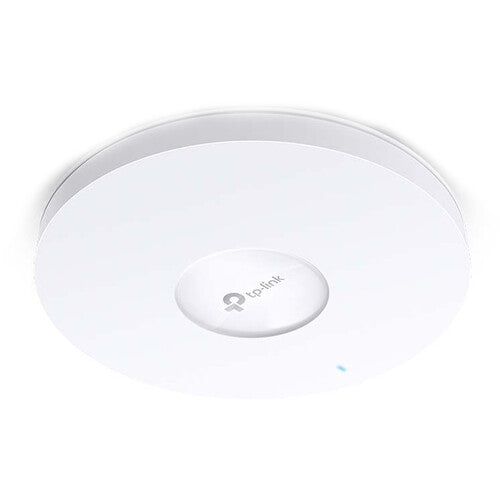

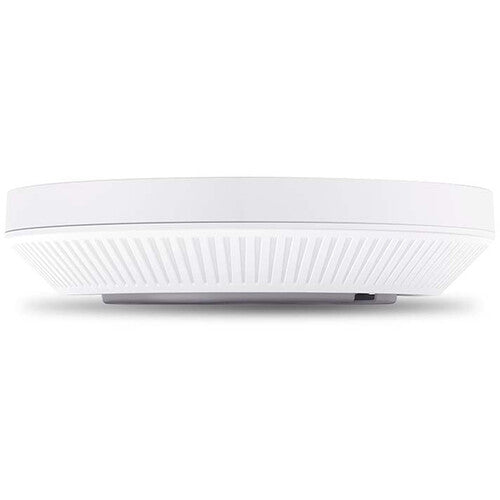

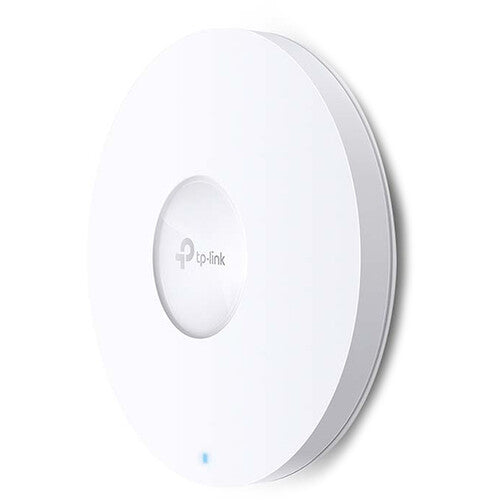

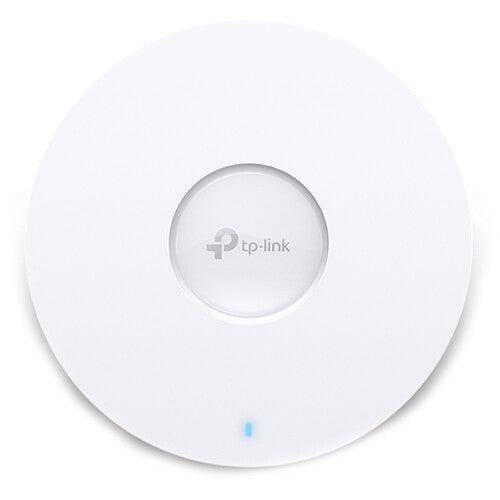

Measuring 1.3 inches thick with a 6.3 inch diameter, this disc-shaped access point may be placed almost anywhere.

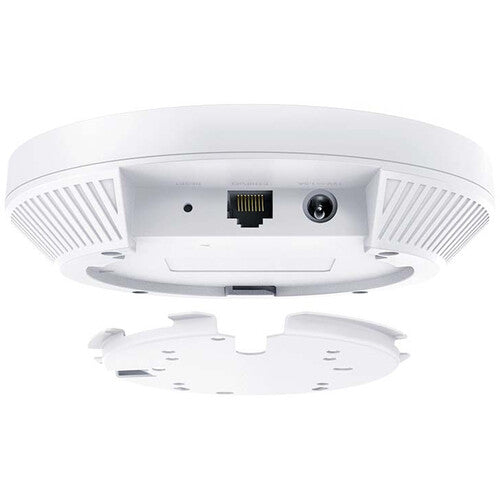

The EAP620 HD V3 features an elegant design that blends into most environments when mounted on a ceiling, wall, or junction box using one of the included kits. Simply push the access point into the mount, then rotate it to securely lock it in place.
This 802.11ax Wi-Fi access point includes powerful internal antennas that are designed to overcome high-density environments, using AI-drive optimization, beamforming, MU-MIMO, OFDMA, load balance, and band steering technologies to efficiently deliver up to 1775 Mb/s over the 2.4 GHz and 5 GHz wireless frequencies.
Support for 802.11k/v allows users' connections to automatically switch to access points with the strongest signal, allowing for uninterrupted online experiences while moving.
The EAP620 HD V3 supports both 802.3at PoE+ and passive PoE through its Gigabit Ethernet port for flexible installation. A 12V DC power adapter is included.
The cloud-based Omada platform allows you to configure, manage, and monitor all your supported network devices from a single interface, which can be accessed virtually anywhere at any time.
Your wireless signal is protected with WPA3 encryption. You can configure up to 16 separate SSIDs, providing different levels of access to employees and guests.
In the Box
- TP-Link EAP620 HD V3 AX1800 Wireless Dual-Band Gigabit Access Point
- Power Adapter
- Ceiling & Wall Mounts
Table of Contents
- Description
- Slim Design
- Versatile Mounting
- Fast, Reliable Wi-Fi
- Seamless Roaming
- Powered Up
- Omada Cloud
- Security
TP-Link EAP620 HD V3 Specs
Wireless
| Wi-Fi |
Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) |
| Number of Antennas |
2 |
| MU-MIMO Support |
2 x 2 |
| Antenna Gain |
4 to 5 dBi |
| Transmit Power |
20 to 25 dBm |
| Supported Protocols |
SNMPv1
SNMPv2c
SNMPv3
SSID |
| Antenna Placement |
Internal |
| Bluetooth |
None |
| Throughput |
1800 Mb/s Total
5 GHz: 1201 Mb/s
2.4 GHz: 574 Mb/s |
Interface
| Inputs/Outputs |
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ |
| USB Sharing Support |
No |
Security
| Guest Network Support |
Yes |
| Wireless Security |
WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise |
| Lock Slot |
No |
Management
| Operation Modes |
Access Point |
| Max SSIDs Supported |
16 |
Hardware
| Supported IEEE Standards |
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11k, 802.11n, 802.11v, 802.1x, 802.3at |
Electrical
| DC Input Power |
12 VDC at 1.5 A |
| Power Consumption |
?14.9 W |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-40 to 158°F / -40 to 70°C |
| Operating Humidity |
10 to 90% |
| Storage Humidity |
5 to 90% |
General
| IP Rating |
None |
| Mount Options |
Wall, Ceiling |
| Dimensions |
6.3 x 6.3 x 1.3" / 160 x 160 x 33.6 mm |
Packaging Info
| Package Weight |
1.785 lb |
| Box Dimensions (LxWxH) |
9.6 x 9 x 2.6" |
