Description
TP-Link EAP223 Overview
- 1Description
- 2Fast Wi-Fi
- 3Omada SDN
- 4Secure Guest Network
- 5Multiple PoE Options
- 6Omada App

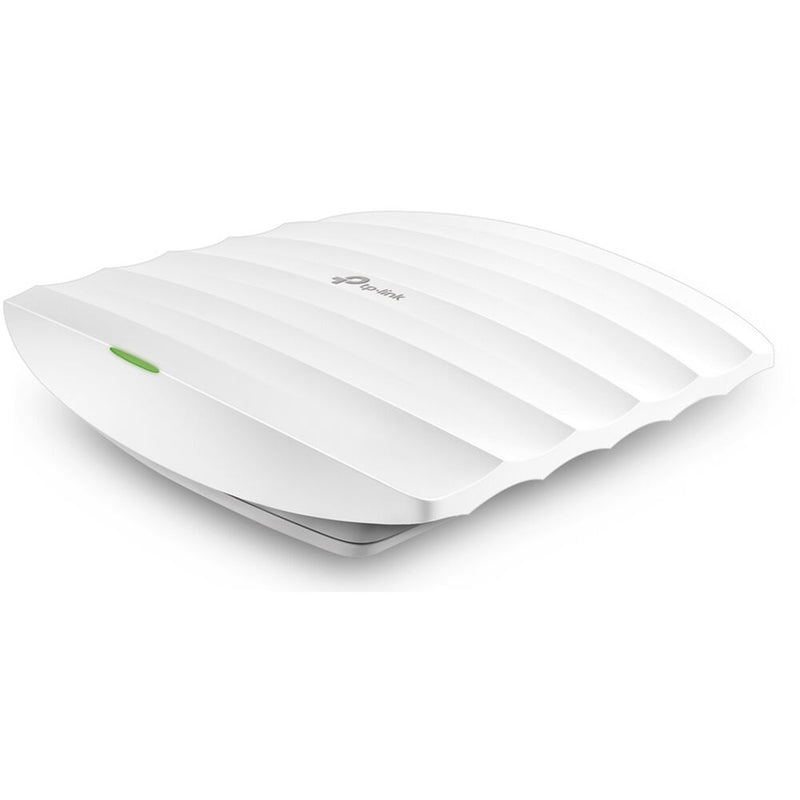

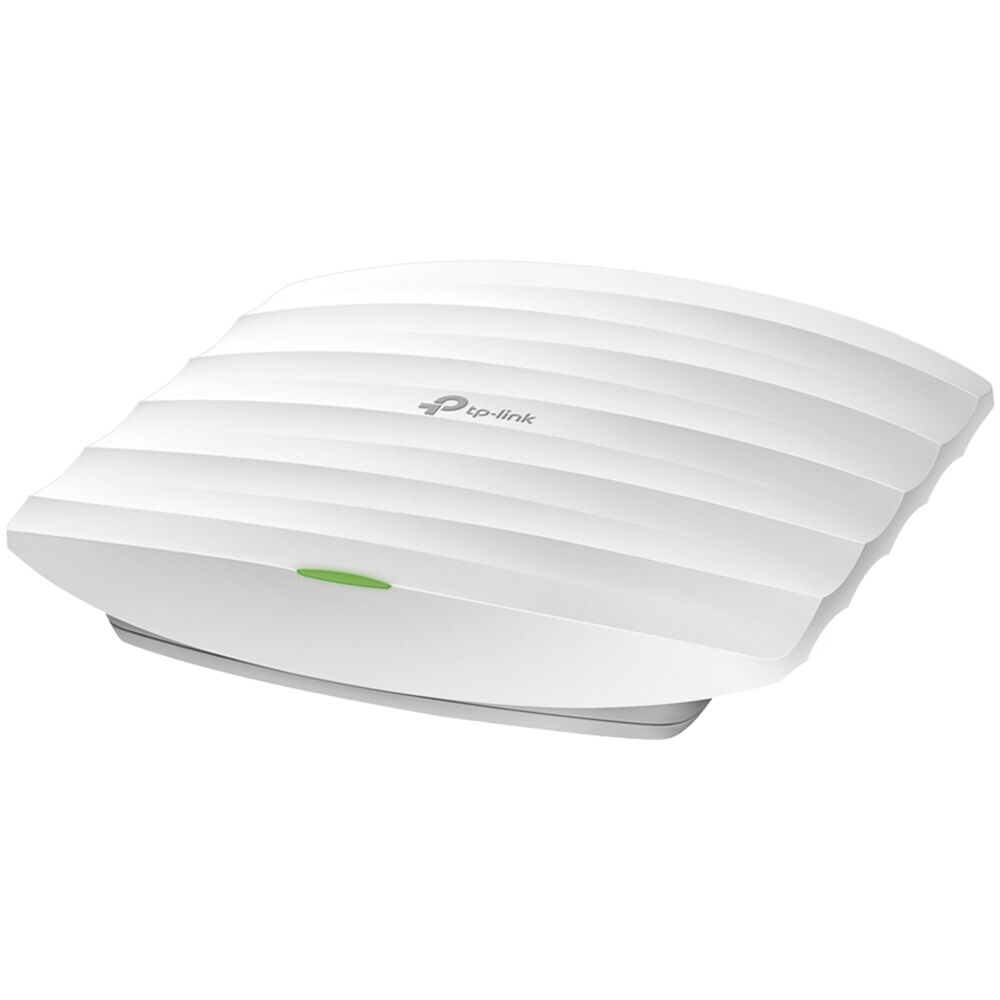

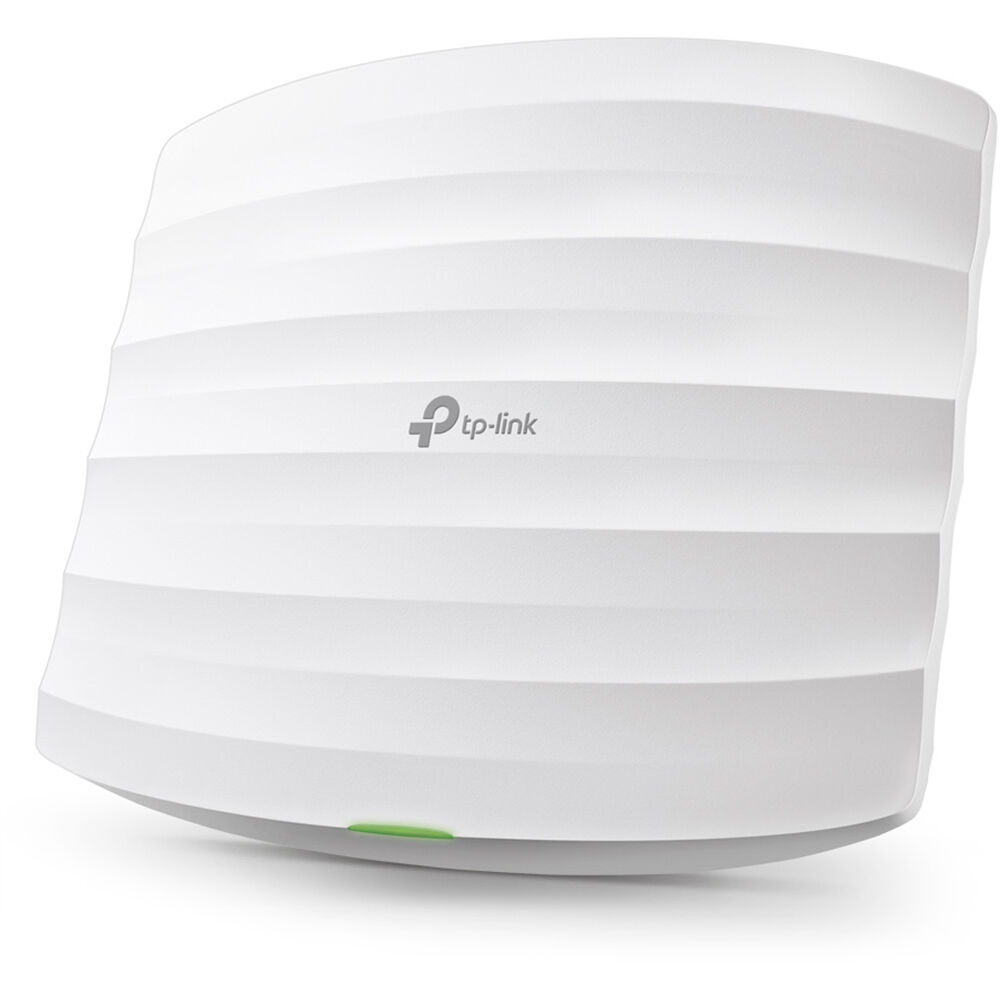

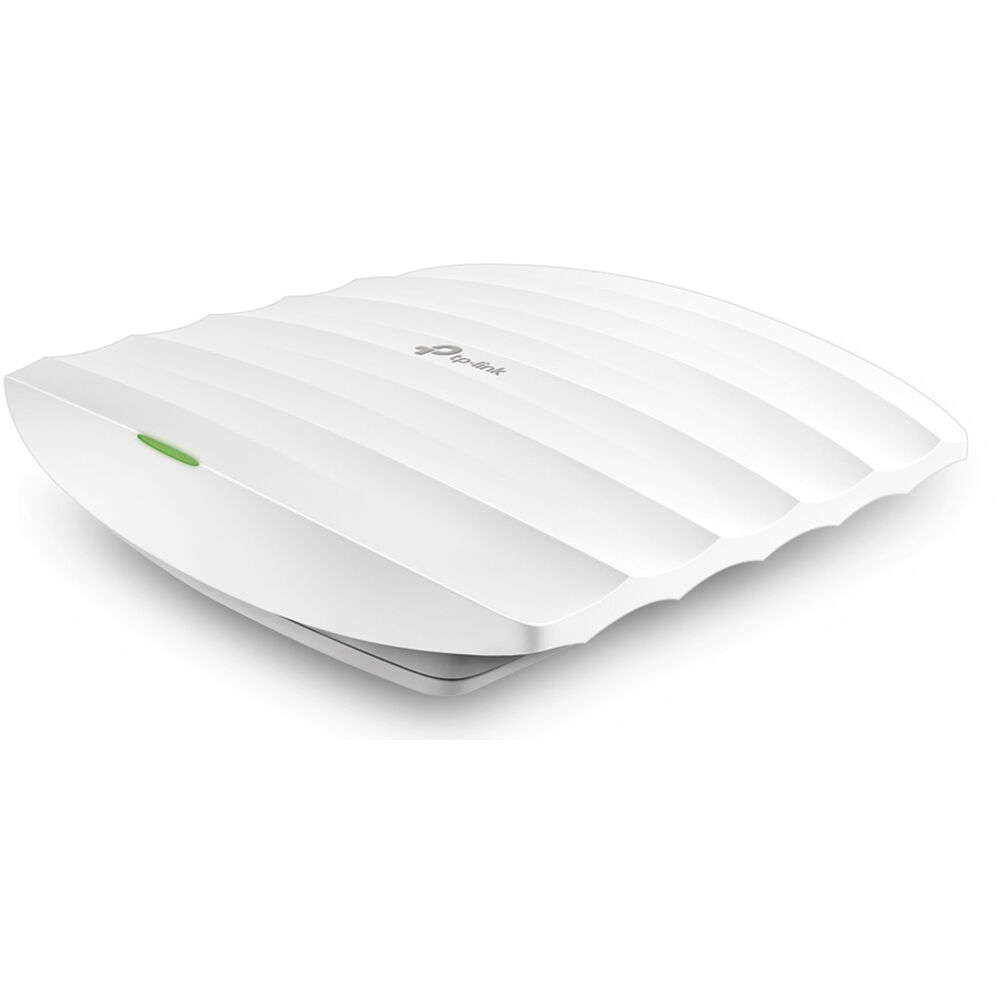

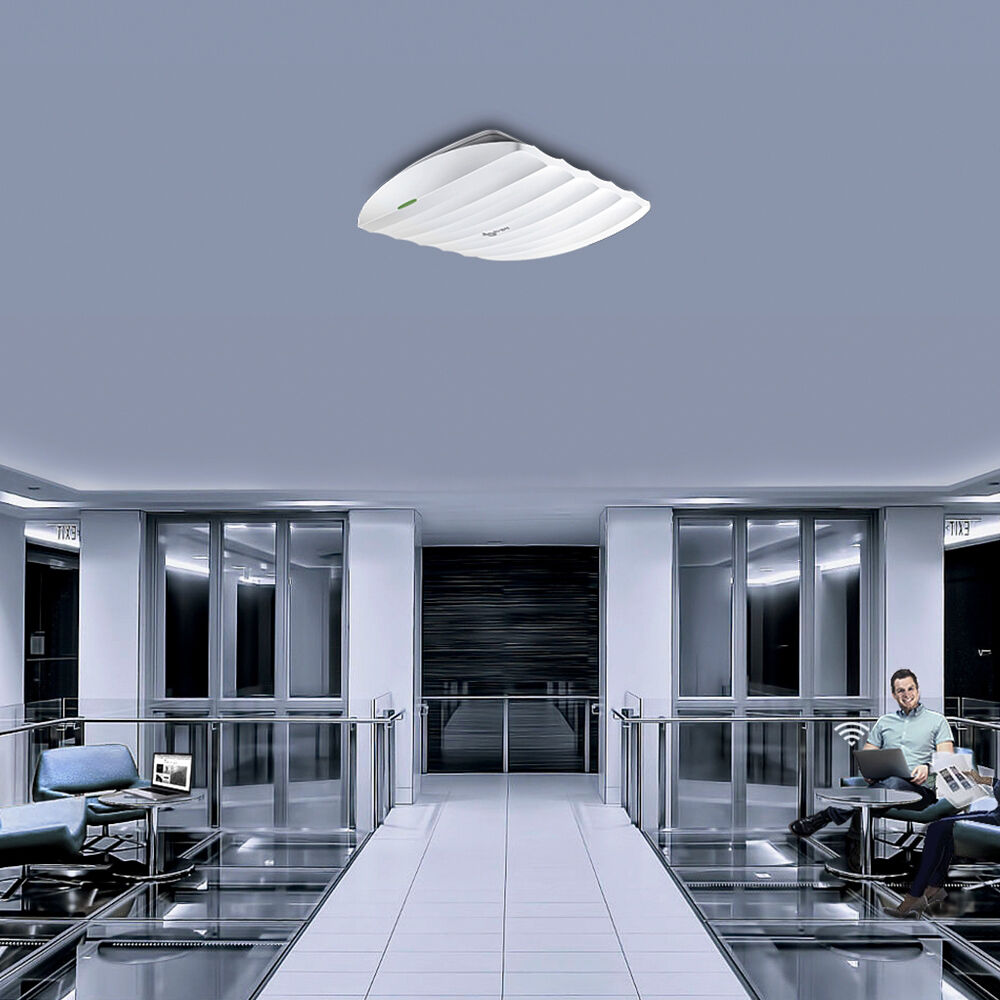

Quickly expand your business's wireless coverage with the EAP223 AC1350 Wireless Dual-Band Access Point from TP-Link. This low-profile Wi-Fi 5 (802.11ac) Wave 2 access point delivers up to 1317 Mb/s transfer speeds over the 2.4 and 5 GHz bands with compatible devices. Connect the access point's Gigabit Ethernet port to an 802.3af or passive PoE compatible switch to deliver power and data over a single cable. Use the included kits to mount this access point to a wall or ceiling, where it's designed to blend into most environments.
The cloud-based Omada SDN platform provides centralized management and other features. A secure guest network and support for up to 16 SSIDs help to protect your network. You can manage your network from almost anywhere from the Omada mobile app.
In the Box
- TP-Link EAP223 AC1350 Wireless Dual-Band Access Point
- Mounting Kits
- Limited Lifetime Warranty
- Description
- Fast Wi-Fi
- Omada SDN
- Secure Guest Network
- Multiple PoE Options
- Omada App
TP-Link EAP223 Specs
| Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support
|
| Throughput |
1317 Mb/s Total
5 GHz: 867 Mb/s 2.4 GHz: 450 Mb/s |
| Inputs/Outputs |

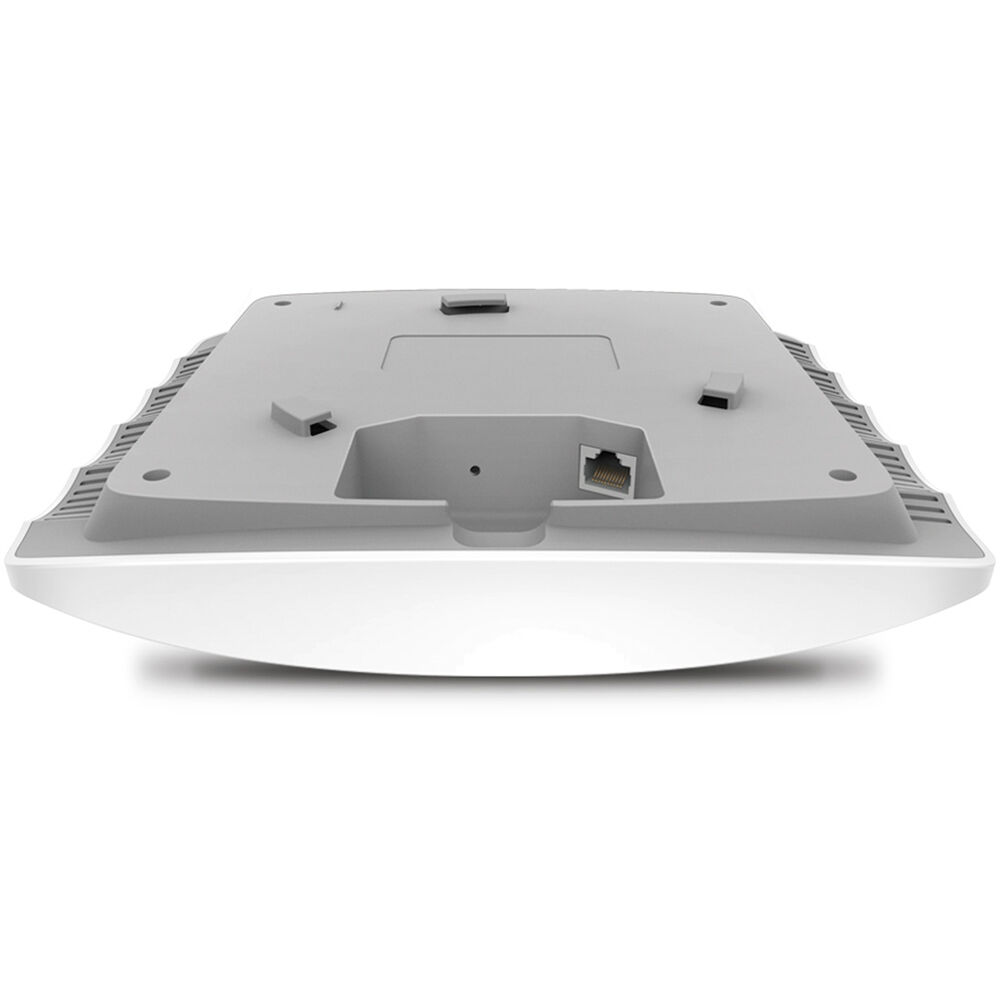

1 x RJ45 Gigabit Ethernet (WAN) PoE
|
| Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support
|
| Number of Antennas |
3
|
| Antenna Gain |
4 to 5 dBi
|
| Transmit Power |
20 to 24 dBm
|
| Supported Protocols |
SSID
WMM |
| Antenna Placement |
Internal
|
| Bluetooth |
No
|
| Throughput |
1317 Mb/s Total
5 GHz: 867 Mb/s 2.4 GHz: 450 Mb/s |
| Inputs/Outputs |
1 x RJ45 Gigabit Ethernet (WAN) PoE
|
| Guest Network Support |
Yes
|
| Wireless Security |
No
|
| Lock Slot |
No
|
| Operation Modes |
Access Point, Mesh, Multi-SSID
|
| Max SSIDs Supported |
16
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Omada Functionality: Adjust Settings, Remote Control, Setup, View Live Feed |
| Media Card Reader |
Yes
|
| Supported IEEE Standards |
802.11a, 802.11ac, 802.11b, 802.11g, 802.11n
|
| Power Consumption |
12.6 W
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
| Operating Humidity |
10 to 90%
|
| Storage Humidity |
5 to 90% (Non-Condensing)
|
| Environmental Protection |
No
|
| Certifications |
CE, FCC, RoHS
|
| Mount Options |
Wall, Ceiling
|
| Dimensions |
8.1 x 7.1 x 1.5" / 20.6 x 18 x 3.8 cm
|
| Package Weight |
1.62 lb
|
| Box Dimensions (LxWxH) |
13.6 x 9.4 x 2.4"
|
