Description
Tote Vision LED-715-4KIP Overview

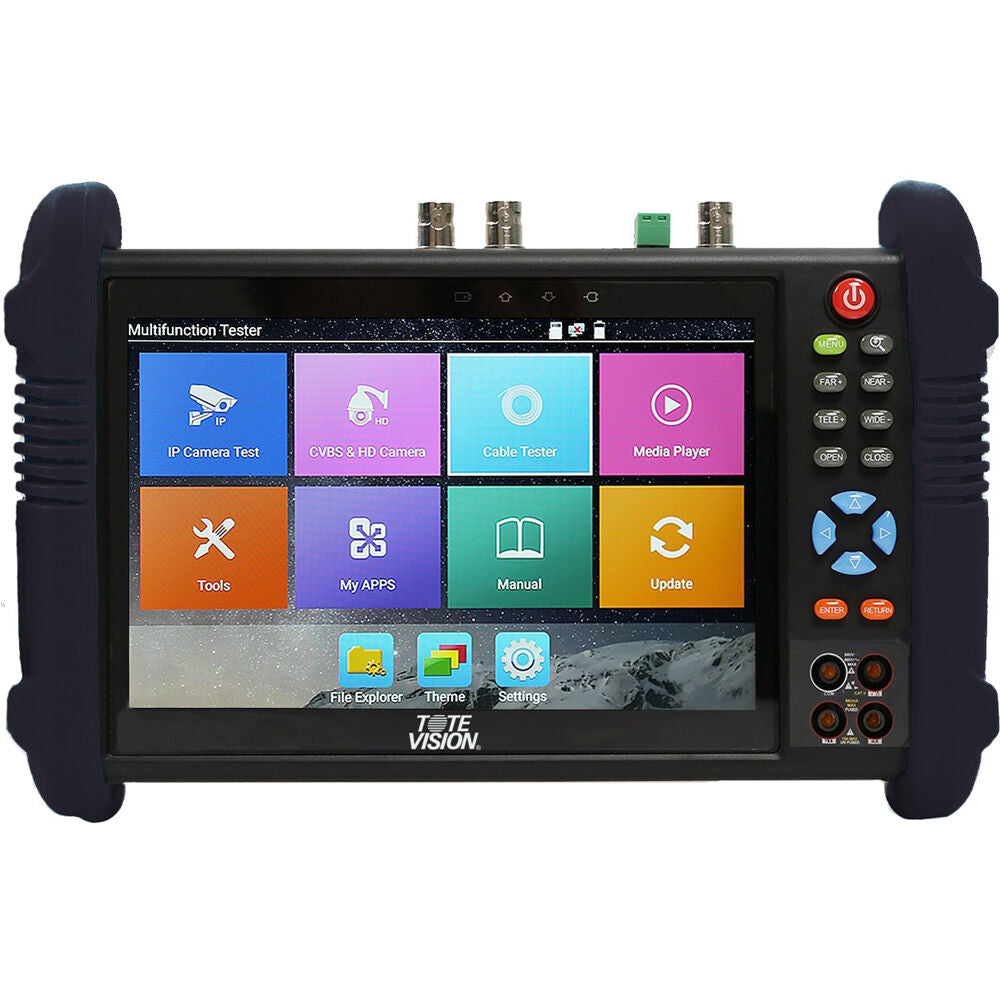

Ensure your cameras and video gear are matched and balanced during installation with the 7" IP and Analog 4K Camera Test Monitor from Tote Vision. The monitor is a camera tester designed for the maintenance and installation of IP and analog cameras, as well as other security/surveillance equipment. This tester has a 7" capacitive touchscreen with a 1280 x 800 resolution. Updated from the LED-710-4KIP, the LED-715-4KIP test monitor comes with an integrated multimeter and a cabling tracer tool with an integrated terminator.

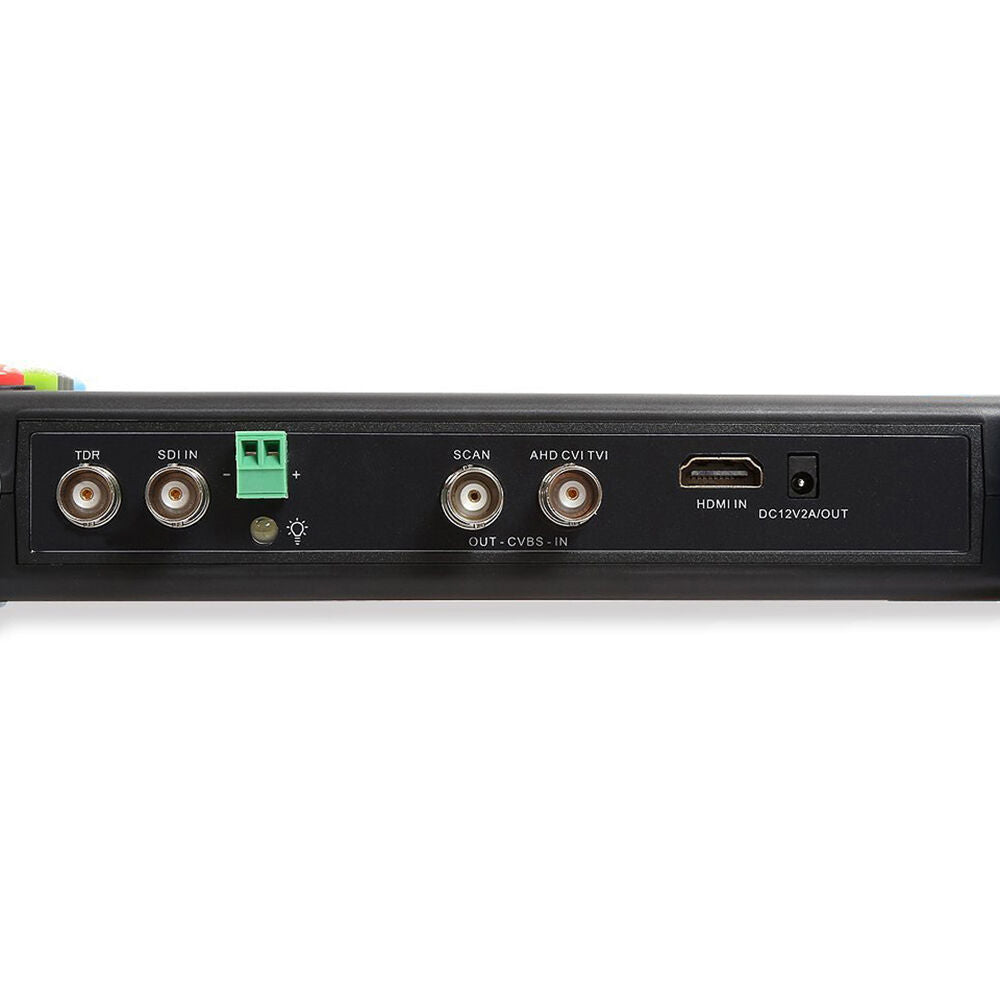

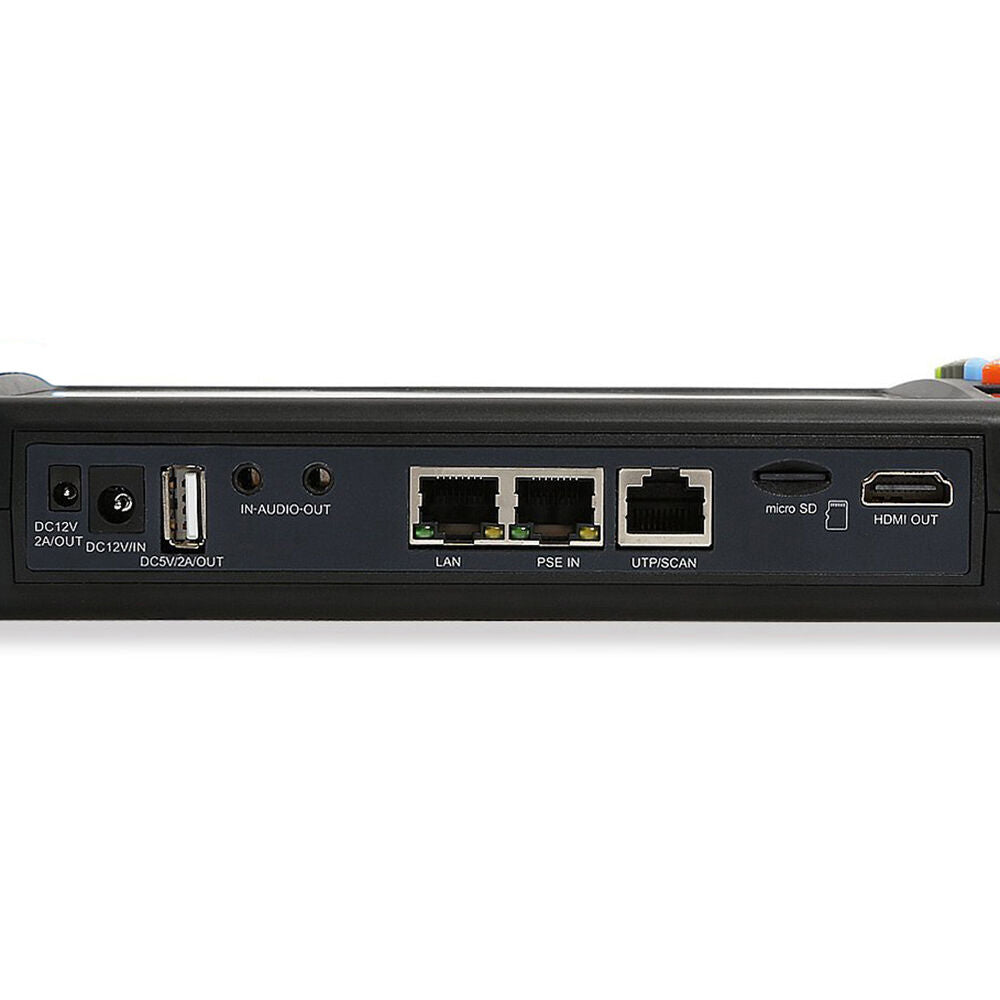

The tester is equipped with an HDMI 4K input, HDMI 1080p monitoring output, a LAN port, shared CVBS and TVI/CVI/AHD inputs, and an SDI input. Built-in Wi-Fi and LAN enable the device to receive images from networked cameras, and it also features a built-in PTZ controller that utilizes ONVIF and serial control protocols. Other features include H.264/265 streaming support, 3.5mm analog audio input/output, and an NTSC/PAL color bar generator.
The monitor runs on a Linux-based 1.2 GHz quad-core processor using Android 5.1 with 1GB RAM, and an integrated microSD slot that supports cards up to 32GB�an 8GB microSD card is included. Power options include a rechargeable lithium-ion battery that delivers up to 10 hours of battery life on a full charge, PoE support, and both USB and DC power input and output options.
In the Box
- Tote Vision 7" IP and Analog 4K Camera Test Monitor
- 8GB MicroSD Card
- Cabling Tracer Tool with Integrated Terminator
- Limited 3-Year Warranty
Tote Vision LED-715-4KIP Specs
| Display Type | 7" IPS LCD Capacitive Touchscreen |
| Display Resolution | 1280 x 800 |
| CPU | 1.2 GHz, Quad-Core |
| Operating System | Android 5.1 |
| RAM | 1 GB |
| Storage | 8 GB Flash |
| SD Card Slot | 1 x microSD Slot, 32 GB Maximum |
| Video Card | Mali 400 |
| Wireless | 802.11 b/g/n; Can Create Wi-Fi Hotspot |
| Color Bar Generator | Yes, NTSC and PAL |
| Video Format Support | TVI: Up to 2560 x 1944p12.5 CVI: Up to 2560 x 1944p30 SDI: Up to 1080p30, 50/60 Hz HDMI: Up to 4K30 Input, Up to 1080p Output |
| Video Codec Support | H.264 and H.265 |
| Video Inputs | 1 x BNC CVBS 1 x BNC SDI 1 x HDMI 1.4 |
| Video Outputs | 1 x BNC CVBS, Scan 1 x HDMI 1.4 |
| Audio Input | 1 x 3.5 mm Analog |
| Audio Output | 1 x 3.5 mm Analog |
| Other I/O | 1 x RJ45 LAN Input/Output, ONVIF and RTSP 1 x RJ45 PSE Input 1 x RJ45 UTP/Scan |
| PoE Support | Yes |
| Power Input | PoE: 24 V, 24 W Maximum Power Supply: 12 VDC, 2 A |
| Power Output | 1 x USB Type-A, 5 V, 2 A 1 x DC Barrel, 12 V, 2 A |
| Battery | 7.4 V, 5400 mAh LiPo |
| Power Consumption | 3.6 W Active 10 mW Standby |
| Operating Temperature | 41 to 95°F / -10 to 50°C |
| Operating Humidity | 3 to 90% |
| Dimensions | 9.45 x 6 x 1.8" / 240 x 154 x 46 mm |
| Weight | 1.4 lb / 620 g |
| Package Weight | 5.13 lb |
| Box Dimensions (LxWxH) | 12.7 x 11.3 x 3.8" |
