Description

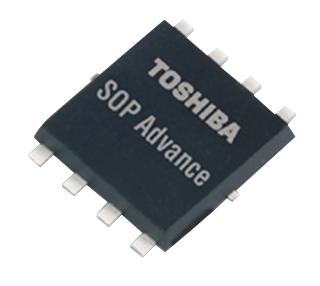

This is a TPH9R00CQ5,LQ(M1 Power MOSFET , N Channel, 150 V, 64 A, 0.0073 ohm, SOP, Surface Mount New product from TOSHIBA with the model number TPH9R00CQ5,LQ(M1
Product details
| Channel Type | N Channel |
| Drain Source Voltage Vds | 150V |
| Continuous Drain Current Id | 64A |
| Drain Source On State Resistance | 0.0073ohm |
| Transistor Case Style | SOP |
| Transistor Mounting | Surface Mount |
| Rds(on) Test Voltage | 10V |
| Gate Source Threshold Voltage Max | 4.5V |
| Power Dissipation | 210W |
| No. of Pins | 8Pins |
| Operating Temperature Max | 175°C |
| Product Range | - |
| Qualification | - |
Other details
| Brand | TOSHIBA |
| Part Number | TPH9R00CQ5,LQ(M1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
