TPD1055FA is an intelligent power device silicon monolithic power MOS integrated circuit. It is a high-side switch of a P-channel DMOS output. It is a monolithic power IC that can be driven directly from a CMOS or TTL logic circuit (MPU etc.), and was equipped with the intelligent function of protection and diagnosis. It incorporates a diagnosis function that allows diagnosis output to be read externally at battery short, load short-circuiting, opening, or over temperature.
- A power IC with a structure combining a control block and a power MOSFET (D-MOS) on single chip
- One side of load can be grounded to a high-side switch
- AEC-Q100 qualified
- Can directly drive a power load from CMOS or TTL logic
- Built-in protection circuits against over temperature, over current
- Up to VDD - 40V (min) of counter electromotive force from an inductance load can be applied
- Low on-resistance: RDS(ON)=0.12ohm (max) (at VDD = 12V, Tch = 25°C, IO = -2A)

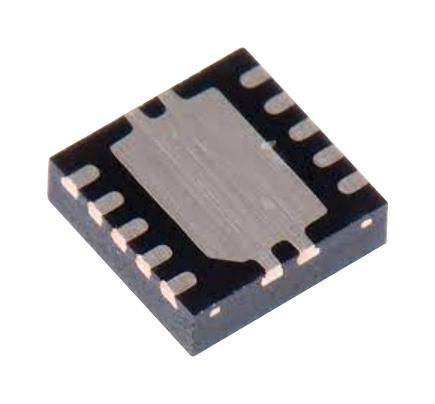

- WSON10 package for surface mounting that is packed in embossed tape
- Operating supply voltage range from 5 to 18V (Tch = -40 to 125°C)
- Operating temperature rating range from -40 to 125°C
Product details
| No. of Channels:
1Channels
|
| Gate Driver Type:
-
|
| Driver Configuration:
High Side
|
| Power Switch Type:
MOSFET
|
| No. of Pins:
10Pins
|
| IC Case / Package:
WSON-EP
|
| IC Mounting:
Surface Mount
|
| Input Type:
CMOS, TTL
|
| Source Current:
-
|
| Sink Current:
-
|
| Supply Voltage Min:
-0.3VDC
|
| Supply Voltage Max:
25VDC
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
125°C
|
| Input Delay:
-
|
| Output Delay:
-
|
| Product Range:
-
|
| Qualification:
AEC-Q100
|
Other details
| Brand |
TOSHIBA |
| Part Number |
TPD1055FA,BXH(S |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
