Description
Product Overview
TMPM4KNF10AFG(DBB) is a silicon monolithic, CMOS digital integrated circuit. The application includes motors, major appliances using motors, and industrial equipment.
- Arm® Cortex®-M4 processor with FPU, memory protection unit (MPU)
- 1024KB code flash, 32KB data flash, 64KB RAM
- 87pin I/O port, 32ch DMAC, 4ch UART, 2/2ch I²C/EI²C
- JTAG/SW TRACE(4bits) NBDIF debug interface, 32KB size, 0x30000000 START, 0x30007FFF END (data flash)
- Operating frequency range from 1 to 160MHz, operating voltage range from 4.5 to 5.5V (All Functions)
- IDLE, STOP1 low-power consumption operation
- Data flash is rewritable in parallel with instruction execution
- Oscillation frequency detection (OFD) - abnormal system clock detection
- Voltage detection (LVD) - 8 level, generate interrupts and reset outputs

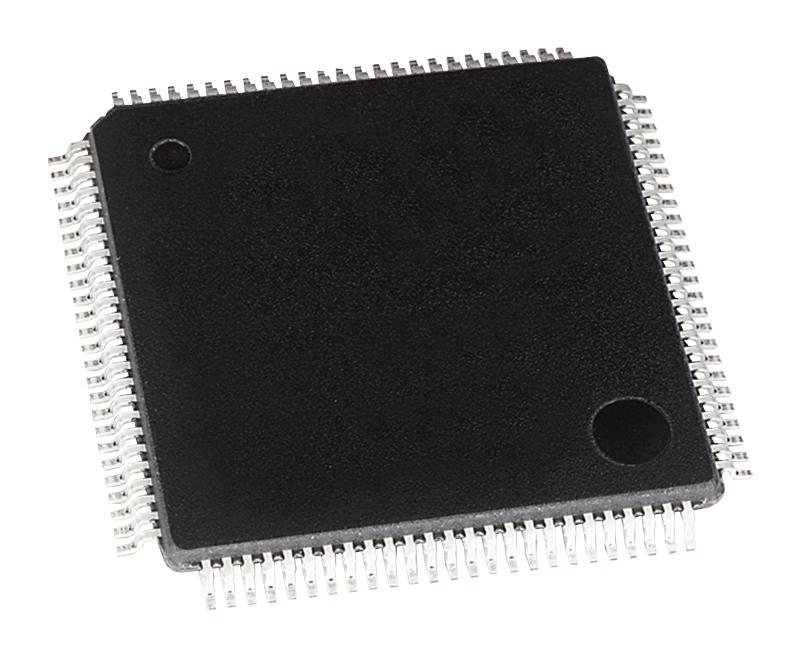

- LQFP100 package, operational temperature range from -40 to 105°C
Product details
Other details
| Brand | TOSHIBA |
| Part Number | TMPM4KNF10AFG(DBB) |
| Quantity | Each |
| Technical Data Sheet EN |  |
