Description
Product Overview

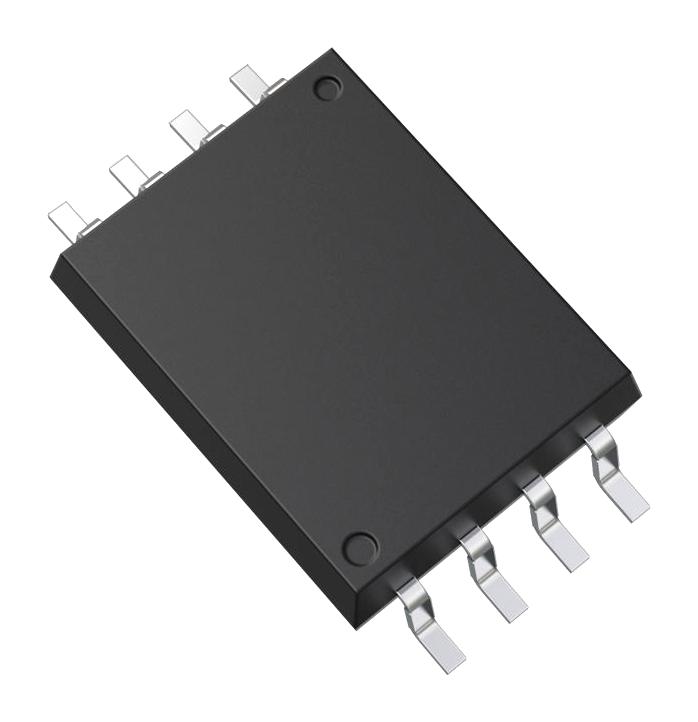

TLP5814H(TP,E(O is a highly integrated gate driver photocoupler (GaA?As infrared LED & photo IC). The TLP5814H consists of an infrared LED and an integrated high-gain, high-speed photodetector. Suitable for Photovoltaic (PV) inverters, industrial inverters, SiC-MOSFET gate drivers, IGBT gate drivers applications.
- Supply voltage range from 13 to 23V
- Supply current is 5mA (max)
- Peak miller clamp sinking current: 6.8A (max)
- Output peak current: +6.8A/-4.8A (max)
- Threshold input current is 3mA (max)
- Propagation delay time is 150ns (max)
- Common-mode transient immunity is ±70kV/µs (min)
- Isolation voltage is 5000Vrms (min)
- 8-pin SO8L package
- Operating temperature range from -40 to 125°C
Product details
Other details
| Brand | TOSHIBA |
| Part Number | TLP5814H(TP,E(O |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
