Description
Product Overview

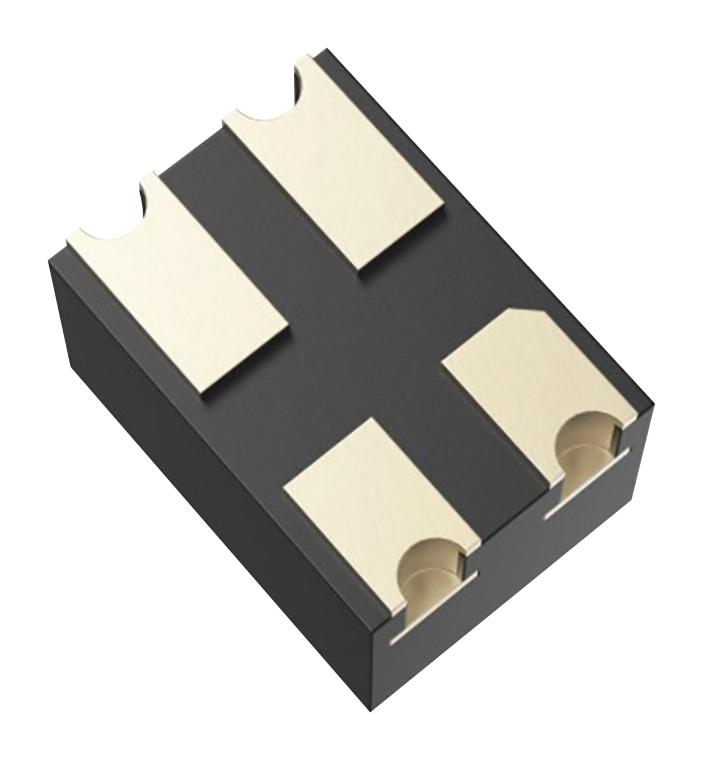

TLP3412SRLA(TP,E(O is a very small outline non-leaded photorelay suitable for surface-mount assembly. TLP3412SRLA has a built-in input resistor, which eliminates an external input resistor for space saving. Its features include low off-state current and low output pin capacitance. The application includes ATE (automatic test equipment), probe cards, measuring instruments, high-speed logic IC testers, and high-speed memory testers.
- S-VSON4T: 2.0mm (L) × 1.45mm (W) × 1.3mm (H)
- Normally opened (1-Form-A)
- Maximum supply voltage is 48V, typ applied input forward voltage is 1.8V
- Input forward current is 6.6mA typ (VIN = 1.8V, Ta = 25°C)
- Input capacitance is 80pF typ (V = 0V, f = 1MHz, Ta = 25°C)
- Output capacitance is 17pF typ (V = 0V, f = 1MHz, t <lt/> 1s, Ta = 25°C)
- ON-state resistance is 1ohm typ (ION = 400mA, VIN = 1.8V, t <lt/> 1s, Ta = 25°C)
- Total capacitance (input to output) is 1pF typ (VS = 0V, f = 1MH, Ta = 25°C)
- Isolation voltage is 500Vrms min (AC, 60s, Ta = 25°C)
- Operating temperature range from -40 to 125°C
Product details
Other details
| Brand | TOSHIBA |
| Part Number | TLP3412SRLA(TP,E(O |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
