Description
Product Overview
TCTH022BE,LF(CT is a TCTH0xxxE series Thermoflagger� (over temperature detection IC) open-drain type CMOS linear process IC outputs abnormal-state signal on detecting over temperature as the resistor value changing of external PTC thermistor. Selectable auto retry type if PTC thermistor temperature goes down back to lower than threshold, or Latch the abnormal signal type. Application includes notebook PC, mobile equipment, home appliance, industry equipment etc. for over temperature detection.
- FLAG signal latch function, FLAG signal output (PTCGOOD)
- Supply voltage range from 1.7 to 5.5V, PTCGOOD output voltage is 0 to 5.5V
- RESET voltage range from 0 to VDD, typical PTCO output current is 10?A
- Detect voltage is 0.50V (typ, Tj = 25°C, VDD = 3.3V)
- Open-drain output type
- Response time is 17?s (typ, Tj = 25°C, VDD = 3.3, PTCO terminal voltage is 1V to 10mV)
- Current consumption is 11.3?A (typ, Tj = 25°C, VDD = 3.3V)
- Operation MASK time is 20?s (typ, Tj = 25°C, VDD = 3.3V)
- Pull-down current at RESET pin is 0.04?A (typ, Tj = 25°C, VDD = 3.3V)

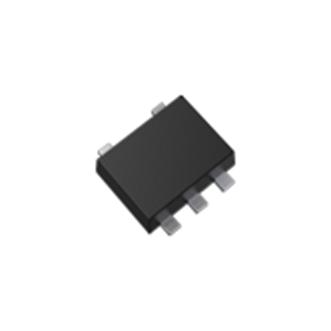

- ESV (SOT-553) package, operation temperature range from -40 to 125°C
Product details
Other details
| Brand | TOSHIBA |
| Part Number | TCTH022BE,LF(CT |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
