TCK420G is an overvoltage protection MOSFET gate driver IC. It has external N-channel MOSFET. Which supports MOSFET operating voltage from 2.7V to 28V with various over voltage lock out line-ups. And this features low standby current, less than 1µA, built in charge pump circuit and MOSFET gate source protection circuit. This gate driver IC is widely used in load switch circuit for mobile, wearable, and IoT equipment etc.
- Gate driver for N-channel common drain MOSFET
- Gate driver for N-channel single high side MOSFET
- High maximum input voltage is VIN max = 40V
- Gate-source protection circuit
- Operating temperature range is -40°C to 85°C
- OVLO threshold, falling is 27.73V
- External MOSFET gate source voltage is 10V (Control ON)

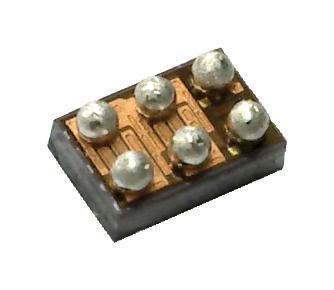

- Packaging style is WCSP6G (1.2mm x 0.8mm (typ)
Other details
| Brand |
TOSHIBA |
| Part Number |
TCK420G,L3F(S |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
