- TBD62503A series BiCD silicon monolithic integrated circuit
- 7 channel sink type DMOS transistor array
- High voltage is 50V (max, Ta = 25°C), high current is 300mA/ch (max, Ta = 25°C)
- Input voltage range from 2.5 to 25V (output on, IOUT = 100mA or more, VOUT = 2V, Ta = -40 to 85 °C)
- Output leakage current is 1.0µA (max, VOUT = 50V, Ta = 85°C, VIN = 0V)
- Turn on delay is 0.4µs (typ, VOUT = 50V, RL = 200 ohm, CL = 15pF)
- Turn off delay is 0.8µs (typ, VOUT = 50V, RL = 200 ohm, CL = 15pF)

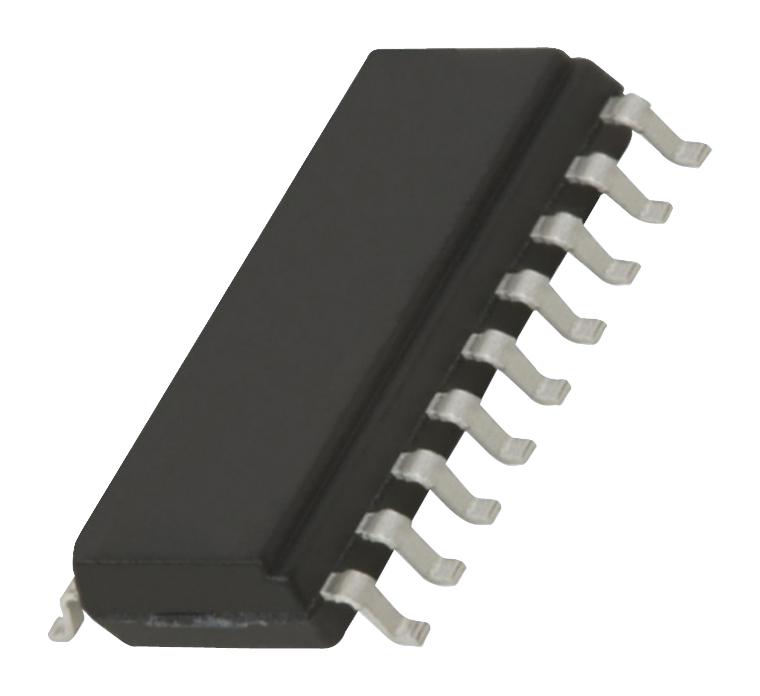

- SOP16-P-225-1.27 package, operating temperature range from -40 to 85°C
Footnotes
Please be careful about thermal conditions during use.
Product details
| Supply Voltage Min:
-
|
| Supply Voltage Max:
-
|
| No. of Outputs:
7Outputs
|
| Output Voltage:
50V
|
| Output Current:
300mA
|
| Driver Case Style:
SOP
|
| Product Range:
-
|
Other details
| Brand |
TOSHIBA |
| Part Number |
TBD62503AFG(Z,EL) |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
