Description

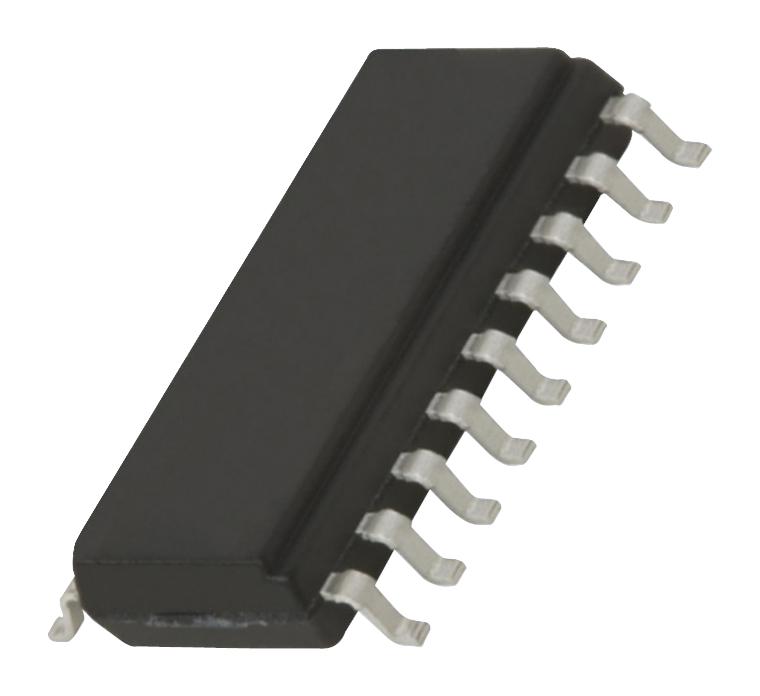

TBD62183AFNG(Z,EL) is a TBD62183A series BiCD silicon monolithic integrated circuit. It has a clamp diode for switching inductive loads built-in in each output.
- 8 channel sink type DMOS transistor array
- High voltage is 50V (max, Ta = 25°C), high current is 50mA/ch (max, Ta = 25°C)
- Input voltage range from 2.8 to 25V (output on, Ta = -40 to 85°C, IOUT = 45mA, VOUT = 2V)
- COMMON pin voltage is 50V (max, Ta = -40 to 85°C)
- Clamp diode forward voltage is 45mA (max, Ta = -40 to 85°C)
- Output leakage current is 1.0µA (max, Ta = 25°C)
- Turn on delay is 0.2µs (typ, VOUT = 50V, RL = 1Kohm, CL = 15pF)
- Turn off delay is 0.4µs (typ, VOUT = 50V, RL = 1Kohm, CL = 15pF)
- SSOP18-P-225-0.65 package, operating temperature range from -40 to 85°C
Footnotes
Please be careful about thermal conditions during use.
Product details
| Supply Voltage Min: - |
| Supply Voltage Max: - |
| No. of Outputs: 8Outputs |
| Output Voltage: 50V |
| Output Current: 50mA |
| Driver Case Style: SSOP |
| Product Range: - |
Other details
| Brand | TOSHIBA |
| Part Number | TBD62183AFNG(Z,EL) |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
