TB67S209FTG is a two-phase bipolar stepping motor driver using a PWM chopper. Clock in decoder is built in. It is fabricated with the BiCD process. Its � Built-in error detection circuits (Thermal shutdown (TSD), over-current shutdown (ISD) and under voltage lock out (UVLO)).
- BiCD process integrated monolithic IC
- Capable of controlling 1 bipolar stepping motor
- PWM controlled constant-current drive, surface mounting
- Allows full, half, quarter, 1/8, 1/16, 1/32 step operation, high voltage and current
- Low on-resistance (high and low side is 0.49ohm typical) MOSFET output stage
- Built-in error detection (TSD/ISD) signal output function
- Built-in VCC regulator for internal circuit use, operating temperature range from -20 to 85°C
- Chopping frequency of a motor can be customized by external resistance and capacitor
- Output voltage of 50V, output current of 4A, number of pins are 48
- P-WQFN48-0707-0.50-003 packaging
Warnings Do not disassemble, analyse, reverse-engineer, alter, modify, translate or copy Product, whether in whole or in part.
Other details
| Brand |
TOSHIBA |
| Part Number |
TB67S209FTG(O,EL) |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

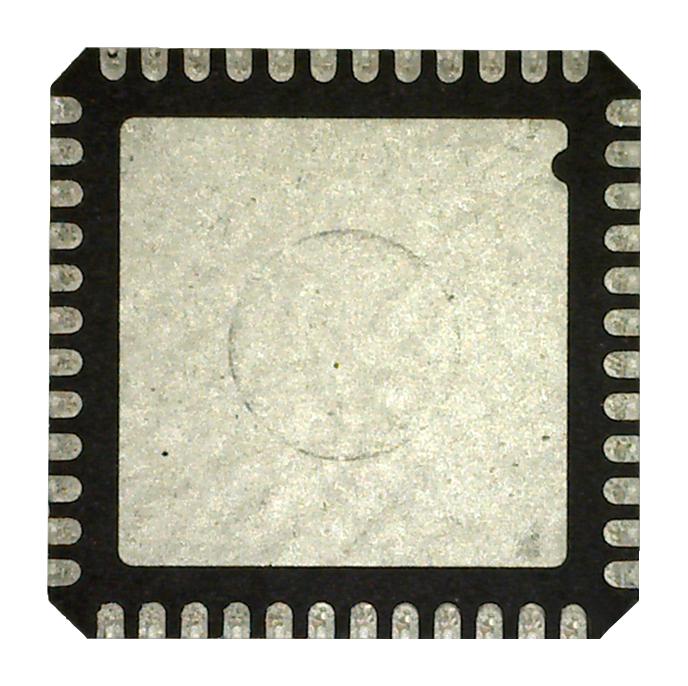

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
