Description
- TB6612FNG idriver IC for DC motor with output transistor in LD MOS structure/low ON-resistor
- Power supply voltage of 15V (maximum)
- Output current of 1.2A (average)/3.2A (peak)
- Output low ON resistor is 0.5ohm (upper+lower typical at VM >= 5V)
- Standby (power save) system, operating temperature is -20 to 85°C
- CW/CCW/short brake/stop function modes
- Built-in thermal shutdown circuit and low voltage detecting circuit

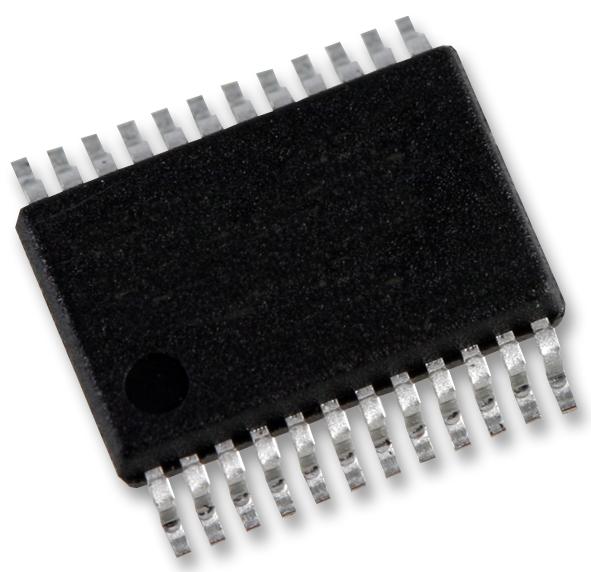

- Small faced package (SSOP24: 0.65mm lead pitch)
- Full-bridge driver for brushed DC motors class
- Number of pins are 24, surface mounting
Footnotes
This product has a MOS structure and is sensitive to electrostatic discharge.
Warnings
Do not disassemble, analyse, reverse-engineer, alter, modify, translate or copy Product, whether in whole or in part.
Product details
| Motor Type: DC |
| No. of Outputs: 4Outputs |
| Output Current: 3.2A |
| Output Voltage: 15V |
| Driver Case Style: SSOP |
| No. of Pins: 24Pins |
| Supply Voltage Min: 2.7V |
| Supply Voltage Max: 5.5V |
| Operating Temperature Min: -20°C |
| Operating Temperature Max: 85°C |
| Automotive Qualification Standard: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | TOSHIBA |
| Part Number | TB6612FNG(O,C,8,EL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
