Description

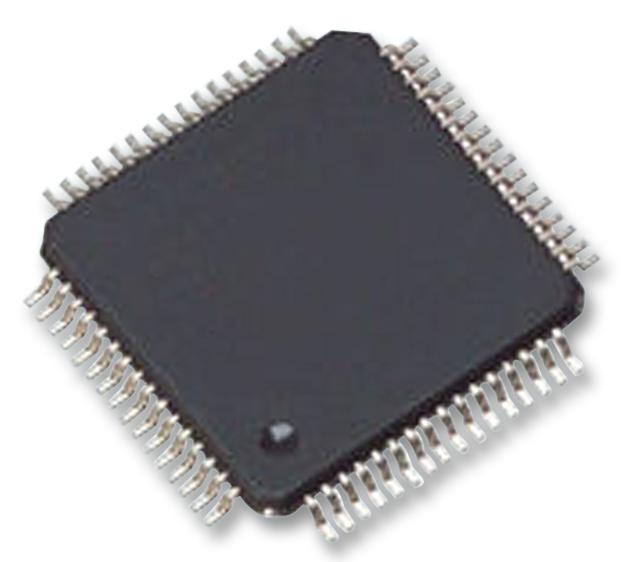

The TB6560AFG(O,8) is a PWM chopper type bipolar driver IC for stepper motor control in 64 pin HQFP package. It is designed for sinusoidal input microstep control of bipolar stepping motors. The TB6560AFG can be used in applications that require 2 phase, 1-2 phase, 2W1-2 phase and 4W1-2 phase excitation modes. This device is capable of providing low vibration, high performance forward and reverse driving of two phase bipolar stepping motor using only a clock signal.
- High output withstand voltage due to use of BiCD process
- On-resistance (Ron) is typically 0.7ohm (upper and lower sum)
- Forward and reverse rotation
- Selectable phase excitation modes
- High output withstand voltage (VDSS) of 40V
- High output current of 1.5A (2.5A peak)
- 100Kohm internal pull down resistors on inputs
- Power supply voltage from 4.5V to 5.5V
- Power dissipation of 4.2W
- Operating temperature range from -30°C to 85°C
Motor Drive & Control
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | TOSHIBA |
| Part Number | TB6560AFG(O,8) |
| Quantity | Each |
| Technical Data Sheet EN |  |
