| ₹ 284.03 includes GST and import duties. | |
| B2B customers can avail ₹ 43.31 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

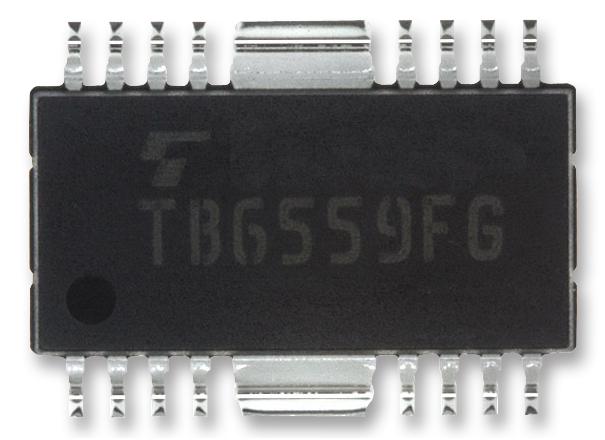

The TB6559FG(O,8,EL) is a Full-bridge DC Motor Driver with LDMOS output transistors and it is a Bi-CD silicon monolithic integrated circuit. It uses P-channel MOSFETs on the high side and N-channel MOSFETs on the low side, eliminating the need for a charge pump. Four operating modes are selectable via IN1 and IN2 - clockwise (CW), counter clockwise (CCW) and short brake and stop.
- Constant-current or direct PWM
- Standby mode
- Over-current protection
- Thermal shutdown
- 1.3R Typical low-ON resistance (upper and lower sum)
Motor Drive & Control
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | TOSHIBA |
| Part Number | TB6559FG(O,8,EL). |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 278.35 |
| 3-5 | ₹ 275.51 |
| 5-10 | ₹ 269.83 |
| 10+ | ₹ 264.15 |
Bulk discount will be automatically applied during checkout based on quantity.
