TB62269FTG is a bipolar stepping motor driver using a PWM chopper. It is fabricated with the BiCD process. Its internal voltage regulator allows control of the motor with a single VM power supply.
- Drive control is bipolar stepping motor at 1 chip/2-phase bipolar stepper+push-pull driver class
- PWM controlled constant-current drive, surface mounting
- Allows full, half and quarter ,1/8,1/16,1/32 step resolutions, number of pins are 48
- Low on-resistance of output stage transistor is low by using BiCD process
- High voltage and current, operating temperature range from -20 to 85°C
- Thermal shutdown (TSD, over-current shutdown (ISD) and power-on reset of VM power supply (POR)
- Built-in regulator allow to function with only VM power supply
- Able to customize PWM signal frequency by external resistance/capacitor
- Output voltage of 40V, output current of 1.8A

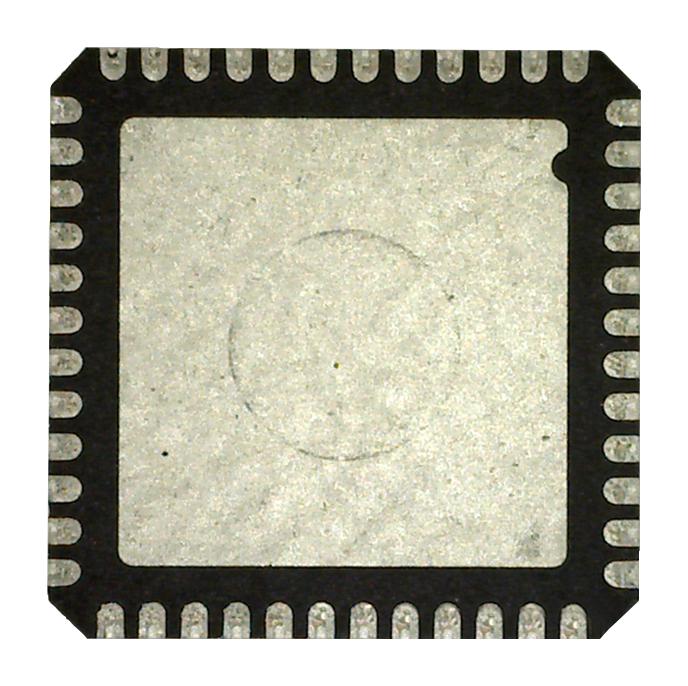

- P-WQFN48-0707-0.50-003 packaging
Product details
| Motor Type:
Bipolar Stepper Motor
|
| No. of Outputs:
10Outputs
|
| Output Current:
1.8A
|
| Output Voltage:
40V
|
| Driver Case Style:
WQFN-EP
|
| No. of Pins:
48Pins
|
| Supply Voltage Min:
4.75V
|
| Supply Voltage Max:
5.25V
|
| Operating Temperature Min:
-20°C
|
| Operating Temperature Max:
85°C
|
| Automotive Qualification Standard:
-
|
| MSL:
MSL 1 - Unlimited
|
Other details
| Brand |
TOSHIBA |
| Part Number |
TB62269FTG(O,EL) |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
