| ₹ 62.56 includes GST and import duties. | |
| B2B customers can avail ₹ 9.54 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

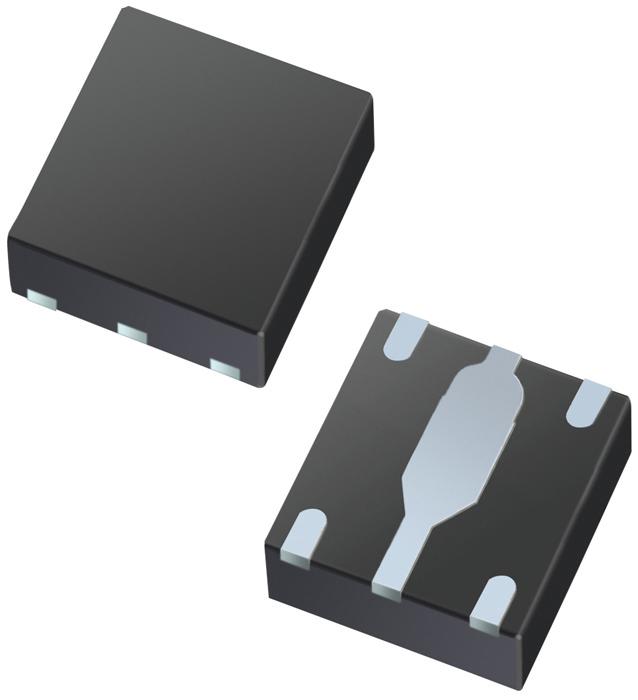

TAR5S33U(TE85L,F) is a point regulators (low-dropout regulator). It consists of general-purpose bipolar LDO regulator with an on/off control pin and features overtemperature and overcurrent protection circuits.
- Output voltage is 3.3V typ (Tj = 25°C), low standby current
- Overtemperature and overcurrent protections
- Wide operating voltage range, high maximum output current
- Low input-to-output voltage differential
- Allows use of ceramic capacitors as the input and output capacitors
- Input voltage range from 2.4 to 15V (Tj = 25°C)
- Quiescent current is 170µA typ (IOUT = 0mA, Tj = 25°C)
- 5-pin SON5-P-0202-0.65, operation temperature range from -40 to 85°C
Product details
Other details
| Brand | TOSHIBA |
| Part Number | TAR5S33U(TE85L,F) |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 61.31 |
| 3-5 | ₹ 60.68 |
| 5-10 | ₹ 59.43 |
| 10+ | ₹ 58.18 |
Bulk discount will be automatically applied during checkout based on quantity.
