Toshiba IK-HD1D Camera Control Unit

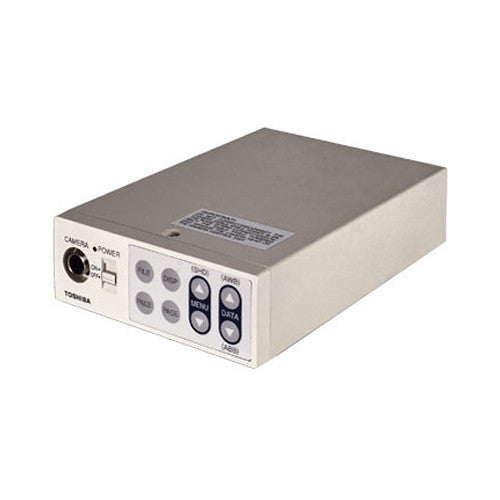

The Toshiba IK-HD1D Camera Control Unit (CCU) is an interface box for connecting a Toshiba IK-HD1H 3CCD HD camera head to an HD video monitor. Nearly identical to the IK-HD1E, the 'D' model also provides analog and digital HD video connections, with the main difference being the substitution of a DVI-D output for HD-SDI. This means you can use lower-cost consumer HD monitors with DVI/HDMI connections as opposed to the more expensive HD-SDI displays. The remote interface is also different, an 8-pin mini-DIN versus a 9-pin DSUb, while the component/RGB connectors--in the form of three BNC terminals (Y/Pb/Pr)--remain the same.

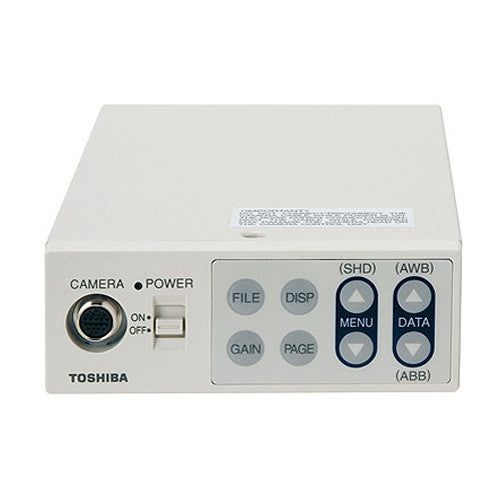

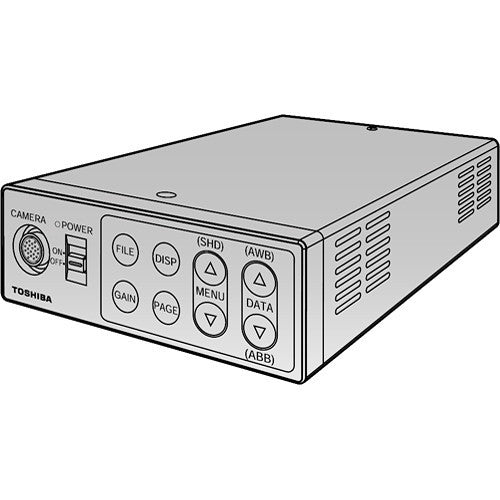

Most camera controls are accessed from the front of the unit. These include a power On/Off switch, an AWB and gain switch, buttons for menu selection and a button to change scene files and display modes. The rear of the unit adds a 59.94i to 60i format switch as well as a key lock On and Off switch. Also located on the back of the unit are two sync ports, a wired remote control terminal and a 12VDC power input.
