XCL105C361H2-G is a XCL105 series synchronous step-up DC/DC converter which integrates an inductor with a 0.17ohm Nch driver FET and a 0.23ohm synchronous Pch switching FET built-in. The device is able to start operation from an input voltage of 0.9V, suitable for equipment using a single alkaline battery or nickel metal hydride battery. The device is able to connect in parallel with other power supplies by load disconnection function which breaks continuity between the input and output. Applications include portable equipment, beauty and health equipment, wearable devices, game, hobby, PC peripherals, devices with 1~3 alkaline, 1~3 nickel hydride, 1 lithium and 1 li-ion.
- Input voltage range from 0.65V to 6.0V (operation start voltage : 0.9V)
- Fixed output voltage of 3.6V
- Oscillation frequency of 1.2MHz
- PWM/PFM control mode
- Thermal shutdown, current limit, soft-start
- Load disconnection
- Ceramic output capacitor, operating ambient temperature range from -40 to 105°C

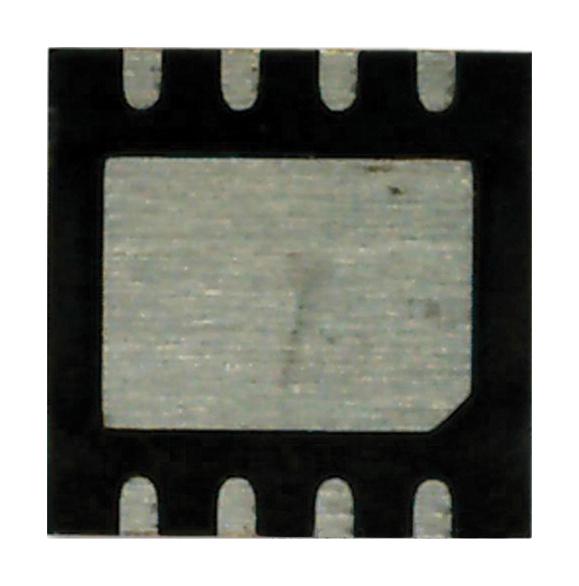

- DFN3030-10B package
Product details
| Input Voltage Min:
650mV
|
| Input Voltage Max:
6V
|
| No. of Pins:
10Pins
|
| Output Current:
-999A
|
| Output Voltage Nom:
3.6V
|
| Switching Frequency:
1.2MHz
|
| Operating Temperature Max:
105°C
|
Other details
| Brand |
TOREX |
| Part Number |
XCL105C361H2-G |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
