XC6706 series is a high-speed 3-pin LDO regulator IC using the CMOS process. This is a low supply current of 1.2µA, despite achieving high accuracy, and high ripple rejection. Internal circuitry includes a reference voltage supply, error amplifier, Pch driver FET, current limit circuit, thermal shutdown circuit, and a phase compensation circuit. This is built-in with a soft start function to suppress inrush current and overshoot at start-up. This starts up the output voltage at 1.0ms. Application includes industrial equipment, smart meters, gas detectors, smoke detectors, sensor / IoT devices, FA devices, domestic electrical appliances, consumer equipment, energy harvest, other devices with 2~4 Li-ion rechargeable battery directly connection, devices with 2 Li-ion battery directly connection / 4 or more dry batteries.
- Output voltage is 5V
- Operating voltage range from 3.5 to 20.0V
- Accuracy is ±1.5%, maximum output current is 200mA
- High ripple rejection is 50dB at 1KHz, seamless GO, soft-start function
- Current limit, thermal shutdown, protection function, ceramic capacitor input / output capacitor

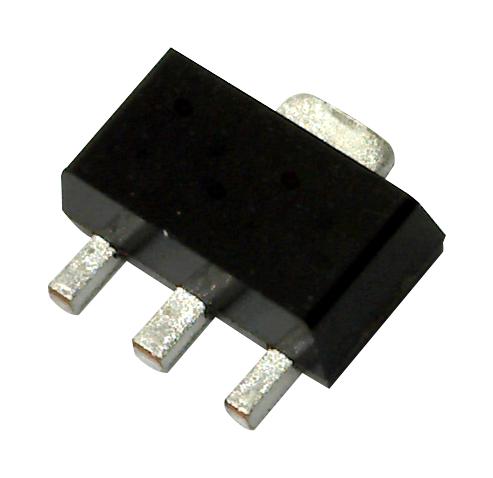

- SOT-89 packaging
- Operating ambient temperature range from -40 to 105°C
Other details
| Brand |
TOREX |
| Part Number |
XC6706C501PR-G |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
