Description
The XC6220B331MR-G is a highly accurate low noise high speed low dropout and large current CMOS Voltage Regulator with GreenOperation function. The XC6220 series consists of a voltage reference, an error amplifier, a current limiter, an inrush current prevention circuit and a phase compensation circuit plus a driver transistor. With a 0.2R on-resistance driver transistor integrated and with output currents up to 1A, the ultra low dropout voltage performance greatly extends battery life as does the GreenOperation function which can switch between high speed and power save modes automatically. Low ESR ceramic capacitors can be used for the output stabilization capacitor (CL). Output voltage is selectable in 0.05V increments within the range of 0.8 to 5.0V, using laser trimming technologies.
- Ceramic capacitor compatible
- Over-current protection circuit and a thermal shutdown circuit are built in
- Over-current protection circuit will operate when the output current reaches its limit current
- Thermal shutdown circuit will operate when the junction temperature reaches its limit temperature
- Inrush protection circuit works by controlling the inrush current
- Any fluctuations to VIN caused by inrush current during system start up can be minimized
- CE function enables the output to be turned off
- IC becomes a stand-by mode resulting in greatly reduced power consumption
Applications
Power Management, Fibre Optics, Audio
- :
- 6V
- :
- 3.3V
- :
- -40°C
- :
- 1A
- :
- -
- :
- 85°C
- :
- 5Pins
- :
- -
- :
- Fixed
- :
- 1.6V
- :
- 3.3V 1A LDO Voltage Regulators
- :
- -
- :
- SOT-25
- :
- Each
- :
- 655mV
- :
- -
Product details
| Input Voltage Max | 6V |
| Fixed Output Voltage Nom. | 3.3V |
| Operating Temperature Min | -40°C |
| Output Current | 1A |
| Adjustable Output Voltage Max | - |
| Operating Temperature Max | 85°C |
| No. of Pins | 5Pins |
| Adjustable Output Voltage Min | - |
| Output Type | Fixed |
| Input Voltage Min | 1.6V |
| Product Range | 3.3V 1A LDO Voltage Regulators |
| Automotive Qualification Standard | - |
| LDO Regulator Case Style | SOT-25 |
| Packaging | Each |
| Dropout Voltage Vdo | 655mV |
| MSL | - |
Other details
| Brand | TOREX |
| Part Number | XC6220B331MR-G |
| Quantity | Each |
| Technical Data Sheet EN |  |

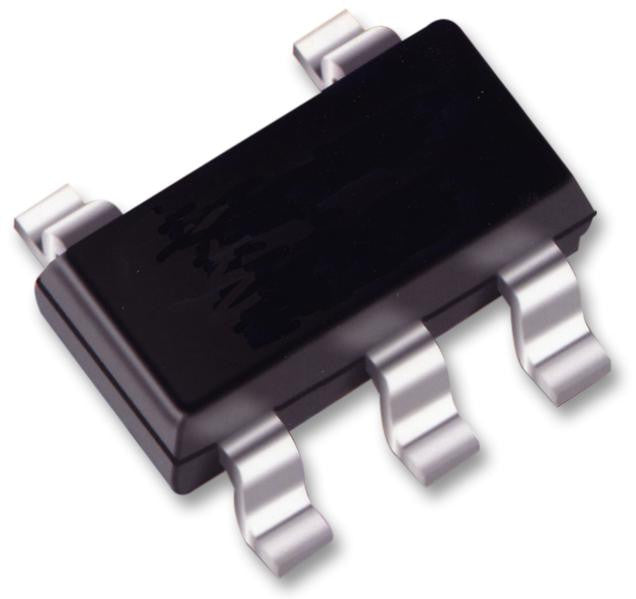

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
