| ₹ 131.17 includes GST and import duties. | |
| B2B customers can avail ₹ 20.0 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The XC6206P332PR is a 3-terminal highly precise low power consumption Positive Voltage Regulator manufactured using CMOS and laser trimming technologies. The XC6206 series provides large currents with a significantly small dropout voltage. The XC6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter's foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2 to 5.0V.
- 1.0µA Typical low power consumption
- Ceramic capacitor compatible
- Current limit circuit built-in protection
Power Management, Consumer Electronics, Portable Devices, Imaging, Video & Vision
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | TOREX |
| Part Number | XC6206P332PRN |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

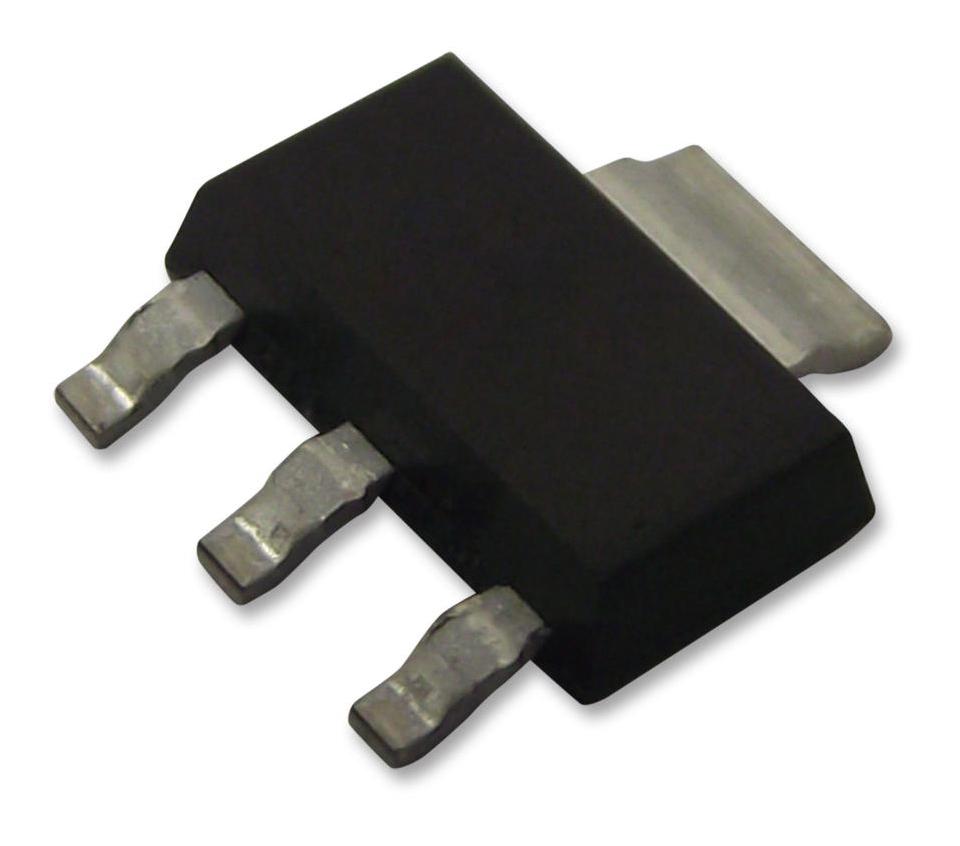

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 128.55 |
| 3-5 | ₹ 127.23 |
| 5-10 | ₹ 124.61 |
| 10+ | ₹ 121.99 |
Bulk discount will be automatically applied during checkout based on quantity.
