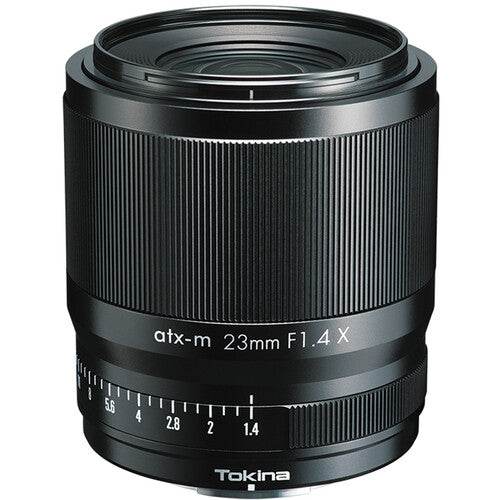

Tokina atx-m 23mm f/1.4 Overview
Compact design, wide field of view, and fast performance, the Tokina atx-m 23mm f/1.4 X is a 35mm-equivalent wide-angle prime for FUJIFILM X-mount mirrorless cameras. The versatile focal length suits a wide range of subject types and shooting applications, ranging from street and reportage shooting to landscapes and environmental portraiture. The bright f/1.4 maximum aperture further benefits working in various conditions, by offering improved control over depth of field and suiting working in low-light settings. Two Super Low Dispersion (SD) elements are featured in the optical design, which help to control color fringing and chromatic aberrations while a multi-layer coating has also been applied to reduce flare and ghosting for greater contrast in bright and backlit conditions. This sleek lens also incorporates an STM stepping motor, which affords fast, near-silent, and accurate autofocus performance along with full-time manual focus override.
Prime wide-angle lens is designed for APS-C-format FUJIFILM X-mount mirrorless cameras and provides a 35mm equivalent focal length.
Bright f/1.4 maximum aperture suits working in low-light conditions and also affords greater control over depth of field.
Two SD elements reduce color fringing and chromatic aberrations in order to achieve a high degree of clarity and color accuracy.
Multi-layer coating has been applied to individual elements to suppress flare and ghosting for greater contrast and color fidelity when working in strong lighting conditions.
STM stepping motor enables quick, quiet, and precise autofocus performance along with full-time manual focus override. Additionally, an internal focusing design maintains the overall lens length during use for improved handling and quicker response.
De-clicked aperture ring offers silent and smooth aperture transitions to benefit video recording. Also, this ring features an 'A' position for automated, camera-based aperture selection.
Nine-blade diaphragm contributes to a pleasing bokeh quality.
In the Box
- Tokina atx-m 23mm f/1.4 X Lens for FUJIFILM X
- Front and Rear Lens Caps
- BH-523 Lens Hood
- Limited 2-Year Warranty
Tokina atx-m 23mm f/1.4 Specs
| Focal Length |
23mm (35mm Equivalent Focal Length: 35mm) |
| Maximum Aperture |
f/1.4 |
| Minimum Aperture |
f/16 |
| Lens Mount |
FUJIFILM X |
| Format Compatibility |
APS-C |
| Angle of View |
63.4° |
| Minimum Focus Distance |
11.8" / 30 cm |
| Maximum Magnification |
0.1x |
| Optical Design |
11 Elements in 10 Groups |
| Diaphragm Blades |
9 |
| Focus Type |
Autofocus |
| Image Stabilization |
No |
| Filter Size |
52 mm (Front) |
| Dimensions (ø x L) |
2.6 x 2.8" / 65 x 72 mm |
| Weight |
9.7 oz / 276 g |
Packaging Info
| Package Weight |
1.095 lb |
| Box Dimensions (LxWxH) |
5.3 x 5.2 x 4.4" |
