Description

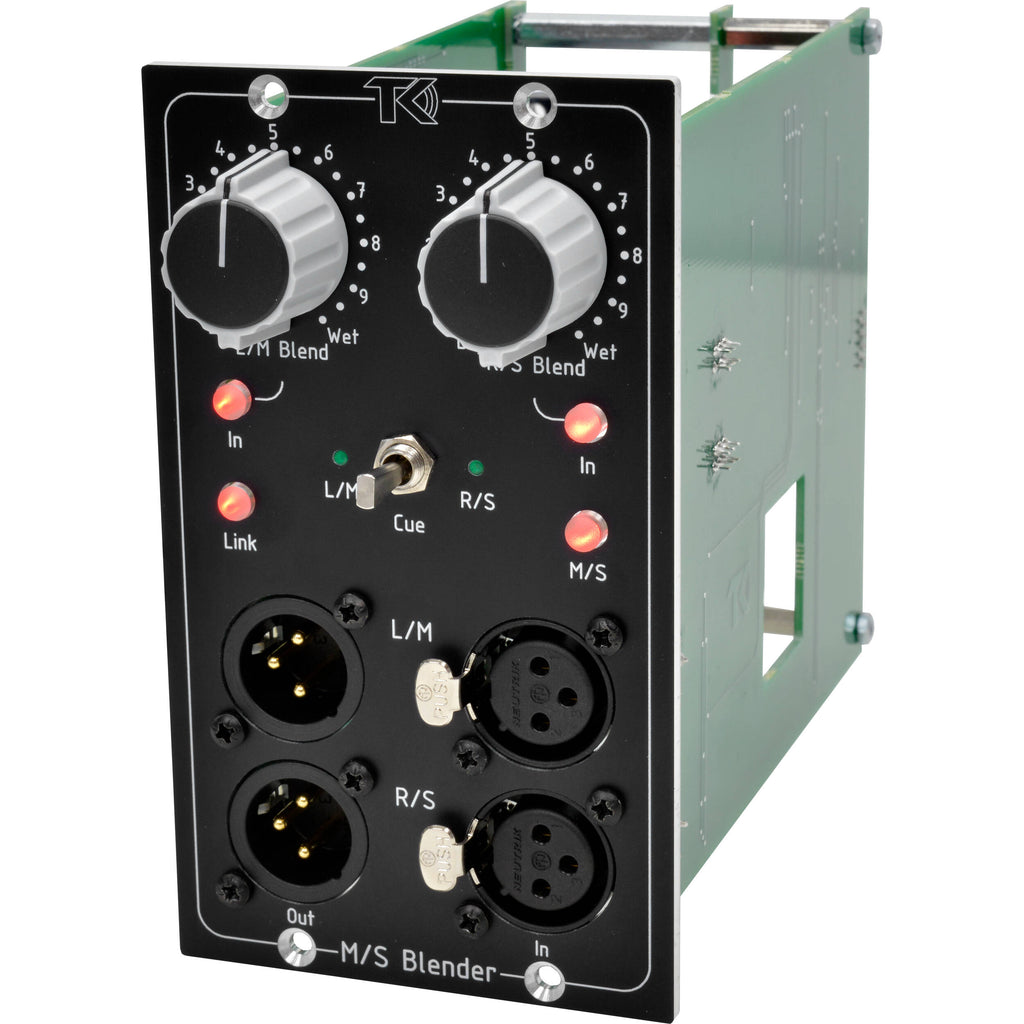

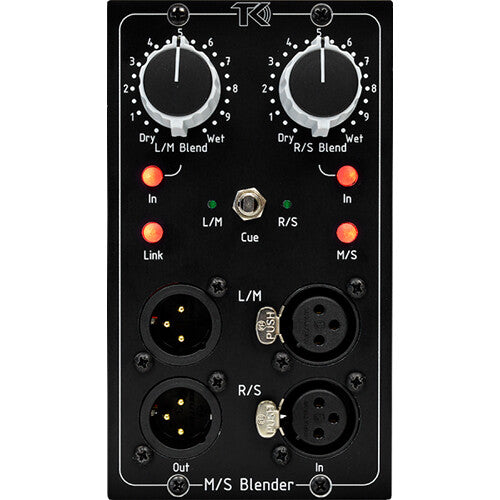

TK Audio M/S BLENDER 500 Overview
Audio professionals in search of a multifunctional parallel processing tool will be impressed with the TK Audio M/S Blender 500, a 500-Series universal parallel processing tool that can act as a dual-mono blender, a stereo blender, and an M/S encoder/decoder.
In standard mode, the unit acts like two individual mono blenders or engage the link function for the left knob to control both channels for easier blending of stereo signals. In M/S mode, the left/right sends will be encoded into mid/side sends and the returns will be decoded back to left/right before the blend controls. A cue function allows you to monitor the left, right, mid, or side signal. The cued signal will be sent to both main outputs. All inputs and outputs are electronically balanced and can handle signals up to +26 dBu.
- Blend controls: from dry to wet in 41 steps
- In L/S and In R/M: activates respective channels
- Link: Left/Mid channel In switch and Blend knob controls both channels
CueSW:
- L/M and R/S Out XLR: balanced send jacks
- L/M and R/S In XLR: balanced return jacks
In the Box
- TK Audio M/S Blender 500 Universal Parallel Processing Tool
- Limited 2-Year Manufacturer Warranty
TK Audio M/S BLENDER 500 Specs
| Frequency Response |
20 Hz to 80 kHz (+0 dB / -0.1 dB)
|
| THD+N |
< 0.0004% (Blend at 1 kHz)
< 0.0006% (M/S at 1 kHz) |
| Dynamic Range |
124 dB (119 dB M/S)
|
| Signal to Noise Ratio |
97 dB at 0 dBu
92 dB at 0 dBu (with M/S Activated) |
| Input Impedance |
24 Kilohms
|
| Output Impedance |
70 Ohms
|
| Maximum Input Level |
+26 dBu
|
| Maximum Output Level |
+26 dBu
|
| Power Requirement |
+130 / -60 mA
|
| Dimensions |
Not Specified by Manufacturer
|
| Weight |
Not Specified by Manufacturer
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
