Description

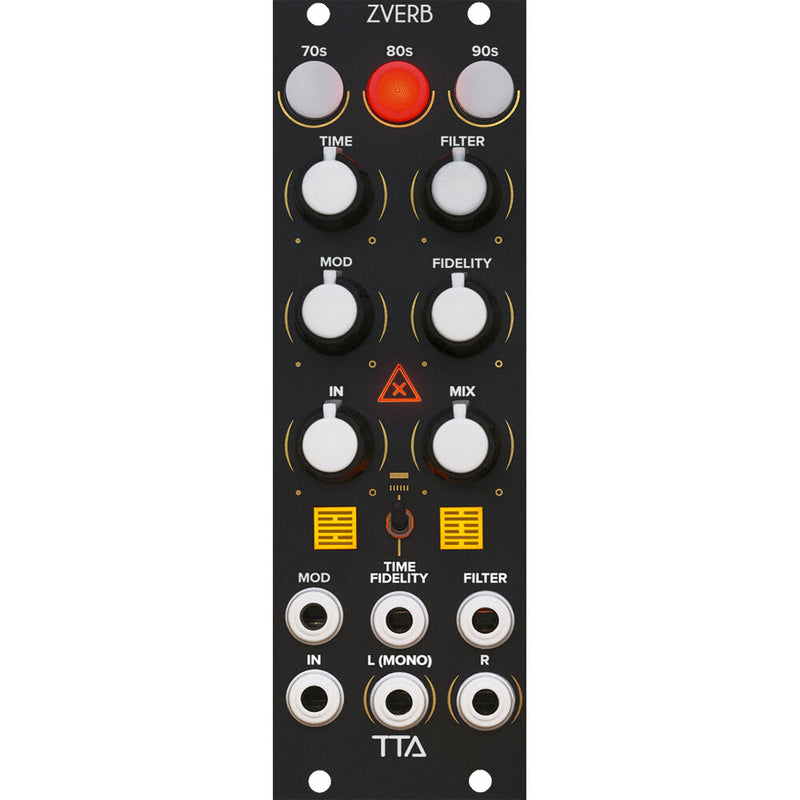

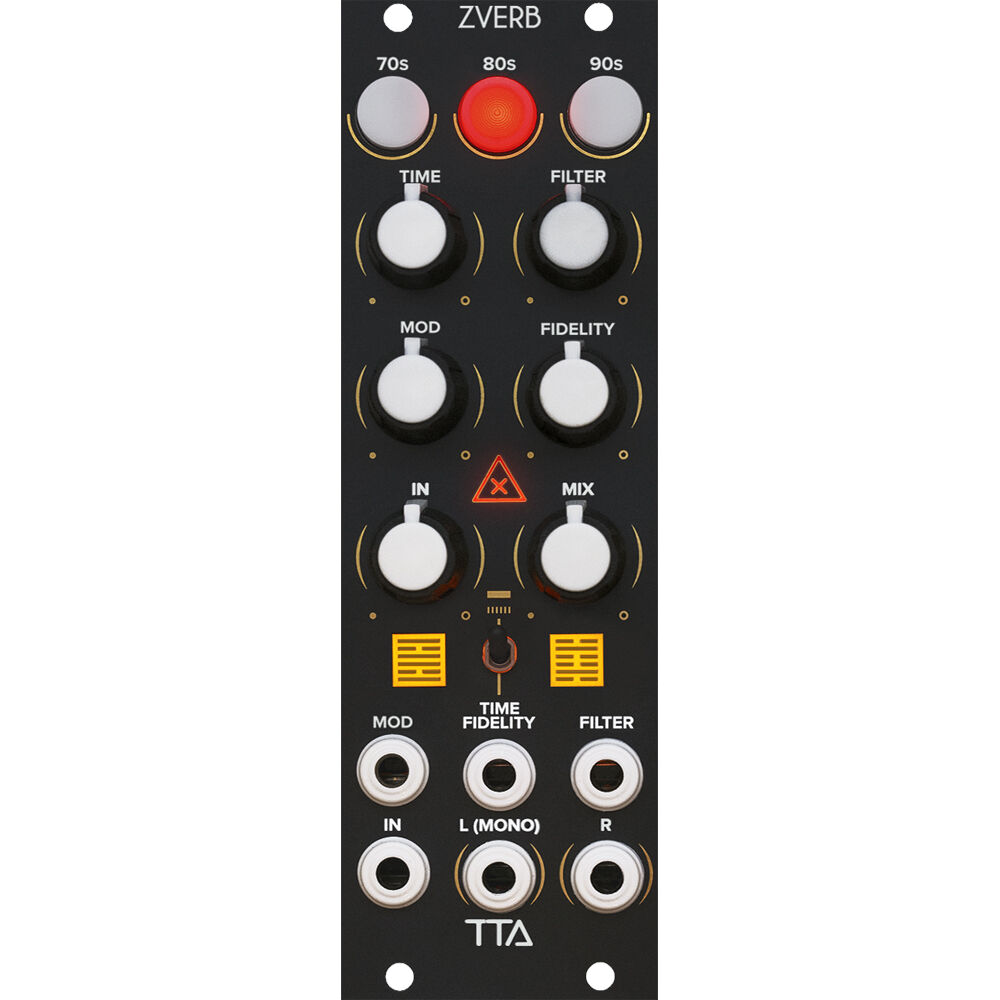

TipTop Audio ZVERB BK Overview
- 1Description
- 2At a Glance
- 3Effects
- 4Eurorack Ready
Add amazing reverb effects to your modular setup with the black Tiptop Audio ZVERB, a classic reverb effects processor in a Eurorack module, well suited for adding depth, expression, and ambience to your patches. The module offers voltage control over Modulation, Time/Fidelity, and Filter. There are three effect groups organized by the decade ('70s, '80s, '90s) in which they were introduced or became popular. Enjoy a wide palette of simple reverbs and complex effects that combine delay and pitch shifting with reverb. The ZVERB includes a ribbon power cable.
At a Glance
- ZVERBZ is a collection of new stereo reverb algorithms that range from typical reverbs to more complex effects that combine delay and pitch shifting with reverb.
- The effects are grouped by decades based on either the era an algorithm was introduced or the decade when the effect was most popular.
- This variety of reverbs covers small to epic-size spaces with the addition of shimmering, feedback-tunneled pitch shifting, tape-delay drivers, gated reverbs, and a lot more.
- Analog clocking of the DSP chip and CV over the parameters enable even more experimentation. This is a collection inspired by the best of the past, now right at your fingertips.
Effects
'70s
- Hall
- Plate
- Bright Plate
- Tape > Plate
- Earliest �Verb
- Space Station
'80s
- '80s BarrVerb
- Ambience
- Gated
- Delay > Hall
- Shimmer Octave Up/Down
- Shimmer Pitch Adjust
'90s
- Room
- Void
- Downward Spiral
- Random Hall
- Pong Verb
- ChordHall
Eurorack Ready
- 8 HP Eurorack format module
- Maximum depth: 1.5" (40mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 130mA, -12V: 20mA
In the Box
- TipTop Audio ZVERB Reverb Effects Eurorack Module (8 HP, Black)
- Ribbon Power Cable
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- At a Glance
- Effects
- Eurorack Ready
TipTop Audio ZVERB BK Specs
Key Specs
| Sound Generation |
Digital
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Input
2x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
3x 1/8" / 3.5 mm CV Input
|
| Patch Points |
4x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| Eurorack Current Consumption |
130 mA on +12 V Rail
20 mA on -12 V Rail |
| Horizontal Pitch |
8 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Digital
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Effects |
24x Reverb
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Input
2x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
3x 1/8" / 3.5 mm CV Input
|
| Control Voltage Level |
CV In: 0 to +5 V / ±2.5 V
|
| Patch Points |
4x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| Sync I/O |
No
|
Audio Performance
| Maximum Input Level |
12 V p-p
|
| Maximum Output Level |
10 V p-p
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
130 mA on +12 V Rail
20 mA on -12 V Rail |
Physical
| Horizontal Pitch |
8 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.375 lb
|
| Box Dimensions (LxWxH) |
5.7 x 3.5 x 2"
|
