Description

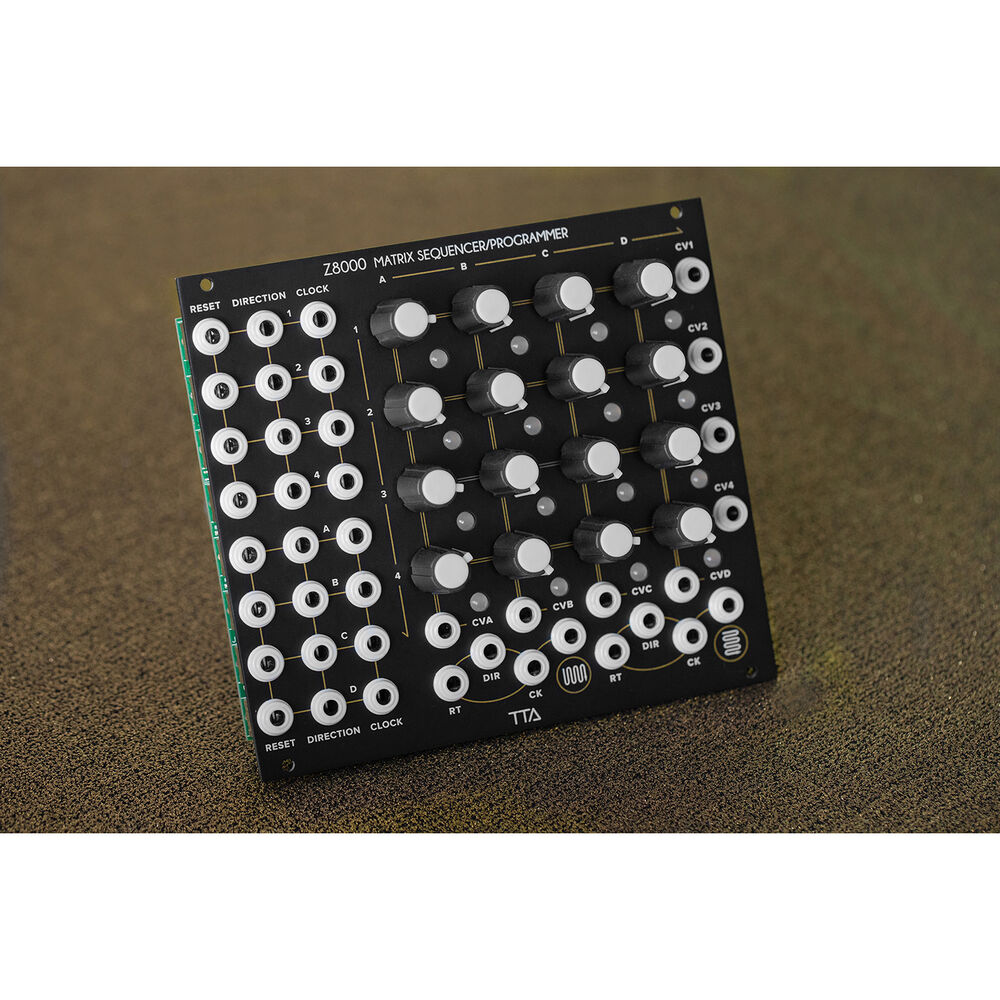

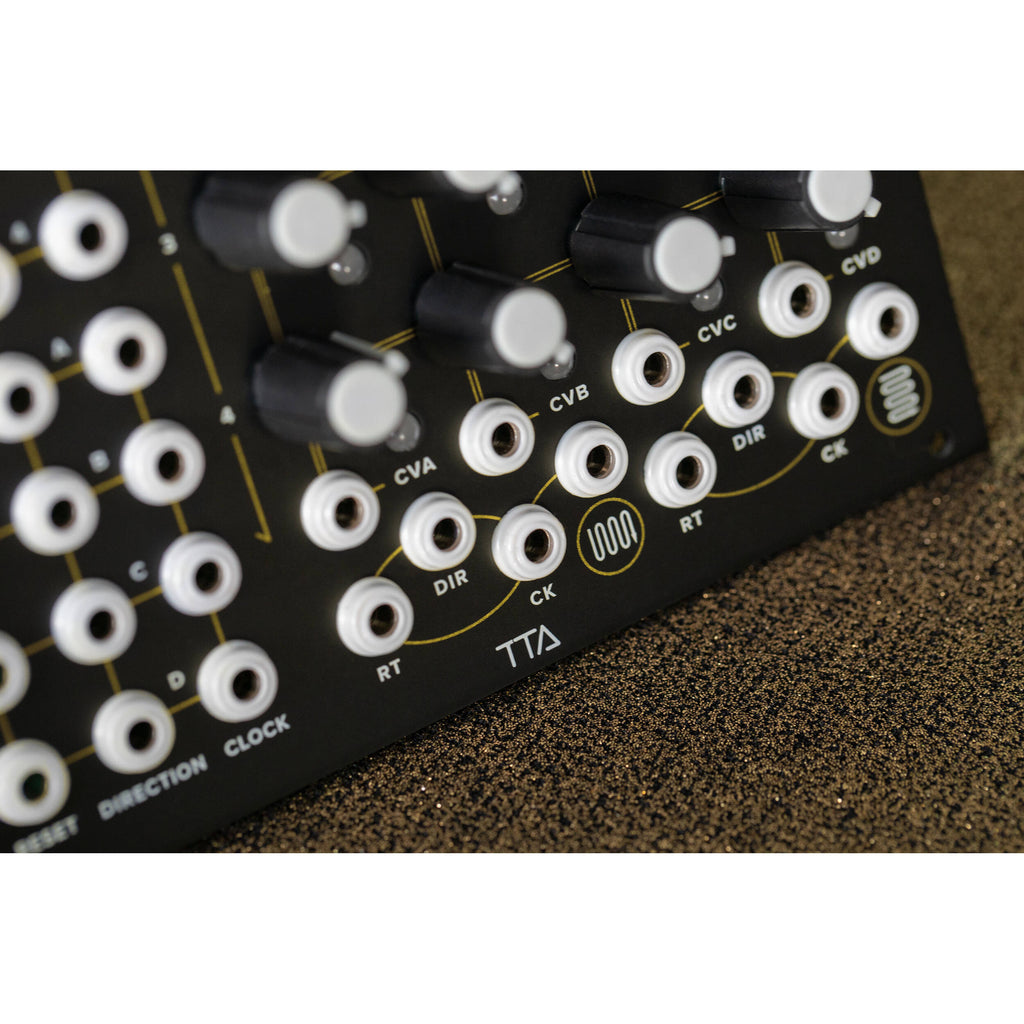

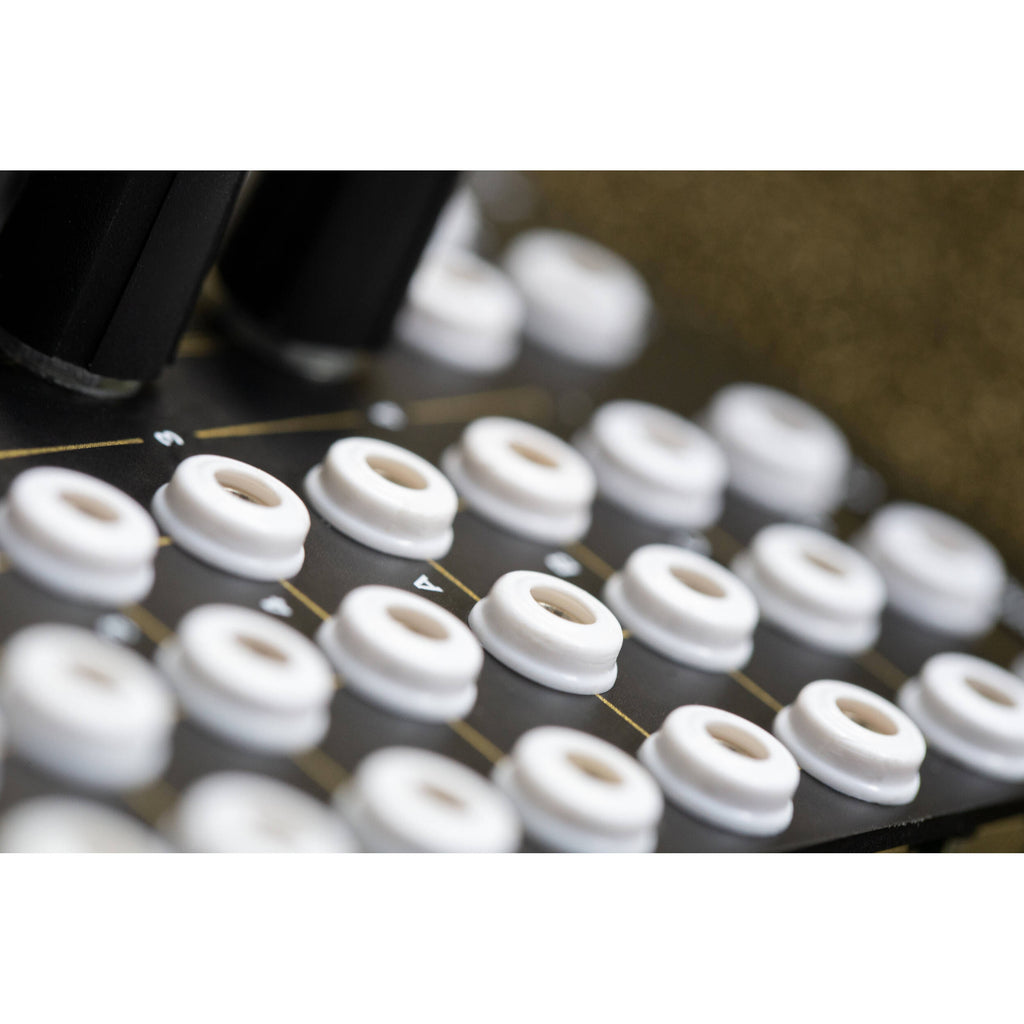

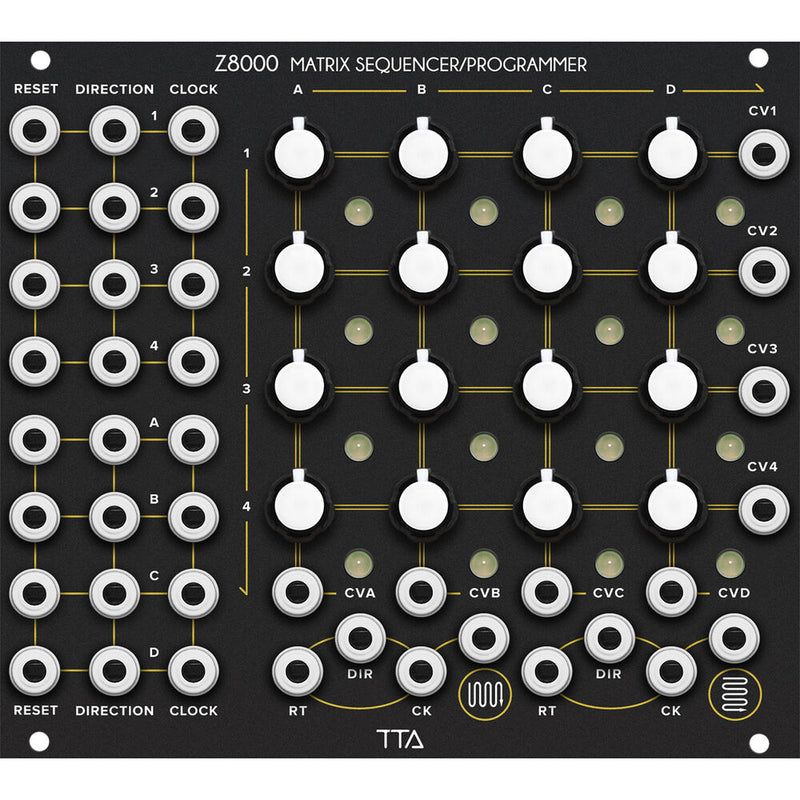

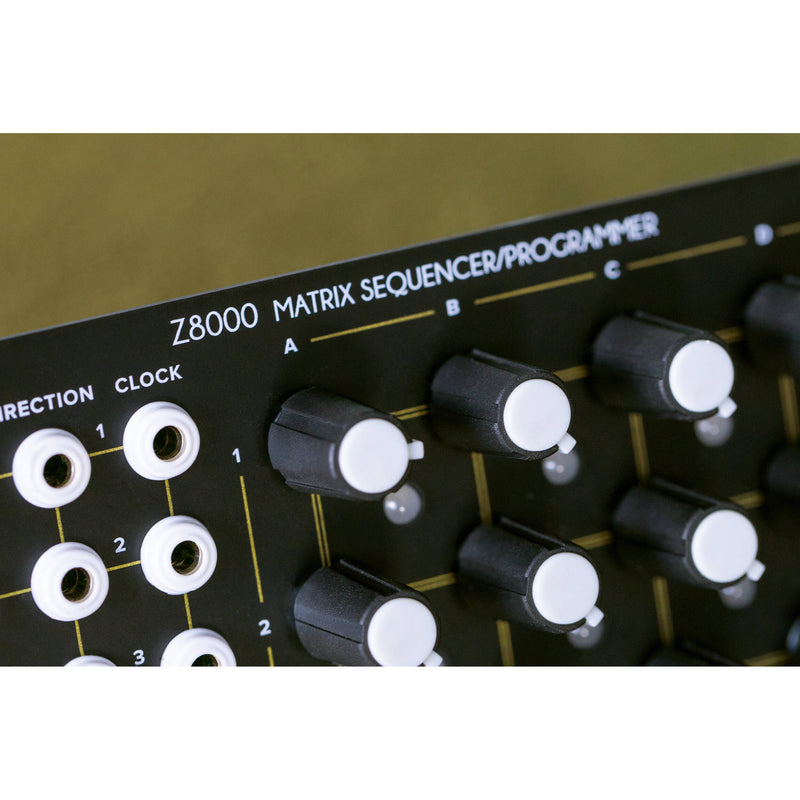

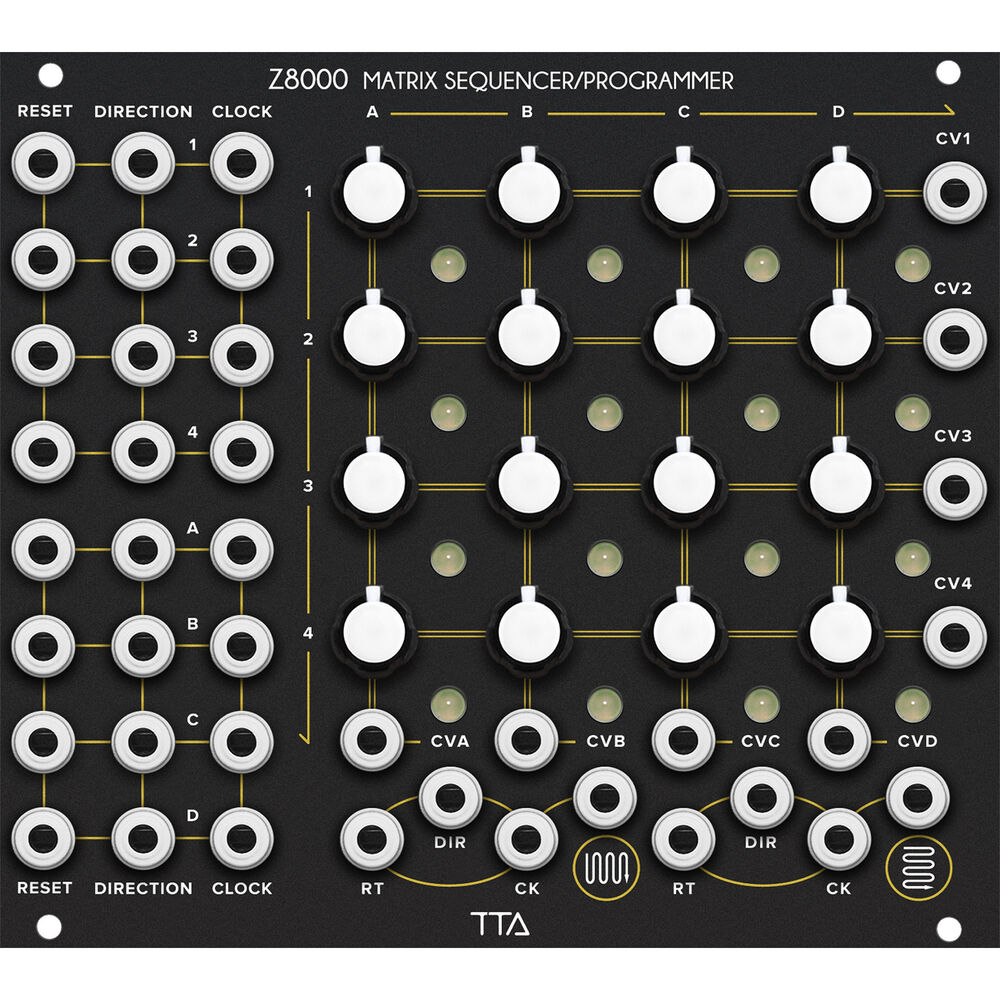

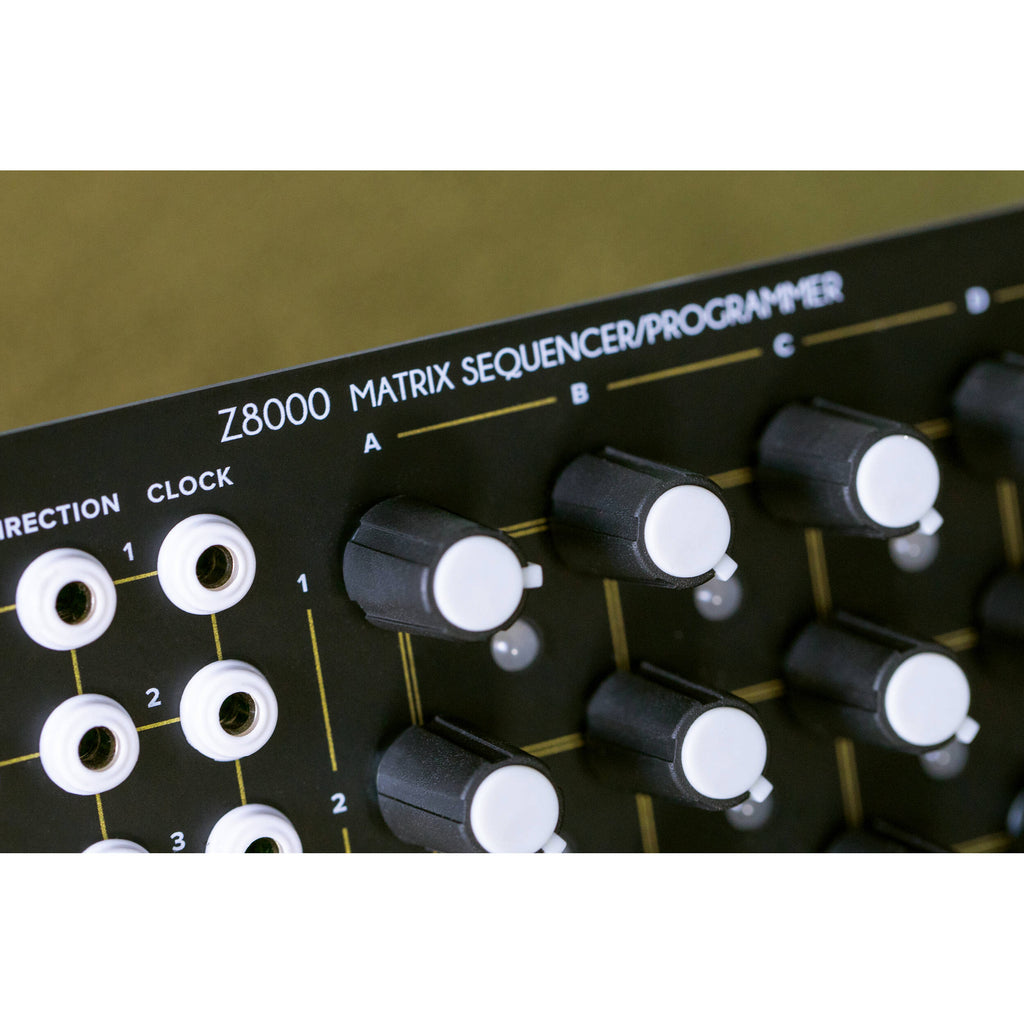

TipTop Audio Z8000 BK Overview
- 1Description
- 2At a Glance
- 3Sequencers
- 4Eurorack Ready
Create polyrhythmic sequences with unprecedented motion complexity with the black Tiptop Audio Z8000, the ultimate modulation source that simultaneously modulates up to 10 CV parameters using 10 integrated sequencers, each with their own individual CV output as well as Clock, Direction, and Reset inputs. The module ships with a ribbon power cable.
At a Glance
- Simultaneously modulate up to 10 CV parameters polyrhythmically with unprecedented motion complexity
- One knob affects all 10 CV outputs
- Modify 10 parameters from a single knob
- 30 gate and clock inputs and 10 CV outputs
- All clock inputs can be driven at audio rates
- Pairs well with the Trigger Riot and Circadian Rhythms
- Using it with a quantizer to extend its capabilities as a high-precision 1V/oct note sequencer
Sequencers
The 16 knobs of the Z8000 are accessed by ten sequencers with their own Clock, Direction, and Reset inputs. The ten sequencers are as follows:
- Four 4 step CV sequencers on the horizontal
- Four 4 step CV sequencers on the vertical
- One 16 step CV sequencer on the horizontal
- One 16 step CV sequencer on the vertical
Eurorack Ready
- 28 HP Eurorack format module
- Maximum depth: 0.6" (15mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 70mA, -12V: 10mA
In the Box
- TipTop Audio Z8000 Matrix Sequencer/Programmer Eurorack Module (28 HP, Black)
- Ribbon Power Cable
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- At a Glance
- Sequencers
- Eurorack Ready
TipTop Audio Z8000 BK Specs
Key Specs
| Sound Generation |
Analog
|
| Audio I/O |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
20x 1/8" / 3.5 mm TS CV Input
10x 1/8" / 3.5 mm TS CV Output |
| Patch Points |
30x 1/8" / 3.5 mm TS Input
10x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
70 mA on +12 V Rail
10 mA on -12 V Rail |
| Horizontal Pitch |
28 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
Sequencing & Recording
| Sequencer |
Yes
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
20x 1/8" / 3.5 mm TS CV Input
10x 1/8" / 3.5 mm TS CV Output |
| Patch Points |
30x 1/8" / 3.5 mm TS Input
10x 1/8" / 3.5 mm TS Output |
| Sync I/O |
10x 1/8" / 3.5 mm TS Clock Input
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
70 mA on +12 V Rail
10 mA on -12 V Rail |
Physical
| Horizontal Pitch |
28 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.985 lb
|
| Box Dimensions (LxWxH) |
8 x 5.1 x 2.4"
|
