Description

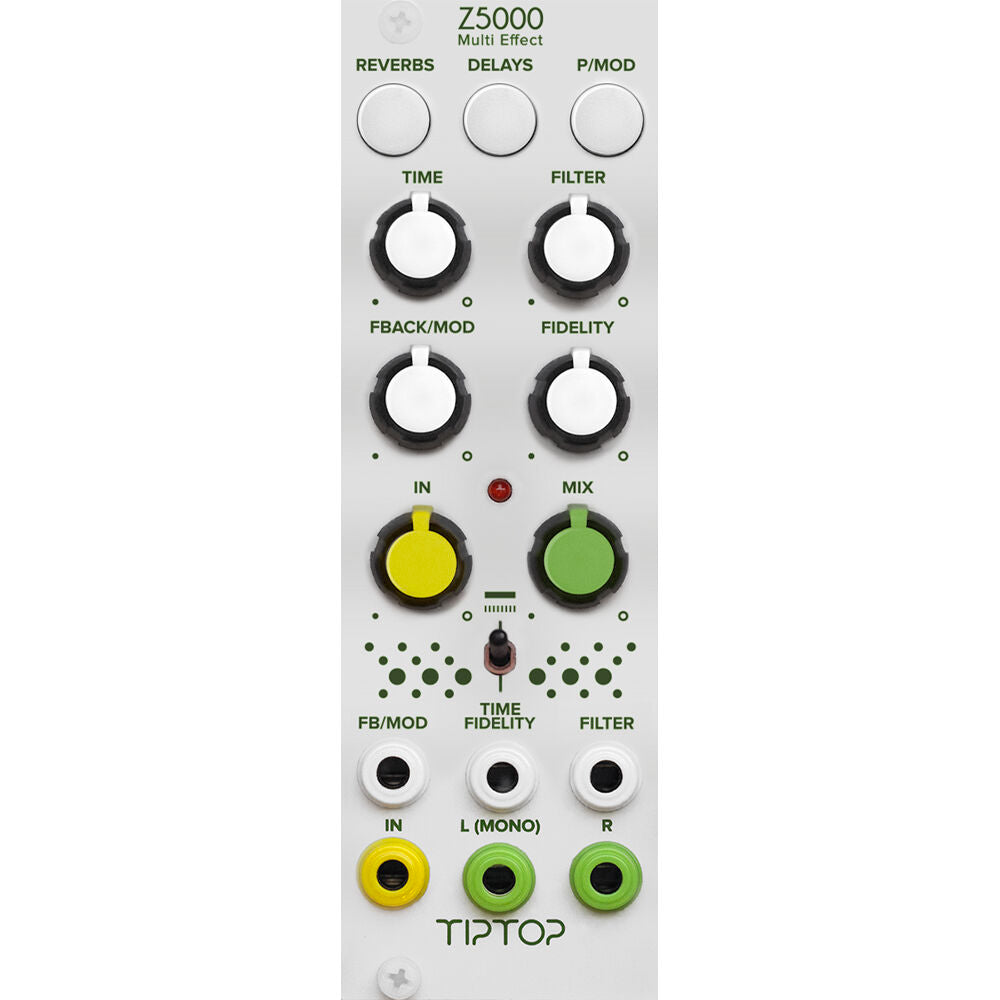

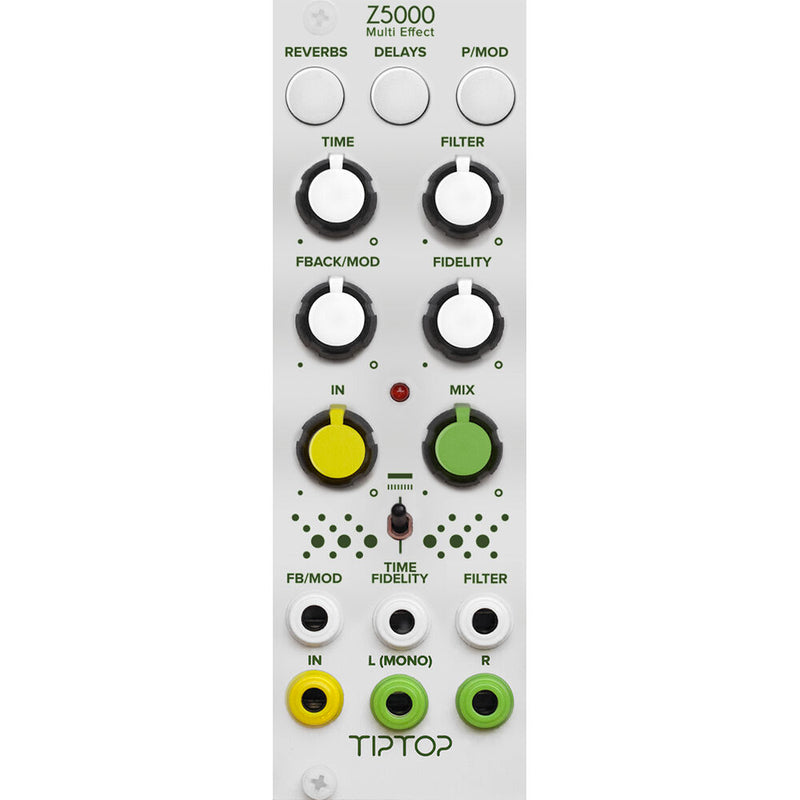

TipTop Audio Z5000 WH Overview
- 1Description
- 2At a Glance
- 3Effects
- 4Eurorack Ready
Add amazing effects to your modular setup with the white Tiptop Audio Z5000, a classic multi-effects processor in a Eurorack module, well suited for adding depth, expression, and ambience to your patches. The module offers voltage control over Feedback/Modulation, Time/Fidelity, and Filter. There are three groups of eight effects including Reverb, Delay, and Pitch/Mod for a total of 24 patches. The Z5000 includes a ribbon power cable.
At a Glance
- Compact stereo multi-effect
- Voltage-controlled parameters
- VC analog clock generator drives the DSP chip
- 24 of Tiptop Audio's reverbs, delays, modulation, harmonization, and pitch-modulated effects
- Several programs in the Z5000 combine more than one effect in series or parallel that represent studio techniques from the early days to modern times, often leaning toward the more experimental side.
Effects
REVERB
- Hall
- Plate
- '80s Verb
- Gate
- Room
- Void
- Delay+Hall
- Shimmer
DELAY
- Mono Digital Delay
- Mono Tape Echo
- Ping Pong Digital Delay
- Ping Pong Tape Echo
- Tape Multi-Head Blend
- Diffuse Band Delays
- Tape Chorus
- Warp Pong
PITCH/MOD
- Stereo Chorus
- Stereo Flanger
- Vintage Ensemble
- Ahhhnsemble
- Formant Delay
- Dual Microshift Delay
- Dual Interval Delays
- Detuned Taps
Eurorack Ready
- 8 HP Eurorack format module
- Maximum depth: 1.5" (40mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 100mA, -12V: 20mA
In the Box
- TipTop Audio Z5000 Multi-Effects Processor Eurorack Module (8 HP, White)
- Ribbon Power Cable
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- At a Glance
- Effects
- Eurorack Ready
TipTop Audio Z5000 WH Specs
Key Specs
| Sound Generation |
Digital
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Input
2x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
3x 1/8" / 3.5 mm CV Input
|
| Patch Points |
4x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| Eurorack Current Consumption |
100 mA on +12 V Rail
20 mA on -12 V Rail |
| Horizontal Pitch |
8 HP
|
General
| Item Type |
Eurorack Module
|
| Sound Generation |
Digital
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Effects |
Yes
|
| Built-In Speaker |
No
|
Synthesis
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
Sequencing & Recording
| Sequencer |
No
|
| Arpeggiator |
No
|
Connectivity
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Input
2x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
3x 1/8" / 3.5 mm CV Input
|
| Patch Points |
4x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| Sync I/O |
No
|
Power
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
100 mA on +12 V Rail
20 mA on -12 V Rail |
Physical
| Horizontal Pitch |
8 HP
|
| Included Accessories |
No
|
Packaging Info
| Package Weight |
0.38 lb
|
| Box Dimensions (LxWxH) |
6 x 3.5 x 2"
|
