Description

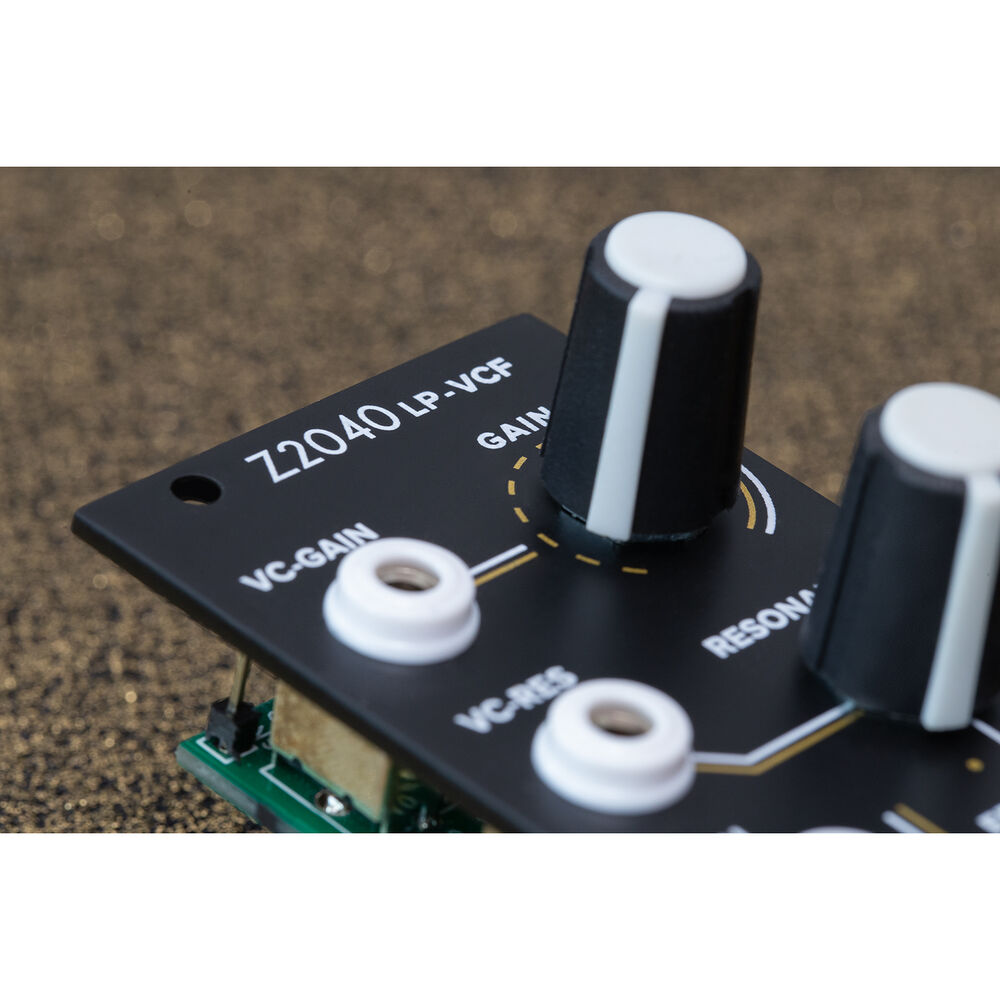

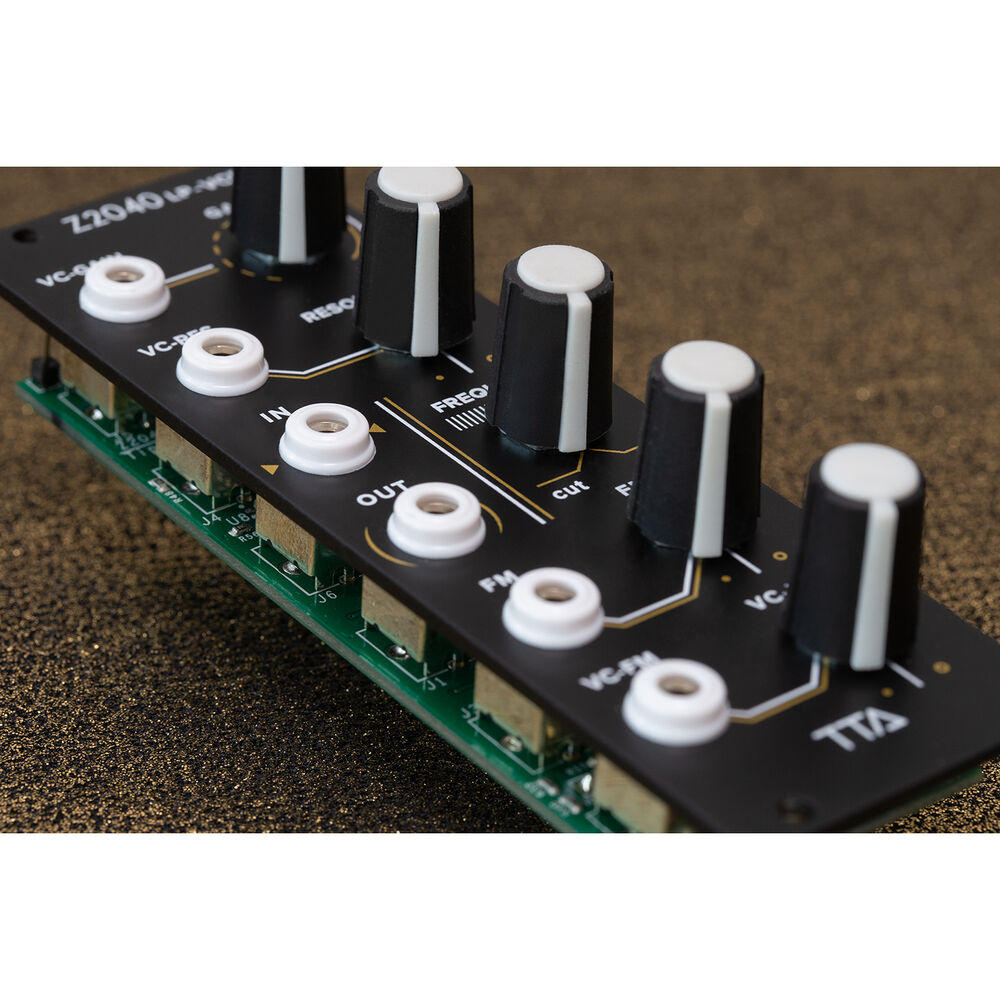

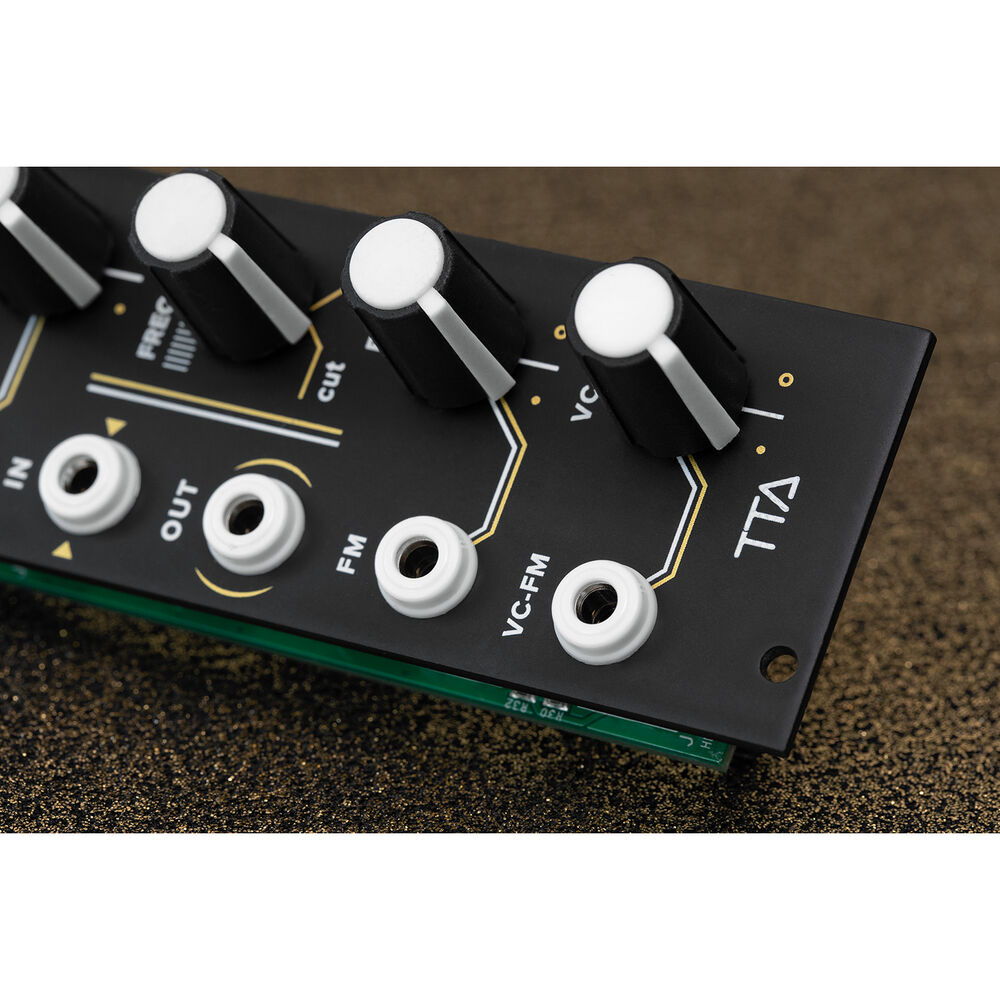

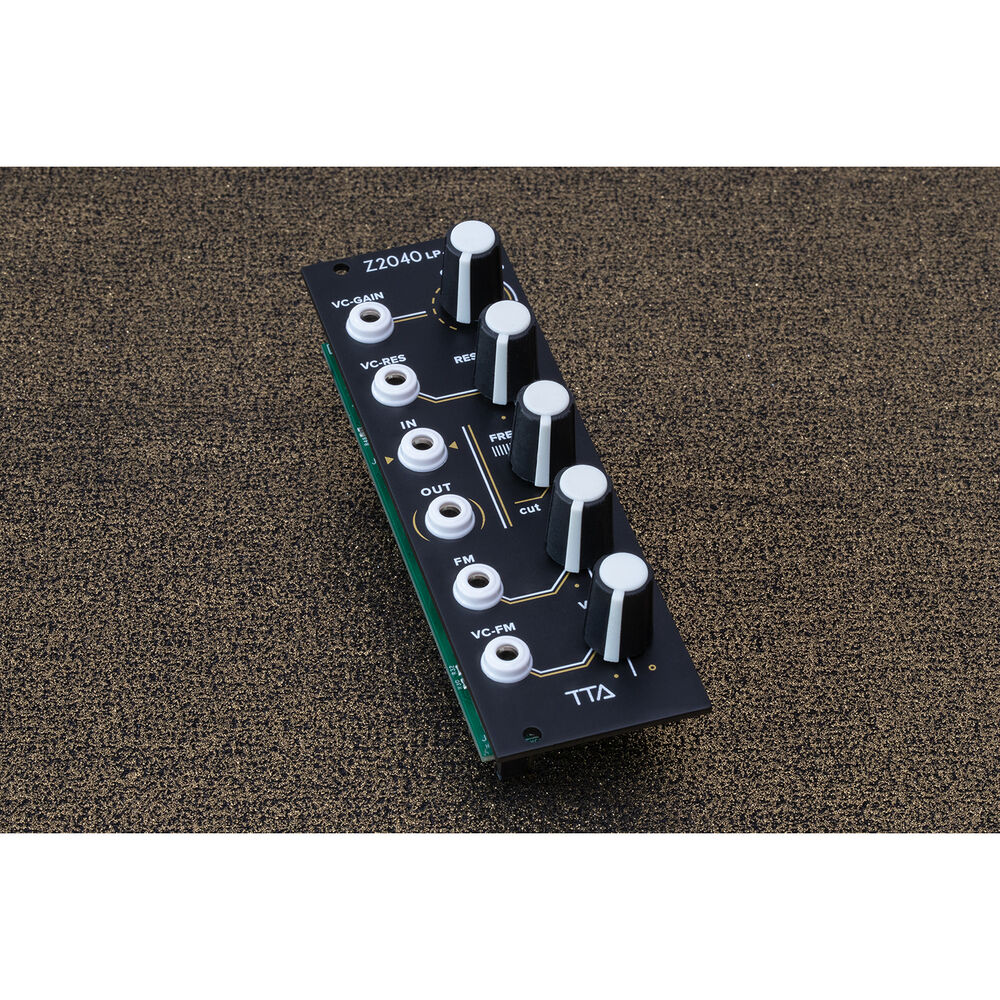

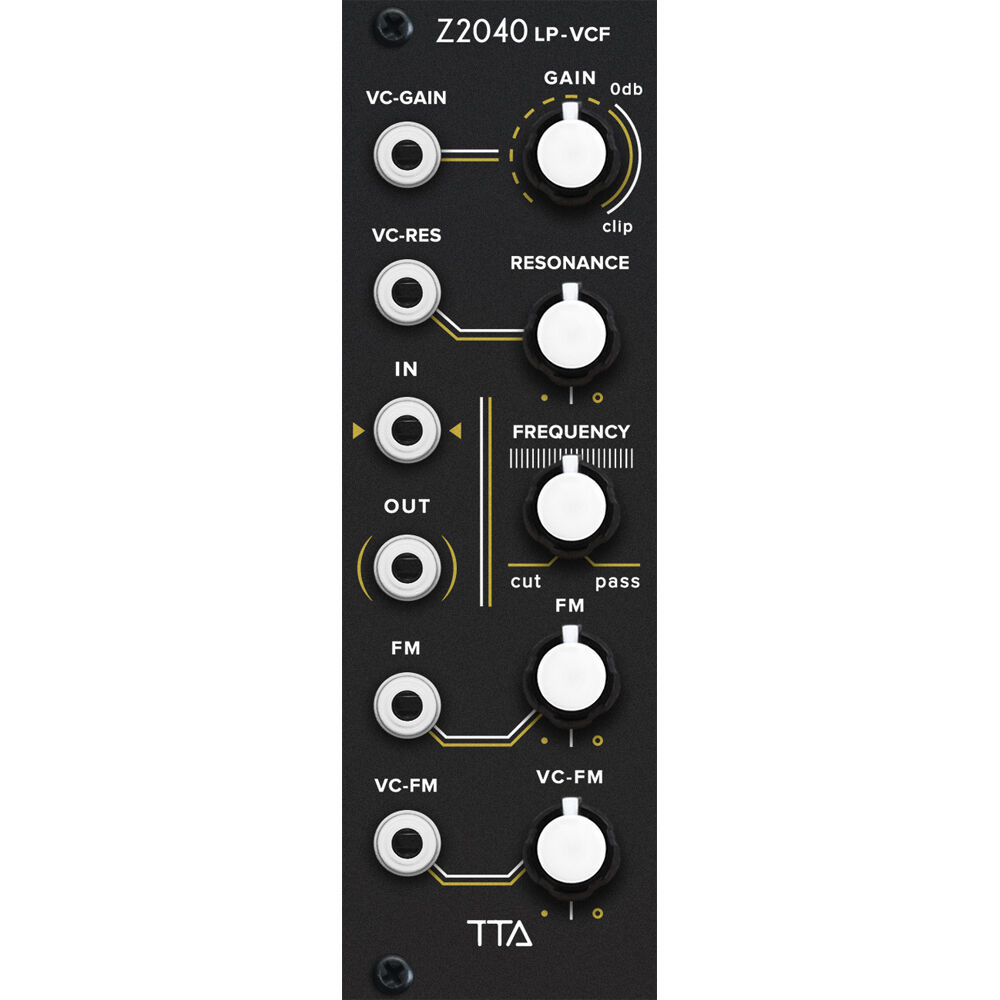

TipTop Audio Z2040 Overview
Recreate the sounds of your favorite synths with the black TipTop Audio Z2040, a 24 dB analog low-pass filter that's similar to the one used in the Prophet 5, Emu samplers, and PPG synthesizers. Frequency sweeps make thick bass lines and leads with great dynamics for a lush, big, and creamy signature sound.
When modulated with audio frequencies through its various inputs, the Z2040 gets quite colorful and is capable of creating many new sounds and textures as the forces of the incoming waves and their harmonics blend through the filter�s nonlinear circuit. When set with resonance feedback fully up, the Z2040 transforms into a pure sine-core VC-Oscillator, great for making snappy percussive elements and whistling sounds. The module ships with a ribbon power cable.
- Discrete design 4-pole low-pass filter
- Similar to the SSM2040 filter chip used in the '80s Prophet 5 Rev 2 synthesizer, and its brother the SSM2044 used in the famous early EMU samplers and PPG synthesizers of the '80s. Both filters are considered by many to be the best sounding filters ever
- Four modulation inputs are built to handle CV and audio signals, enabling deep modulation of the filter core and passing signals
- A voltage-controlled resonance input is provided to modulate and clip the sine wave produced by the filter feedback loop
- Frequency Modulation (FM) input provides dynamic filter sweeps and the unique VC-FM index allows modulation of the incoming FM signals
- Includes audio VCA that can be configured to act upon the input or the output of the filter
- 8 HP Eurorack format module
- Maximum depth: 1.7" (42mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 20mA, -12V: 20mA
In the Box
- TipTop Audio Z2040 24 dB Low-Pass Filter Eurorack Module (8 HP, Black)
- Ribbon Power Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
TipTop Audio Z2040Specs
| Sound Generation |
Analog
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible)
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) |
| MIDI I/O |
No
|
| CV/Gate I/O |
4x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
5x 1/8" / 3.5 mm TS Input
1x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
20 mA on +12 V Rail
20 mA on -12 V Rail |
| Horizontal Pitch |
8 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
1x VCA
|
| Envelopes |
No
|
| Filters |
Number of Filters: 1 per Patch
Characteristic: Analog Prophet-Style Type: Low-Pass Slope: 4-Pole/24 dB (LPF) Controls: Cutoff, Resonance, FM |
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Input (Eurorack Compatible)
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible) |
| MIDI I/O |
No
|
| CV/Gate I/O |
4x 1/8" / 3.5 mm TS CV Input
|
| Patch Points |
5x 1/8" / 3.5 mm TS Input
1x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
20 mA on +12 V Rail
20 mA on -12 V Rail |
| Horizontal Pitch |
8 HP
|
| Included Accessories |
No
|
| Package Weight |
0.33 lb
|
| Box Dimensions (LxWxH) |
6.4 x 2.5 x 2.1"
|
