Description
TipTop Audio SD808 Overview
- 1Description
- 2At a Glance
- 3The Making of the SD808
- 4Advanced Circuits
- 5Eurorack Ready

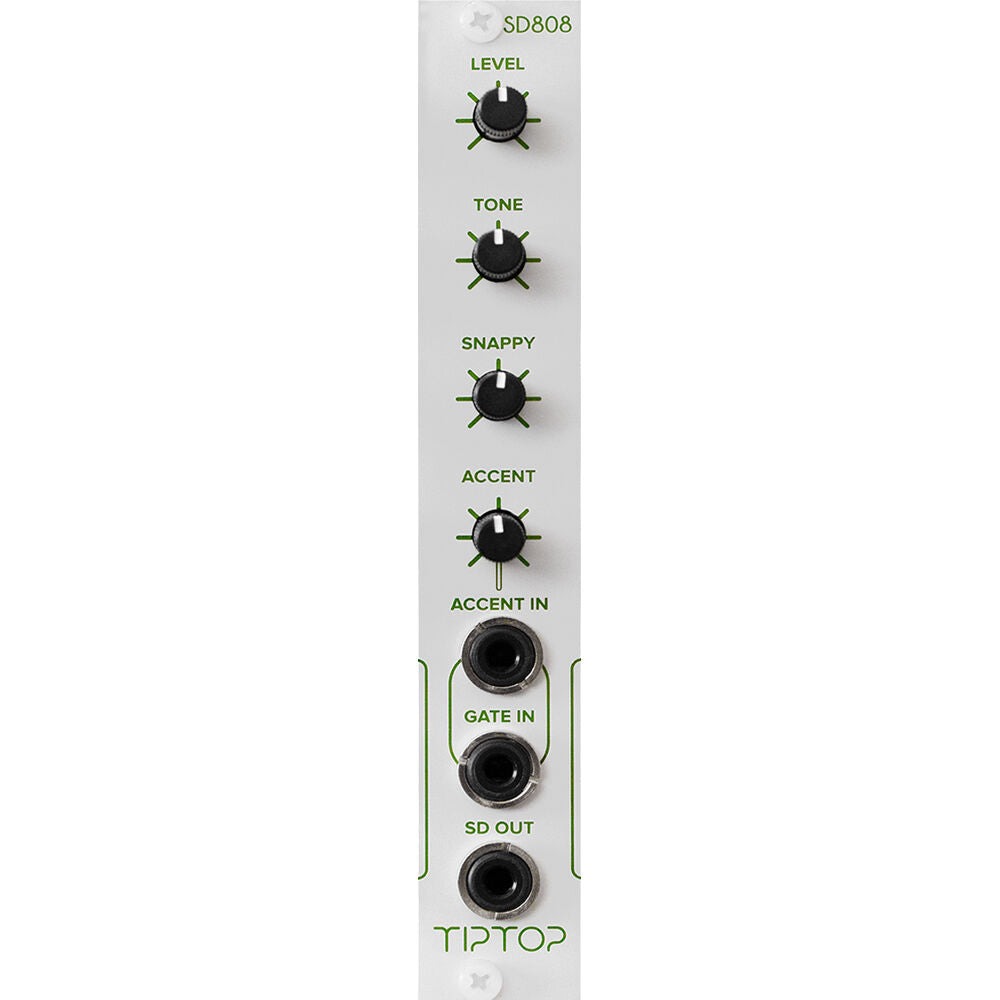

Turn your modular system into a self-contained music machine with the Tiptop Audio SD808, a Eurorack module featuring the original 808 analog snare drum circuit. Adapting the circuit to the modular format has allowed for added special features like independent accent level, a high-powered gain stage, an input pulse-shaper, and an adjustable noise source, all without compromising the signature sound of the TR-808 snare drum.
The SD808 sounds tight and extremely snappy because you can control the VCA envelope amplitude. The sound is made with three analog sound generators mixed together: two oscillating sine waves and a noise source. The SD808's front panel controls have a lot of sweet spots, with sounds that are not just limited to snare drum sounds. It can also create other electronic percussive elements. The module ships with a ribbon power cable.
- Original TR-808 analog snare drum circuit adapted for use in Eurorack modular synthesizer format
- Designed to sound like a fresh out-of-the-box '80s TR-808 snare
- Independent accent levels
- High-powered gain stage
- Dual input pulse-shaper
- Adjustable noise source
- SD808 is not just limited to snare drum sounds; it can also create other electronic percussive elements
- Like other drums in this series, the SD808 includes a high-powered output gain stage capable of producing signals up to 20 V p-p, allowing you to get an array of harmonized snare drums sounds with even tighter attacks.
- On the inputs, Tiptop Audio designed an input pulse-shaper circuit, so you can trigger the SD808 with trigger/gate signals from your own step sequencer, clock dividers, or any other pulse/clock sources. This eliminates the need to shape pulses sent to the module, and ensures the same stable sound at peak power, regardless of your pulse source.
- All these unique features make integrating this legendary sound generator into your modular synth easy, unleashing the power of real analog drums.
- 4 HP Eurorack format module
- Maximum depth: 0.6" (14mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 18mA, -12V: 16mA
In the Box
- TipTop Audio SD808 Snare Drum Eurorack Module (4 HP)
- Ribbon Power Cable
- Limited 1-Year Manufacturer Warranty
- Description
- At a Glance
- The Making of the SD808
- Advanced Circuits
- Eurorack Ready
TipTop Audio SD808 Specs
| Sound Generation |
Analog
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible)
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS Gate/Trigger Input
|
| Patch Points |
2x 1/8" / 3.5 mm TS Input
1x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
18 mA on +12 V Rail
16 mA on -12 V Rail |
| Horizontal Pitch |
4 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible)
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS Gate/Trigger Input
|
| Patch Points |
2x 1/8" / 3.5 mm TS Input
1x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
18 mA on +12 V Rail
16 mA on -12 V Rail |
| Horizontal Pitch |
4 HP
|
| Included Accessories |
No
|
| Package Weight |
0.205 lb
|
| Box Dimensions (LxWxH) |
5.5 x 3.2 x 1.8"
|
