Description

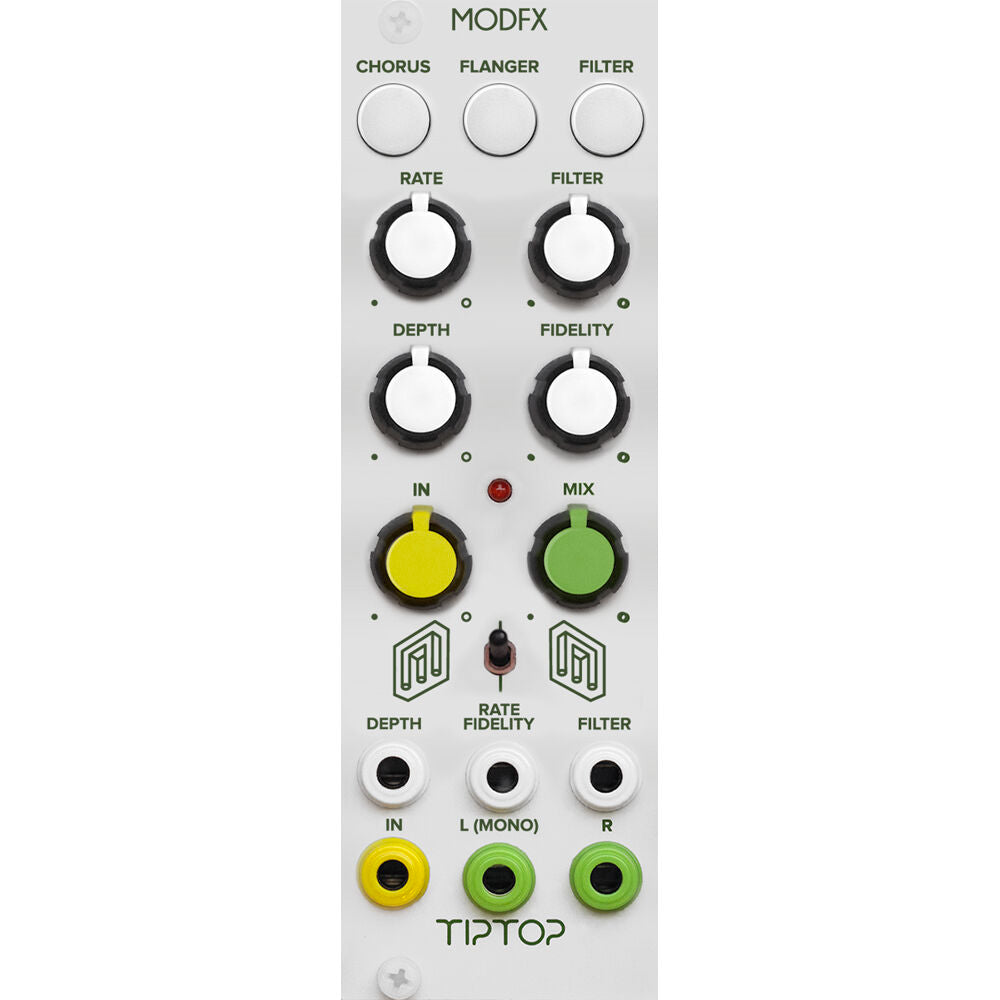

TipTop Audio MODFX WH Overview
- 1Description
- 2At a Glance
- 3Effects
- 4Eurorack Ready
Add amazing modulation effects to your modular setup with the white Tiptop Audio MODFX, a classic modulation effects processor in a Eurorack module, well suited for adding depth, expression, and ambience to your patches. The module offers voltage control over Depth, Rate/Fidelity, and Filter.
MODFX offers three groups of eight effects including Chorus, Flanger, and Filter. The Chorus bank provides a subtle process that widens and deepens the source sound, while the Flanger bank offers the modulation of very short delay times and includes Karplus and Resonant pitch effects and panning using the Haas effect. The Filter bank features a set of highly modulated and unusual filtering options. The MODFX includes a ribbon power cable.
- Compact stereo multi-effect
- Voltage-controlled parameters
- VC analog clock generator drives the DSP chip
- 24 modulation effects organized into 3 banks: Chorus, Flanger, and Filter
- Modulations effects from classic stomp box and rack effects to more experimental processing not found in any other hardware.
- One of the strengths of this module is the creative ways it moves static mono sources into expansive stereo sound fields.
- Vintage Random Vibrato
- Dimension
- Vintage Ensemble
- 6 Voice Chorus
- Dual Vibrato
- Diffuse Chorus
- Random Chorus 4 Voice
- Tri Stereo Chorus
Flanger
- Dual Flange/Pan
- Thru Zero Flanger
- Short Karplus
- Dual Karplus
- Interval Karplus
- Chord Resonator
- Haas Panner
- Haas Detune
Filter
- Mono 12-Stage Phaser
- Dual 4- and 8-Stage Phaser
- Quad Bandpass LFO
- Many 1 Pole
- Tremolo Pan
- Tape Filter
- Formant Ping-Pong Delay
- Ahh Detuned
- 8 HP Eurorack format module
- Maximum depth: 1.5" (40mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 100mA, -12V: 20mA
In the Box
- TipTop Audio MODFX Modulation Effects Processor Eurorack Module (8 HP, White)
- Ribbon Power Cable
- Limited 1-Year Manufacturer Warranty
- Description
- At a Glance
- Effects
- Eurorack Ready
TipTop Audio MODFX WH Specs
| Sound Generation |
Digital
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Input
2x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
3x 1/8" / 3.5 mm CV Input
|
| Patch Points |
4x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| Eurorack Current Consumption |
100 mA on +12 V Rail
20 mA on -12 V Rail |
| Horizontal Pitch |
8 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Digital
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Effects |
Yes
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Input
2x 1/8" / 3.5 mm TS Unbalanced Modular/Eurorack Output |
| MIDI I/O |
No
|
| CV/Gate I/O |
3x 1/8" / 3.5 mm CV Input
|
| Patch Points |
4x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
100 mA on +12 V Rail
20 mA on -12 V Rail |
| Horizontal Pitch |
8 HP
|
| Included Accessories |
No
|
| Package Weight |
0.385 lb
|
| Box Dimensions (LxWxH) |
5.9 x 2.9 x 2.1"
|
