Description

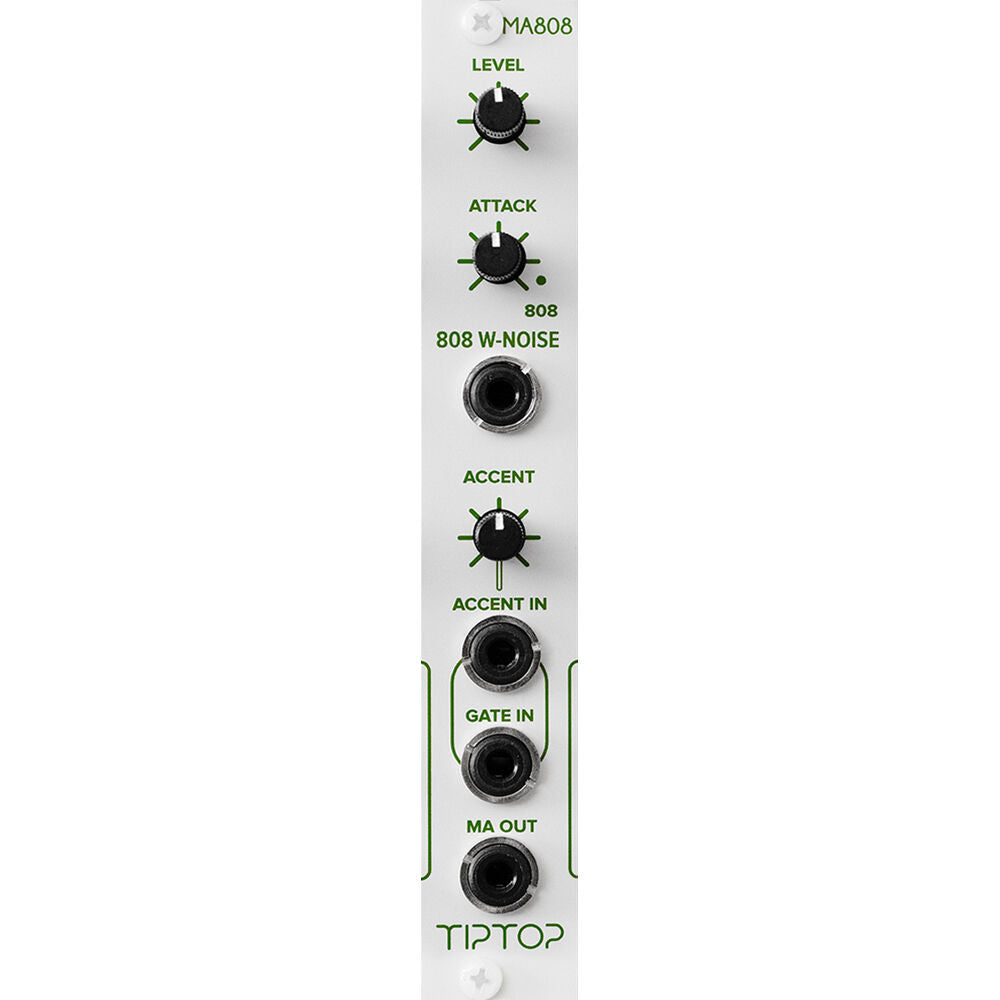

TipTop Audio MA808 Overview
Turn your modular into a self-contained music machine with the Tiptop Audio MA808, a Eurorack module featuring the original 808 analog maracas drum voice as well as a white noise generator. The MA808 is an exact reproduction of the original circuit, which sounds like a fresh machine coming off the assembly line back in the '80s.
The module features an attack knob that turns the sound from a sharp edged hi-hat and up to a slow rise exponential attack maracas sound (dot on the scale indicates the original 808 set position). The MA808 also provides the continuous analog white noise generator of the 808 machine: a full spectrum of harmonics ideal for use as a starting point for patching your own drum sound or for general use of white noise. The module ships with a ribbon power cable.
- Fluffy, harmonically rich presence that greatly enhances the dynamics of hi-hat sounds in the groove
- Attack control knob turns the sound from a sharp edged hi-hat to a slow-rise exponential attack Maracas sound (dot on the scale indicates the original 808 set position)
- Continuous analog white noise generator for full spectrum harmonics. Great for use as a starting point for patching your own drum sound or for general use of white noise
- The MA808 is an exact reproduction of the original circuit which sound like a fresh machine coming off the assembly line back in the '80s
- Compatible with all the other Tiptop drums in this series
- Includes a hot modular level output gain stage
- Dual input pulse-shaper circuit allows you to trigger the MA808 with trigger/gate signals from step sequencers, clock dividers or any other pulse/clock sources. This eliminates the need to shape pulses sent to the module and ensures the same stable sound at peak power, regardless of your pulse source
- 4 HP Eurorack format module
- Maximum depth: 0.6" (14mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 16mA, -12V: 14 mA
In the Box
- TipTop Audio MA808 Maracas Eurorack Module (4 HP)
- Ribbon Power Cable
- Limited 1-Year Manufacturer Warranty
TipTop Audio MA808 Specs
| Sound Generation |
Analog
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible)
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS Gate/Trigger Input
|
| Patch Points |
2x 1/8" / 3.5 mm TS Input
2x 1/8" / 3.5 mm TS Output |
| Eurorack Current Consumption |
16 mA on +12 V Rail
14 mA on -12 V Rail |
| Horizontal Pitch |
4 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
| Oscillators |
1x Fixed (Noise)
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output (Eurorack Compatible)
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS Gate/Trigger Input
|
| Patch Points |
2x 1/8" / 3.5 mm TS Input
2x 1/8" / 3.5 mm TS Output |
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
16 mA on +12 V Rail
14 mA on -12 V Rail |
| Horizontal Pitch |
4 HP
|
| Included Accessories |
No
|
| Package Weight |
0.2 lb
|
| Box Dimensions (LxWxH) |
6.3 x 2.4 x 1.7"
|
