Description

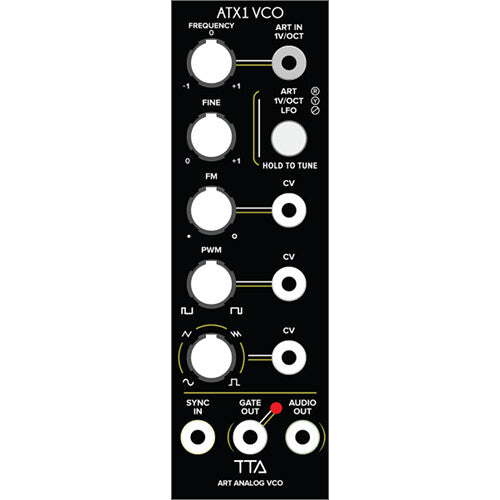

TipTop Audio ATX1 Overview
Create analog polyphonic synths and multimono patches with the Tiptop Audio ATX1, a classic, all-analog saw-core voltage-controlled oscillator (VCO) with three switchable modes (ART, 1V/Oct, LFO), designed as the basic building block for the ART system. ART is the latest Eurorack signal (like CV and gate), but with multiple streams of information including 100% perfect pitch.
In 1V/Oct mode, the ATX1 runs as a standard old-school modular VCO. LFO mode drops the frequency range to CV level and is great for patching vibrato to other ATX1 and VORTEX oscillators. The ATX1 outputs variable waveshapes with manual or CV control. Classic FM, PWM, and hard sync are provided. As with all ART-enabled sound sources, a dedicated gate out ensures the voice envelope or any modulation source is synced to that voice.
- Classic all-analog saw-core VCO
- 3 switchable modes: ART, 1V/Oct, and LFO
- Basic building block for ART systems
- Designed for patching analog polyphonic synths from discrete modules or multimono patches in ART mode
- ART provides 100% accurate tuning and accounts for temperature changes.
- 1V/Oct Mode: Runs as a standard old-school modular VCO
- LFO Mode: Drops frequency range and is great for patching vibrato to other ATX1 and VORTEX sound sources
- Outputs variable waveshapes (sine, triangle, sawtooth, square) with manual or CV control
- Includes Classic FM, PWM, and hard sync
- Dedicated Gate Out in ART mode manages the voice envelopes or any modulation synced to that voice
- 8 HP Eurorack format module
- Maximum depth: 1.6" (40mm)
- Includes power ribbon cable with Eurorack power headers
- Power consumption: +12V: 105mA, -12V: 33mA
In the Box
- TipTop Audio ATX1 ART Analog Oscillator Eurorack Module (8 HP)
- Bus Board Power Cable
- Limited 1-Year Manufacturer Warranty
TipTop Audio ATX1 Specs
| Sound Generation |
Analog
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
5x 1/8" / 3.5 mm CV Input
1x 1/8" / 3.5 mm Gate Output |
| Patch Points |
5x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| Eurorack Current Consumption |
105 mA on +12 V Rail
33 mA on -12 V Rail |
| Horizontal Pitch |
8 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Built-In Speaker |
No
|
| Oscillators |
2x Variable (Sawtooth, Sine, Square, Triangle)
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
No
|
| LFOs |
No
|
| Glide/Portamento |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1x 1/8" / 3.5 mm TS Unbalanced Mono Modular/Eurorack Output
|
| MIDI I/O |
No
|
| CV/Gate I/O |
5x 1/8" / 3.5 mm CV Input
1x 1/8" / 3.5 mm Gate Output |
| Patch Points |
5x 1/8" / 3.5 mm Input
2x 1/8" / 3.5 mm Output |
| Sync I/O |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
105 mA on +12 V Rail
33 mA on -12 V Rail |
| Horizontal Pitch |
8 HP
|
| Included Accessories |
No
|
