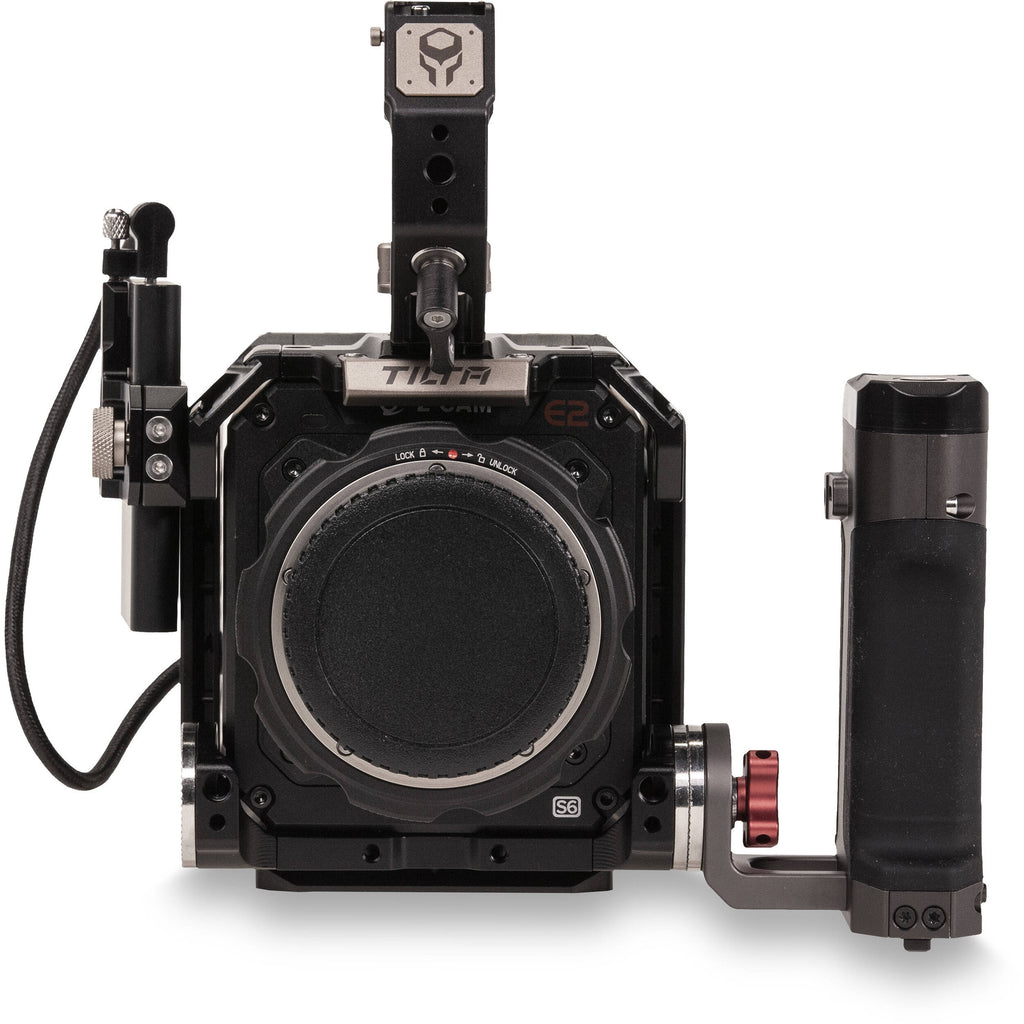

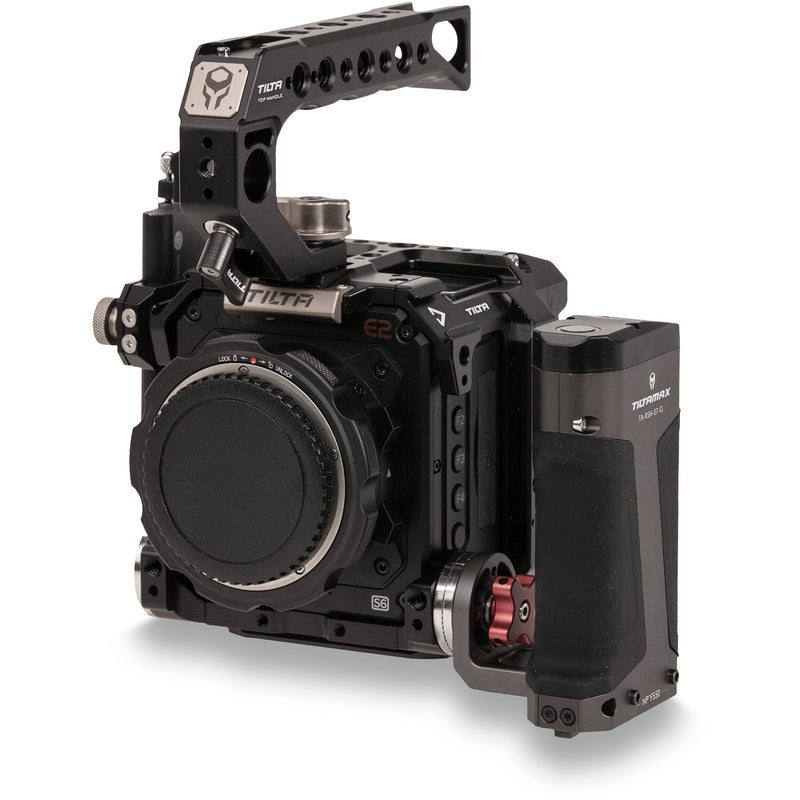

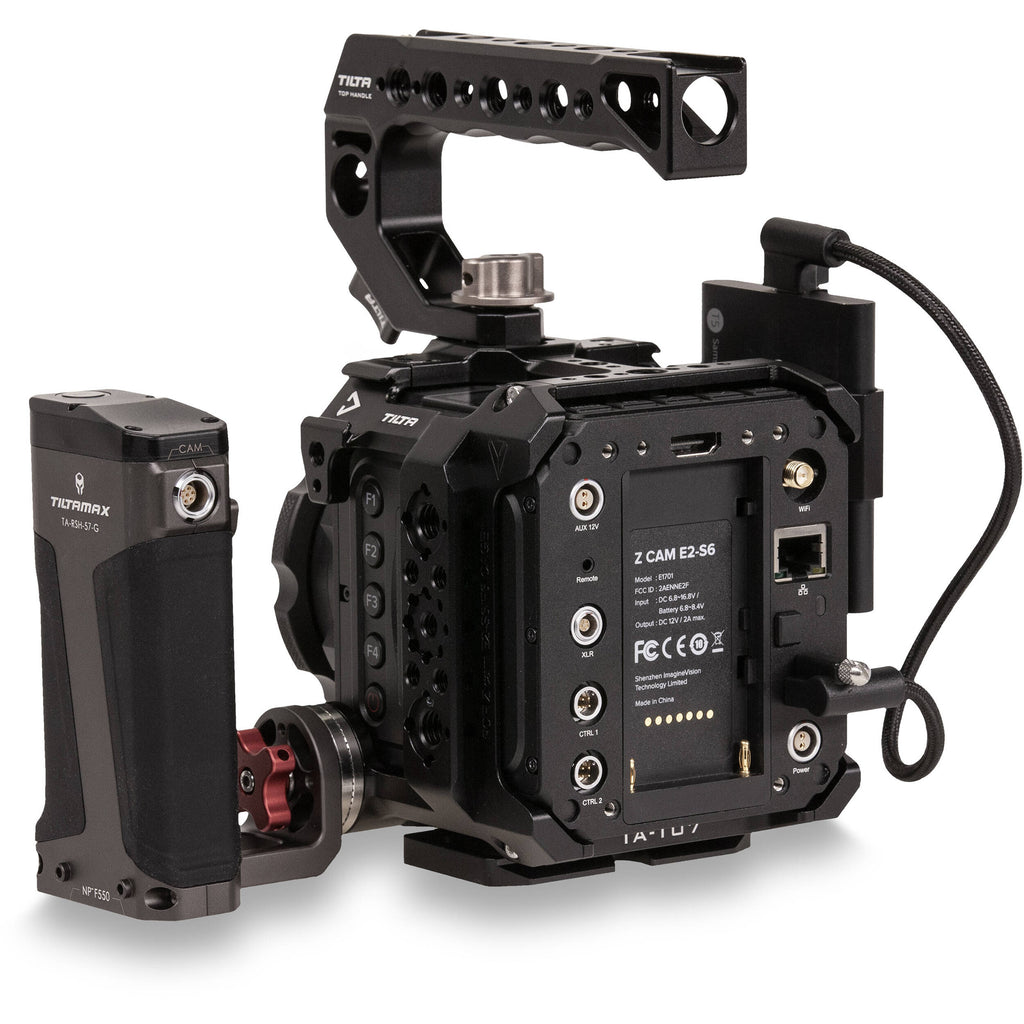

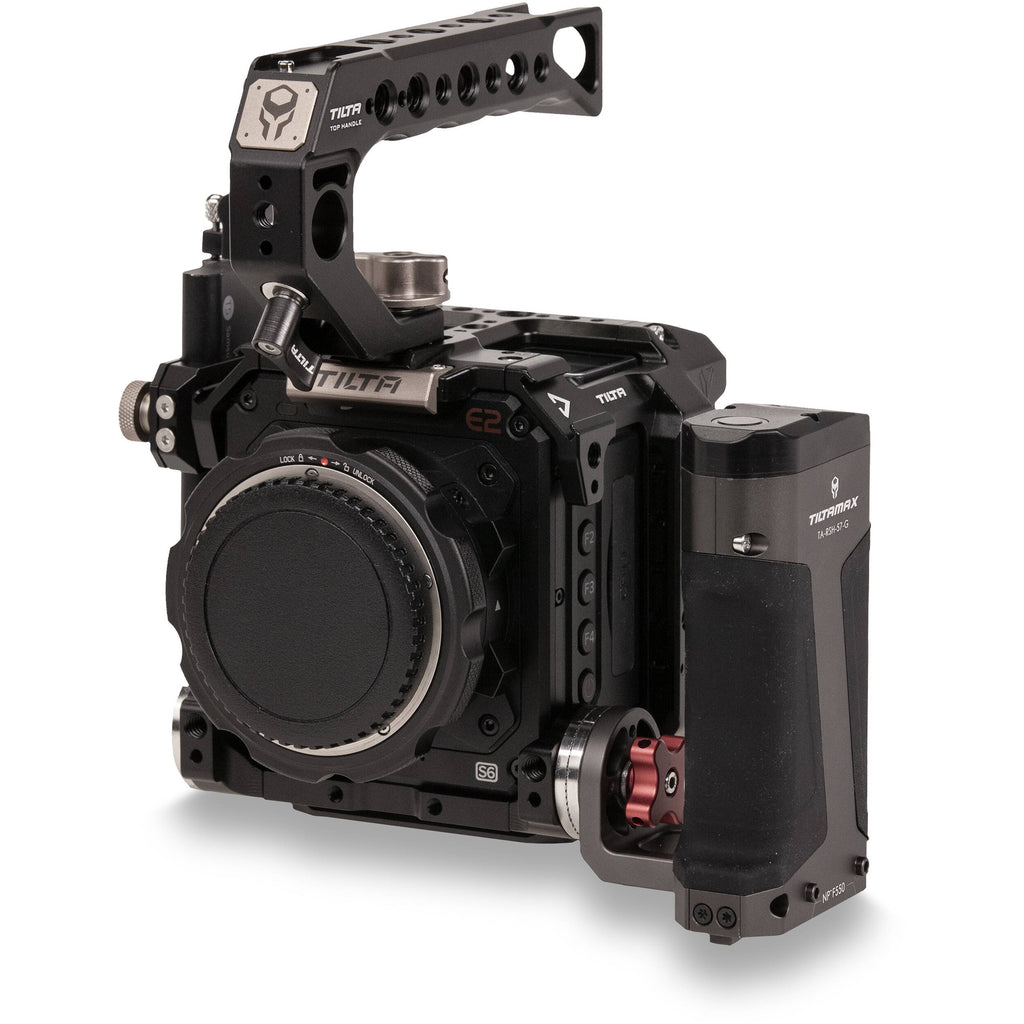

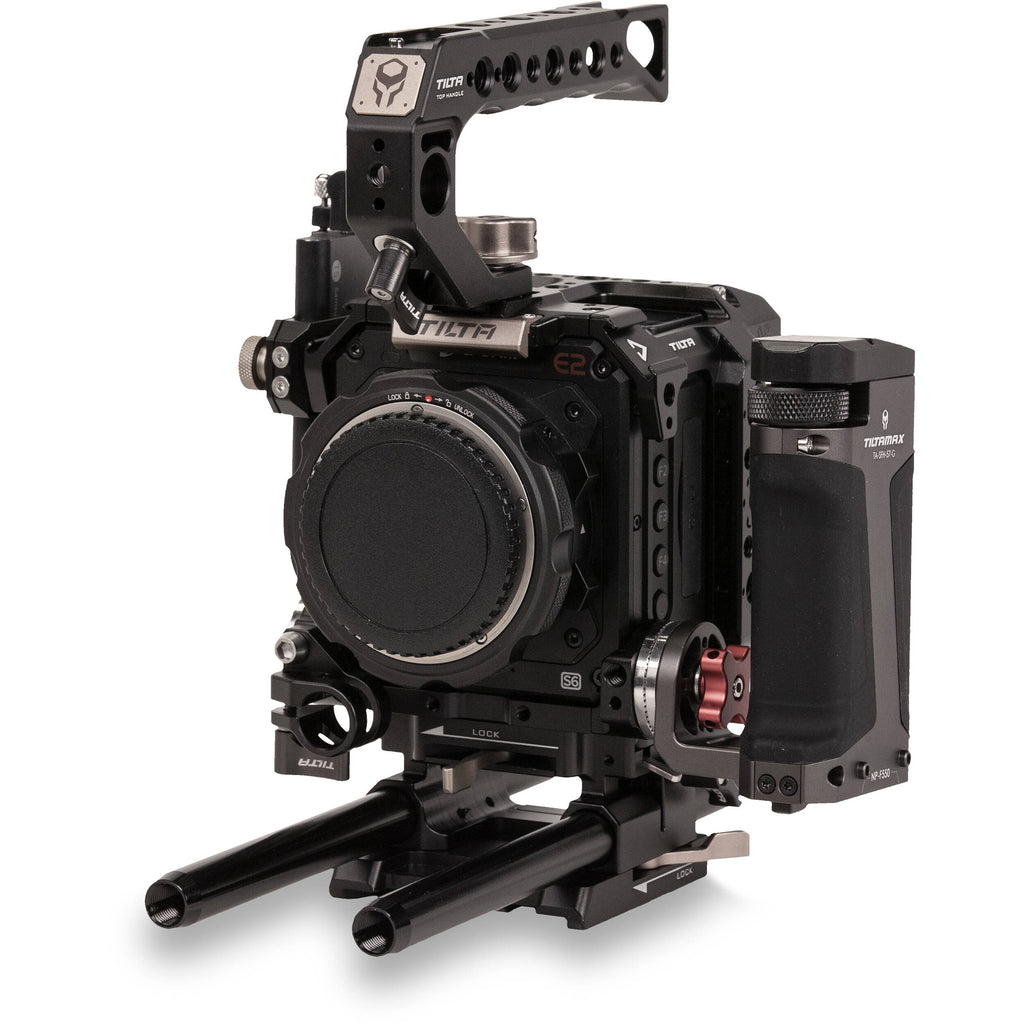

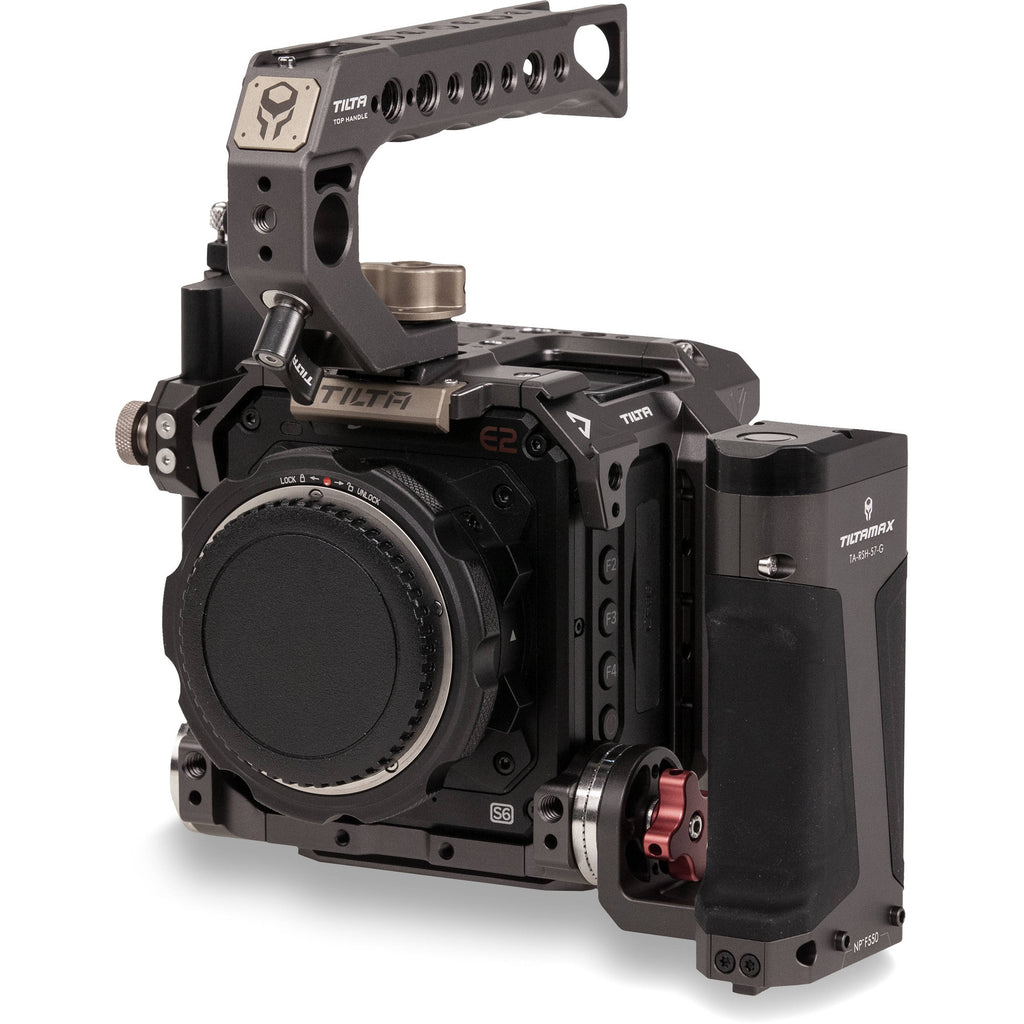

For Z CAM E2-S6 & E2-F6 CamerasFormfitting Full CageF570 Run/Stop Side Handle Type IIQuick Release Top Handle Choose the Tiltaing Z CAM E2-S6/F6 Kit B from Tilta to both protect and rig your Z CAM E2-S6 or E2-F6 camera for cine-style shooting and to access extended battery power. This black kit includes a full camera cage, the side power handle type II with run/stop ability, a 12V micro DC male to Z CAM power cable, a quick release top handle, a Samsung T5 SSD holder, a 90° USB Type-C cable, and both Arca-Swiss and Manfrotto-style quick release plates.
Note: Not compatible with Z CAM E2, E2C, or E2G model cameras. Tilta Full Camera Cage for Z CAM E2-S6/F6 (Black)

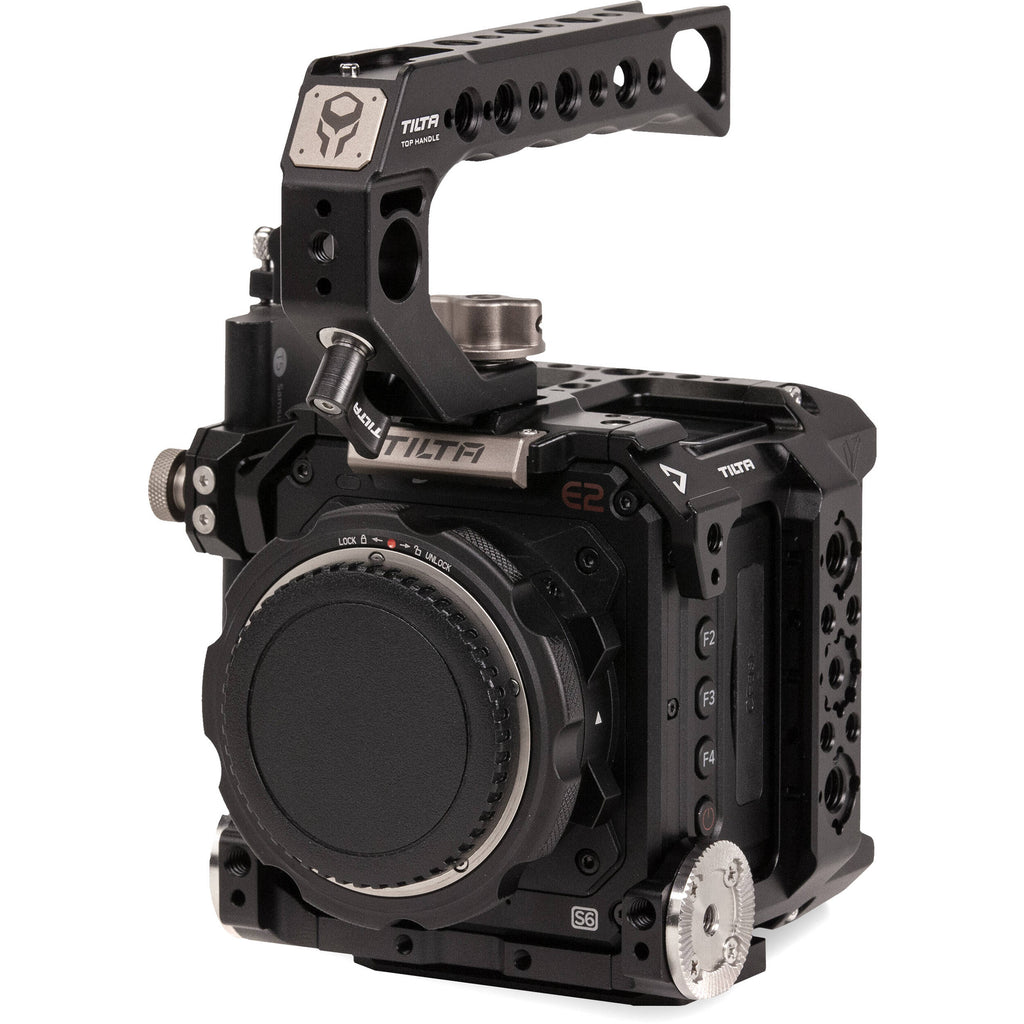

The black Full Camera Cage for Z CAM E2-S6/F6 from Tilta protects your camera while providing a variety of accessory mounting options. This dedicated cage also incorporates two ARRI-style rosettes for attaching handgrips or other components. This cage is compatible with Z CAM E2-S6 and E2-F6 camera bodies.
Constructed from an aluminum alloy and stainless steel, the Tilta Z CAM E2-S6/F6 cage incorporates multiple 1/4"-20, 3/8"-16, and ARRI-style anti-twist threads and one cold shoe mount. Access to the camera's controls and ports is maintained when the cage is mounted on your camera, and the base incorporates several tripod/gimbal mounting holes.
Note: Not compatible with Z CAM E2, E2C, or E2G model cameras. Compatibility Z CAM E2-S6 and E2-F6 cameras UPC: 690770699704 Tilta HDMI Clamp for Tiltaing Z CAM Cage (Black)
This black HDMI Clamp for Z CAM from Tilta secures against both accidental HDMI cable disconnection and port damage to your Z CAM E2 camera. Made from an aluminum alloy and stainless steel, this clamp includes mounting screws.
UPC: 614234706999 Tilta Quick Release Top Handle (Black)
This Tilta Quick Release Top Handle , in black, is a durable, sculpted top handle that attaches securely to a cold shoe and provides accessory mounting points, in addition to a top handle grip for your camera. The quick release handle's features include two cold shoe mounts, one in the front with a spring-loaded safety latch and the second on the back. The handle also features a 15mm rod port and multiple 1/4"-20 and 3/8"-16 threads with and without anti-twist divots.
The aluminum and stainless steel handle attaches to your camera or cage using the included spring-loaded thumbscrew. The 15mm rod port features a locking lever to secure the rod in place. On the front face of the handle, there is a 1/4"-20 threaded mounting hole with anti-twist divots. Multiple 1/4"-20 and 3/8"-16 threaded mounting holes are machined into the top and sides of the handle.
UPC: 631384551422 Tilta 90° USB Type-C Cable for Z CAM E2
The 8" 90° USB Type-C Cable for Z CAM E2 from Tilta is designed to specifically for the Tiltaing Z CAM E2 camera cage. Incorporating two right-angle USB Type-C connectors, this cable is designed to hang flat against the cage and features thumbscrew anchors on each end.
UPC: 631384549702 Tiltaing Side Power Handle Type II for ARRI Rosette (F570, Tilta Gray)
The Tiltaing Side Power Handle Type II from Tilta saves space on your Z CAM camera cage rig by incorporating space for a Sony F570-type battery. This Tilta Gray handle enables you to power your Nucleus-Nano follow focus motor and select accessories.
An 8V micro-USB port outputs power to the motor via a separately available cable, and a 12V barrel output can be used to power an accessory or dummy battery for your camera.
UPC: 631384549771 Tilta 12V Micro DC Male to Z CAM Power Cable
The 12V Micro DC Male to Z CAM Power Cable from Tilta enables you to power your Z CAM E2 camera using an external battery mounted on select Tiltaing side handles.
This cable has a micro DC male connector on one end and a 3-pin LEMO-type connector on the other.
UPC: 631384549726
| Battery Plate Type | None |
| Accessory Mounting | Multiple x 1/4"-20 Thread, Multiple x 3/8"-16 Thread, Multiple x Anti-Twist 3/8"-16 Thread |
| Tripod Mounting | 1/4"-20 Thread, 3/8"-16 Thread |
| Shoe Mounting | 1 x Cold Shoe |
| Rosettes | 2 x ARRI Rosette w/ M6 Thread |
| Construction | Aluminum, Steel |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Support Type | Cage |
| Grip Type | None |
| Camera Compatibility | Z CAM E2-F6, Z CAM E2-S6 |
| Material of Construction | Aluminum, Stainless Steel |
| Dimensions and Weight | Not Specified by Manufacturer |
| Grip Type | Topside Handgrip |
| Hand Orientation | Ambidextrous |
| Ports | None |
| Rotation | None |
| Built-In Controls | None |
| Accessory Mounting | 9 x 1/4"-20 Thread
1 x Anti-Twist 1/4"-20 Thread
9 x 3/8"-16 Thread
2 x Anti-Twist 3/8"-16 Thread |
| Camera Mounting | Yes |
| Tripod Mounting Thread | None |
| Rod Ports | 1 x 15 mm Rod Port |
| Shoe Mounting | 2 x Cold Shoe |
| Rosettes | None |
| Rail Mounting | None |
| Construction | Aluminum, Steel |
| Weight | 6.08 oz / 172 g |
| Package Weight | 0.38 lb |
| Box Dimensions (LxWxH) | 6 x 3.2 x 1.2" |
| Connectors | 2 x USB Type-C (Right-Angle) |
| Length | 8" / 20 cm |
| Weight | Not Specified by Manufacturer |
| Package Weight | 0.055 lb |
| Box Dimensions (LxWxH) | 4.35 x 3.05 x 0.65" |
| Grip Type | Single Handgrip |
| Hand Orientation | Ambidextrous |
| Camera Compatibility | Z CAM E2, Z CAM E2-F6, Z CAM E2-S6 |
| Ports | 1 x Micro-USB (8 VDC)
1 x DC Barrel (12 VDC) |
| Rotation | Yes |
| Built-In Controls | None |
| Accessory Mounting | Yes |
| Camera Mounting | Yes |
| Tripod Mounting Thread | Yes |
| Rod Ports | Yes |
| Shoe Mounting | None |
| Rosettes | 1 x ARRI Rosette w/ M6 Thread |
| Rail Mounting | None |
| Supported Battery Type | Sony L-Series |
| Construction | Aluminum, Steel |
| Connector 1 | 12 V Micro DC Barrel (Male) |
| Connector 2 | 3-Pin LEMO Type |
| Cable Length | Not Specified by Manufacturer |
| Package Weight | 0.05 lb |
| Box Dimensions (LxWxH) | 4.9 x 2.85 x 0.45" |
In the Box
- Tilta Full Camera Cage for Z CAM E2-S6/F6 (Black)
- Tilta HDMI Clamp for Tiltaing Z CAM Cage (Black)
- 2 x Mounting Screw
- Limited 2-Year Warranty
- Tilta Quick Release Top Handle (Black)
- Tilta SSD Drive Holder For T5 (Black)
- Tilta 90° USB Type-C Cable for Z CAM E2
- 2 x Anchor Thumbscrew
- Limited 1-Year Electrical Warranty
- Limited 2-Year Mechanical Warranty
- Tiltaing Side Power Handle Type II for ARRI Rosette (F570, Tilta Gray)
- Limited 2-Year Mechanical Warranty
- Limited 1-Year Electrical Warranty
- Tilta 12V Micro DC Male to Z CAM Power Cable
- Limited 1-Year Electronic Warranty
- Limited 2-Year Mechanical Warranty
- Tilta Quick Release Plate for Tiltaing Camera Cages (Manfrotto Compatible, Black)
- TIAQRBP2B
