Tilta TA-T23-B Overview
-
1Description
-
2Tilta Full Camera Cage for Sony a1 (Tactical Gray)
-
3Tilta Quick Release Top Handle for BMPCC 4K Cage (Tactical Gray)
-
4Tilta HDMI Cable Clamp Attachment for Sony a1 Full Cage (Tilta Gray)
-
5Tilta HDMI Extension Cable for Tiltaing Camera Cages

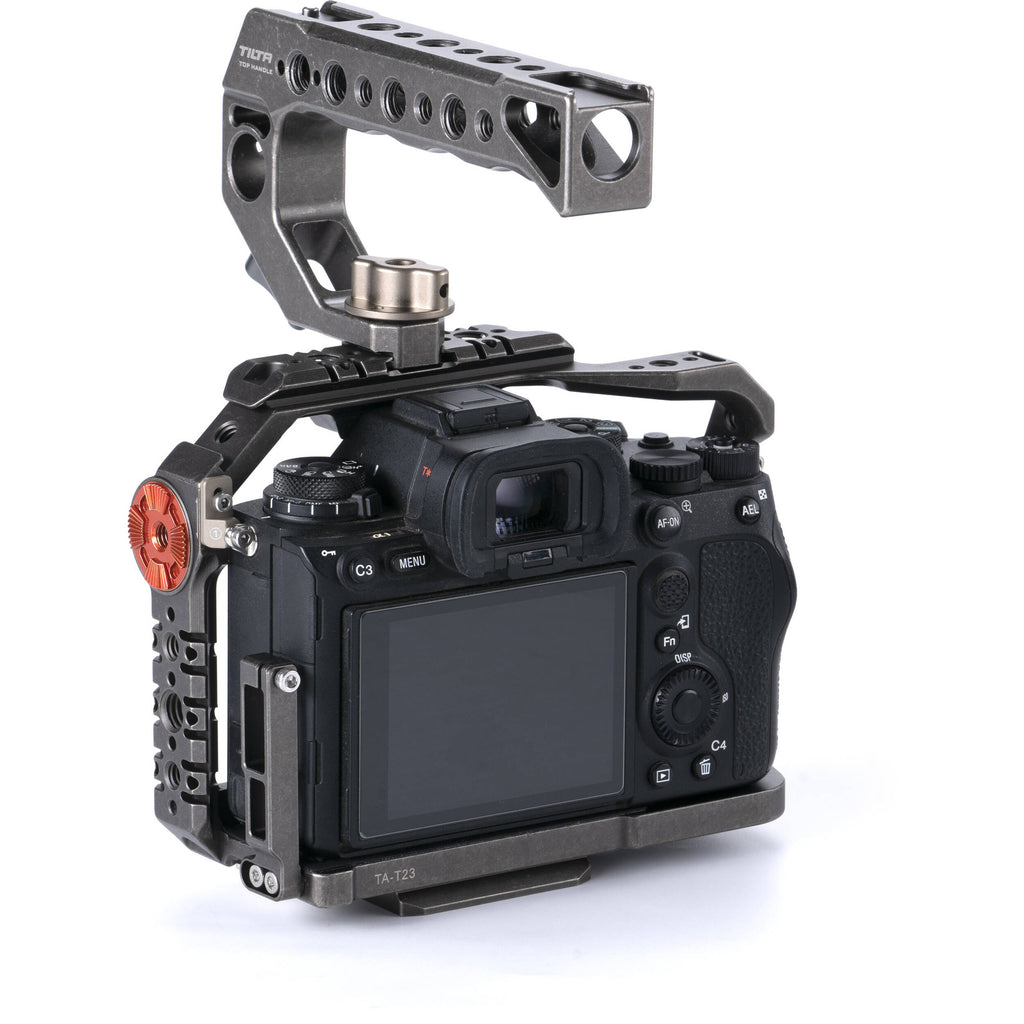

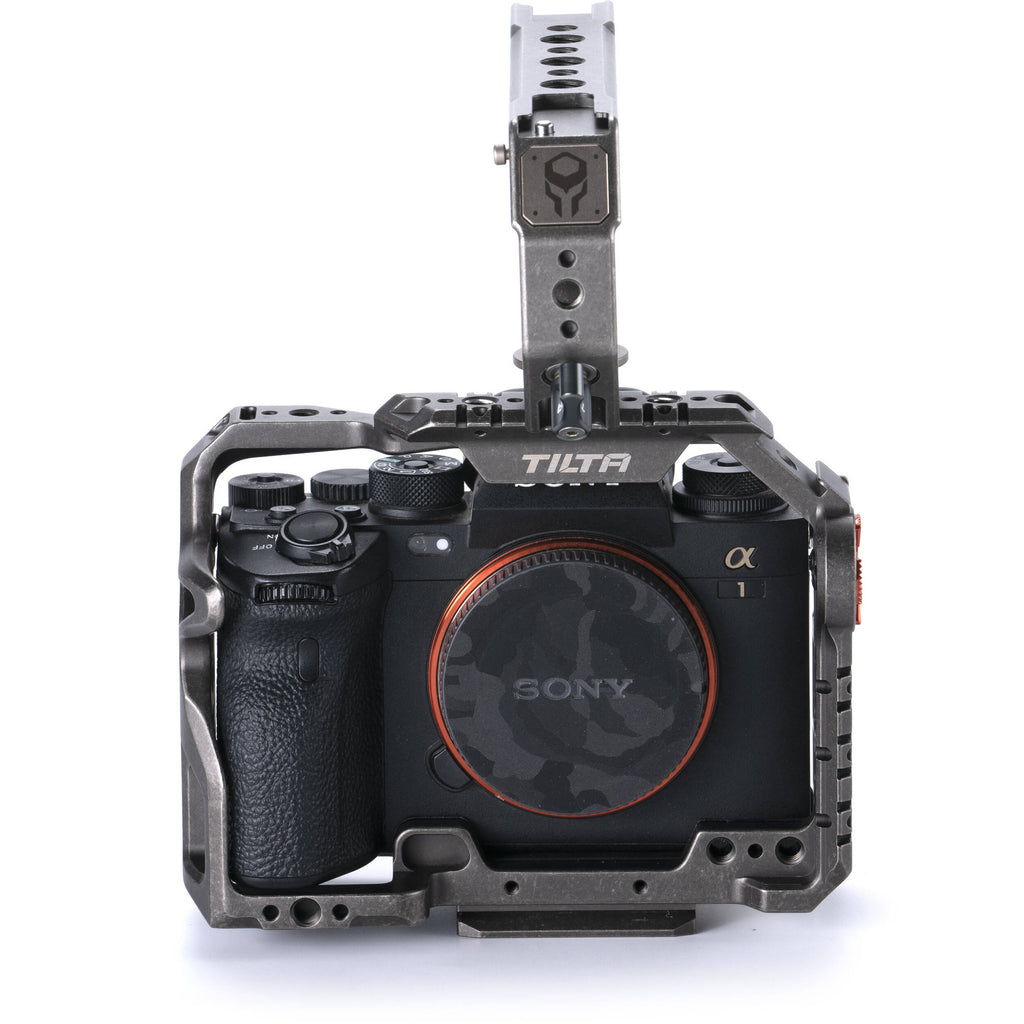

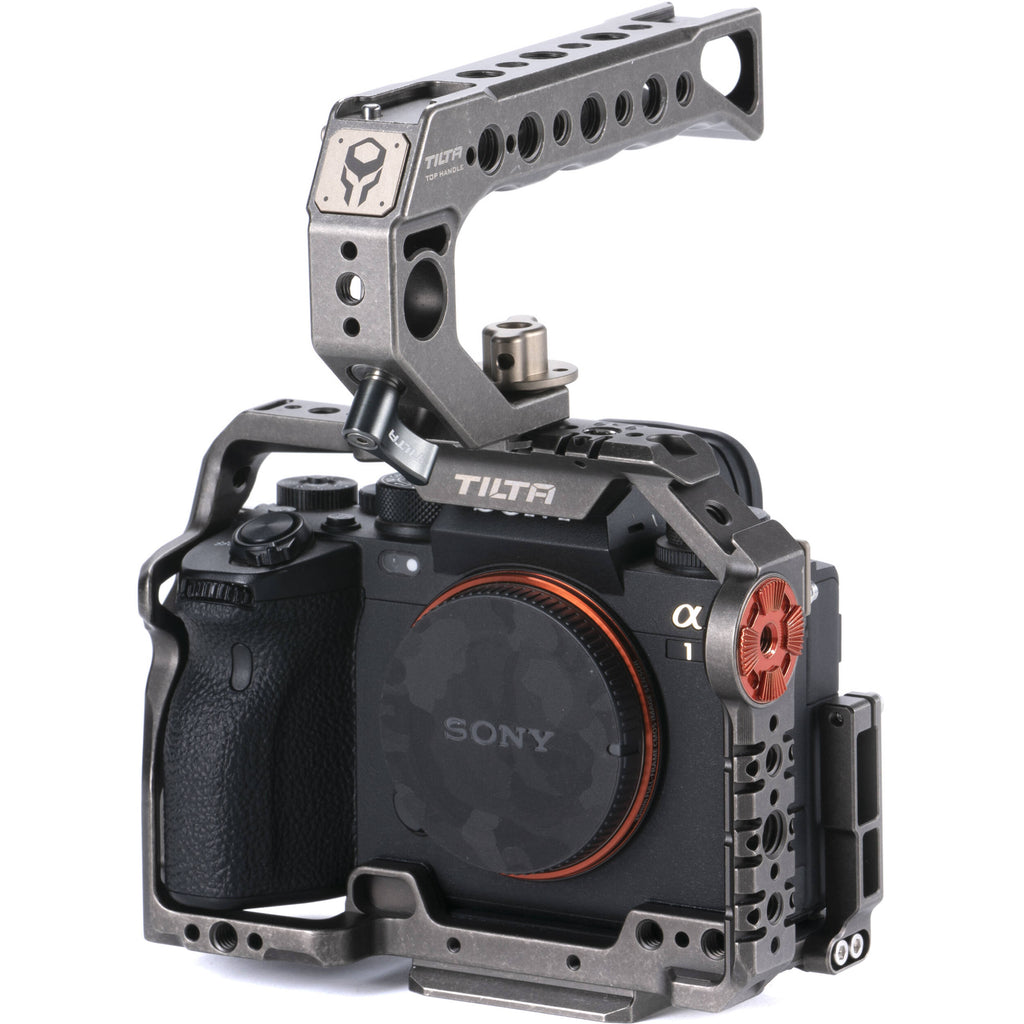

Add a basic rig to your Sony a1 mirrorless camera with this lightweight tactical gray Tiltaing Basic Kit from Tilta. The kit includes a full camera cage, a cheese-style quick release top handle, an HDMI cable clamp, and an HDMI extension cable. This aluminum and stainless steel cage maintains access to the camera's controls and features shoe mounts, NATO rails, an ARRI-style rosette, 1/4"-20 accessory mounting threads, and a Manfrotto-type quick release plate, and it weighs only 6.5 oz. Read more about these kit items below.
Tilta Full Camera Cage for Sony a1 (Tactical Gray)
Protect and add accessories to your Sony a1 mirrorless camera with this lightweight tactical gray Full Camera Cage from Tilta. The durable aluminum and stainless steel cage maintains access to the camera's controls and weighs only 6.5 oz.
Use this cage to mount a variety of accessories using the integrated mounts, including the top shoe mount, top NATO rail, right-side NATO rail, right-side ARRI-style rosette, and multiple left-side 1/4"-20 mounting threads. The cage also features multiple 1/4"-20 threads on the bottom to mount it on the included Manfrotto-type quick release plate, a tripod, or other rig.
Compatibility
Sony a1 mirrorless camera
![]()
UPC: 810076272818
Tilta Quick Release Top Handle for BMPCC 4K Cage (Tactical Gray)
Carry and stabilize your Blackmagic Design Pocket Cinema Camera 4K with this lightweight tactical gray Quick Release Top Handle from Tilta. The quick release handle's features include two shoe mounts, a 15mm rod port, multiple 1/4"-20 and 3/8"-16 threads, and a 3/8"-16 thread with locating pins.
The aluminum and stainless steel handle attaches to your camera cage using the included spring-loaded thumbscrew. The 15mm rod port features a rod locking screw to add a rod to the handle. There is one 3/8"-16 thread with locating pins on the front of the handle to mount a separately available Tilta cage rod mount.
![]()
UPC: 709016727436
Tilta HDMI Cable Clamp Attachment for Sony a1 Full Cage (Tilta Gray)
Prevent the HDMI cable from accidentally disconnecting when plugged into your Sony a1 camera with this Tilta gray HDMI Cable Clamp Attachment from Tilta. This cable clamp is designed to mount onto the Tilta Full Cage for the Sony a1 using two screws, and the cable is tightened using the captive thumbscrew. It is constructed with durable aluminum and stainless steel, and it comes with an Allen wrench to tighten the screw securely.
Compatibility
Sony a1 camera
Tilta Full Cage for Sony a1 camera
![]()
UPC: 810076272870
Tilta HDMI Extension Cable for Tiltaing Camera Cages
This HDMI Extension Cable from Tilta is primarily designed to connect to your camera inside your Tiltaing cage, providing you with an ergonomic method of wiring your camera to an external HDMI monitor. Simply plug the male HDMI end into the camera, and connect your display's HDMI cable to the female port of this extension cable. It is also compatible with Tilta's HDMI cable clamps for security.
![]()
UPC: 614234707927
In the Box
- Tilta Full Camera Cage for Sony a1 (Tactical Gray)
- Manfrotto-Type Quick Release Plate
- Screwdriver
- Allen Wrench
- Limited 2-Year Warranty
- Tilta Quick Release Top Handle for BMPCC 4K Cage (Tactical Gray)
- Cage Screw with Spring
- Rod-Locking Screw
- Limited 2-Year Warranty
- Tilta HDMI Cable Clamp Attachment for Sony a1 Full Cage (Tilta Gray)
- Captive Screw
- 2 x Mounting Screw
- Allen Wrench
- Limited 2-Year Warranty
- Tilta HDMI Extension Cable for Tiltaing Camera Cages
Table of Contents
- Description
- Tilta Full Camera Cage for Sony a1 (Tactical Gray)
- Tilta Quick Release Top Handle for BMPCC 4K Cage (Tactical Gray)
- Tilta HDMI Cable Clamp Attachment for Sony a1 Full Cage (Tilta Gray)
- Tilta HDMI Extension Cable for Tiltaing Camera Cages
Tilta Full Camera Cage for Sony a1 (Tactical Gray) Specs
Mounting
| Battery Plate Type |
None |
| Accessory Mounting |
Multiple x Anti-Twist 1/4"-20 Thread, Multiple x Anti-Twist 3/8"-16 Thread |
| Tripod Mounting |
Cage: 1/4"-20 Thread, Manfrotto 501 |
| Shoe Mounting |
1 x Cold Shoe |
| Rosettes |
Cage, Side: 1 x ARRI Rosette w/ M6 Thread |
| Rail Mounting |
Cage, Top: 1 x NATO Rail
Cage, Side: 1 x NATO Rail |
General
| Materials |
Aluminum |
| Dimensions |
5.8 x 4.4 x 2.6" / 148 x 113 x 66 mm |
| Weight |
6.5 oz / 184 g |
Physical
| Support Type |
Cage |
| Grip Type |
None |
| Camera Compatibility |
Sony a1 |
Packaging Info
| Package Weight |
0.715 lb |
| Box Dimensions (LxWxH) |
6 x 5.8 x 2.8" |
Tilta Quick Release Top Handle for BMPCC 4K Cage (Tactical Gray) Specs
| Grip Type |
Topside Handle with Cheeseplate-Style Handle |
| Rotation |
No |
Mounting
| Attachment Method |
Attaches via 1 x Built-In Screw (Unspecified Type) |
| Compatibility |
Attaches onto Camcorder Support for:
Blackmagic Pocket Cinema Camera 4K |
| Rod Standard |
15 mm Single Rod |
| Rod Ports |
1 x 15 mm Rod Port |
| Accessory Mounting |
Multiple x 1/4"-20 Thread
Multiple x 3/8"-16 Thread |
| Shoe Mounting |
2 x Built-In Cold Shoe Slot |
| Rosettes |
None |
| Rail Mounting |
None |
General
| Materials |
Aluminum, Steel |
| Dimensions |
5.6 x 2.8 x 0.8" / 14.3 x 7.1 x 1.9 cm |
| Weight |
6.1 oz / 172.8 g |
Packaging Info
| Package Weight |
0.4 lb |
| Box Dimensions (LxWxH) |
7.1 x 3.4 x 1.2" |
Tilta HDMI Cable Clamp Attachment for Sony a1 Full Cage (Tilta Gray) Specs
General
| Compatibility |
Tilta Full Cage for Sony a1 |
Physical
| Mounting |
2 x M4 Screws |
| Material of Construction |
Aluminum, Stainless Steel |
Tilta HDMI Extension Cable for Tiltaing Camera Cages Specs
General
| Connector 1 |
1 x HDMI Male |
| Connector 2 |
1 x HDMI Female |
Packaging Info
| Package Weight |
0.05 lb |
| Box Dimensions (LxWxH) |
6 x 4 x 0.01" |
