Tilta TA-USC-45-MK Overview
-
1Description
-
2Tilta Universal Suction Cup with Mounting Bracket (4.5")
-
3Tilta Tiltaing Mini Articulating Arm
-
4Tilta Ball Head with 3-Prong Mount

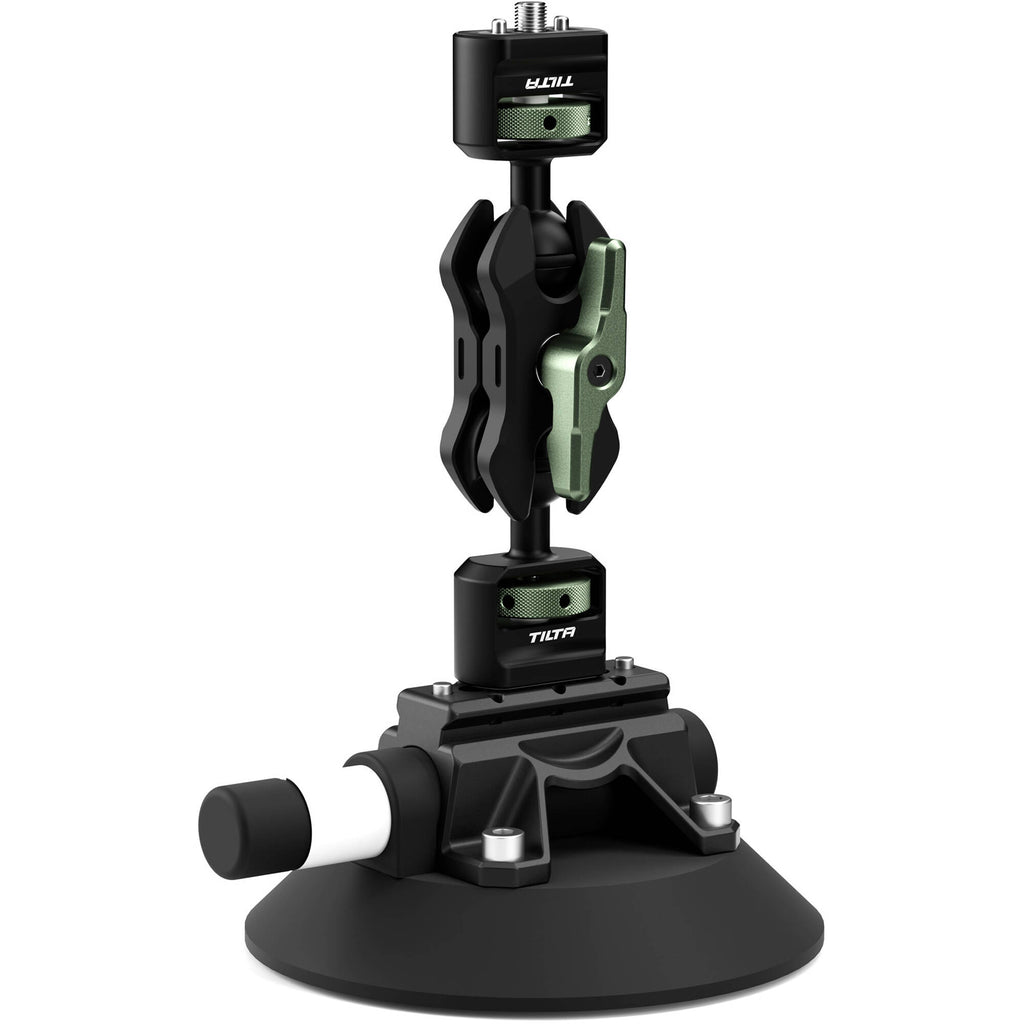

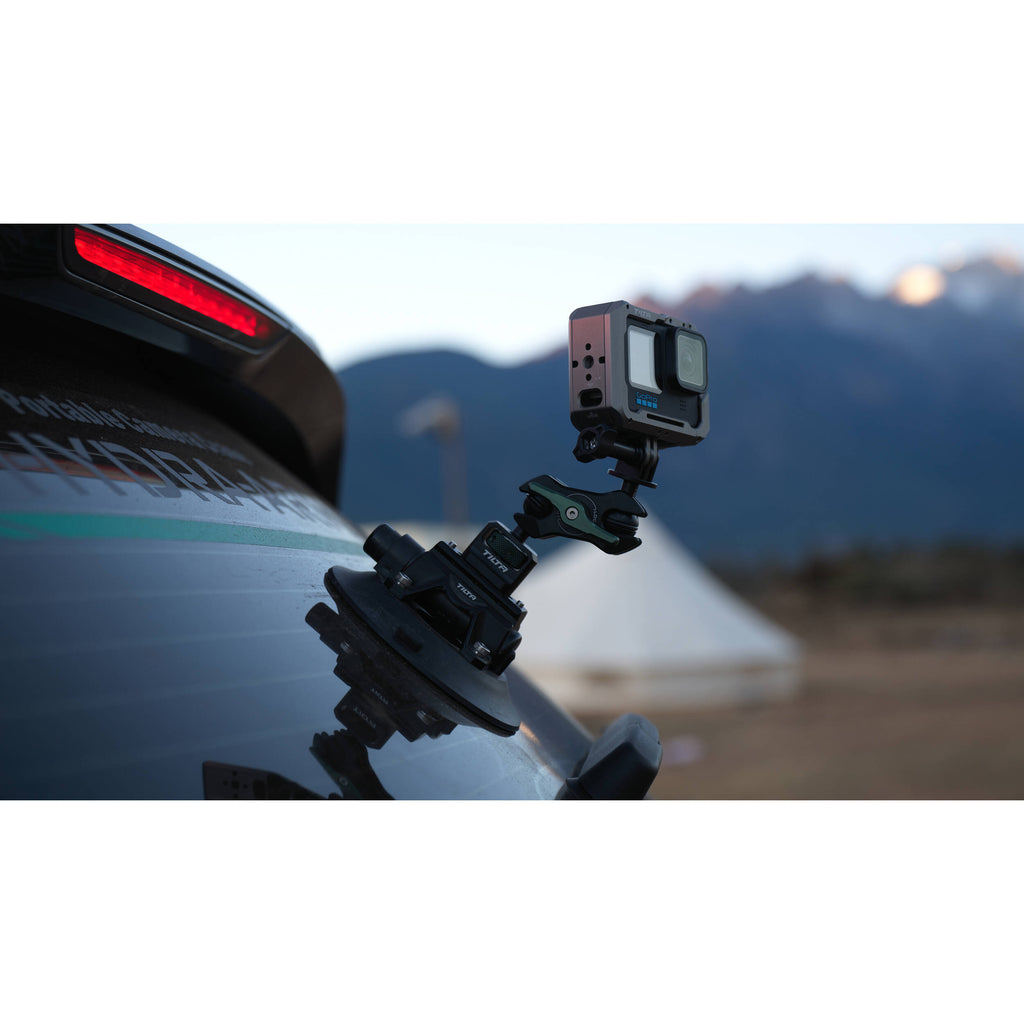

Mount an accessory or compact action camera onto a vehicle or flat surface with this Universal Action Camera Suction Cup Mounting Kit from Tilta. The kit includes a 4.5" suction cup, a 3" long articulating arm with ball heads on each end, and an additional 3-prong ball head mount.
The ball head features 1/4"-20 anti-twist screws on either end, and one end mounts onto the suction cup mounting bracket. If you are using a GoPro-style action mount, you can swap in the 3-prong ball head for the 1/4"-20 default and mount your camera directly.

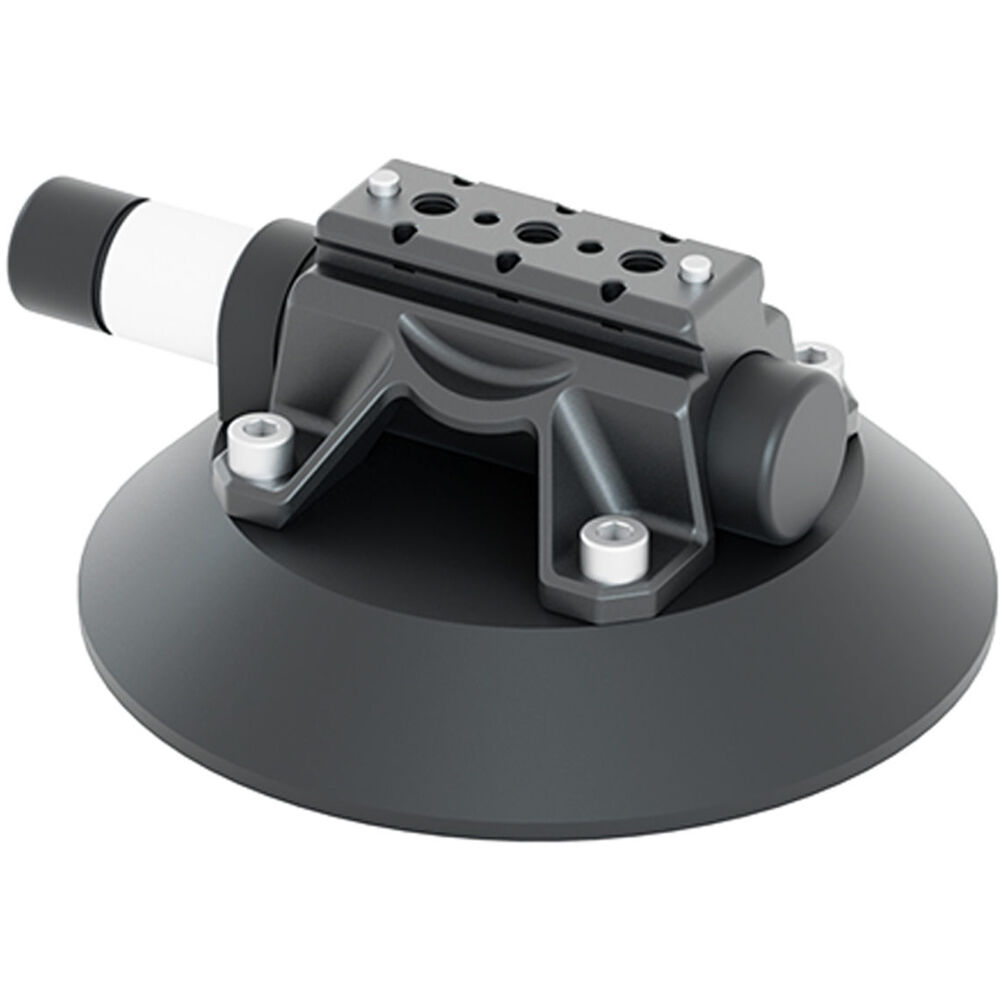

Tilta Universal Suction Cup with Mounting Bracket (4.5")
The 4.5" diameter Universal Suction Cup with Mounting Bracket from Tilta features a vacuum pump on the side that allows you to securely attach it to smooth, non-porous surfaces. It's made of rubber and silicone and provides multiple 1/4"-20 threads on top for mounting various devices and accessories, including action cameras such as GoPro HERO, DJI Action, or Insta360.

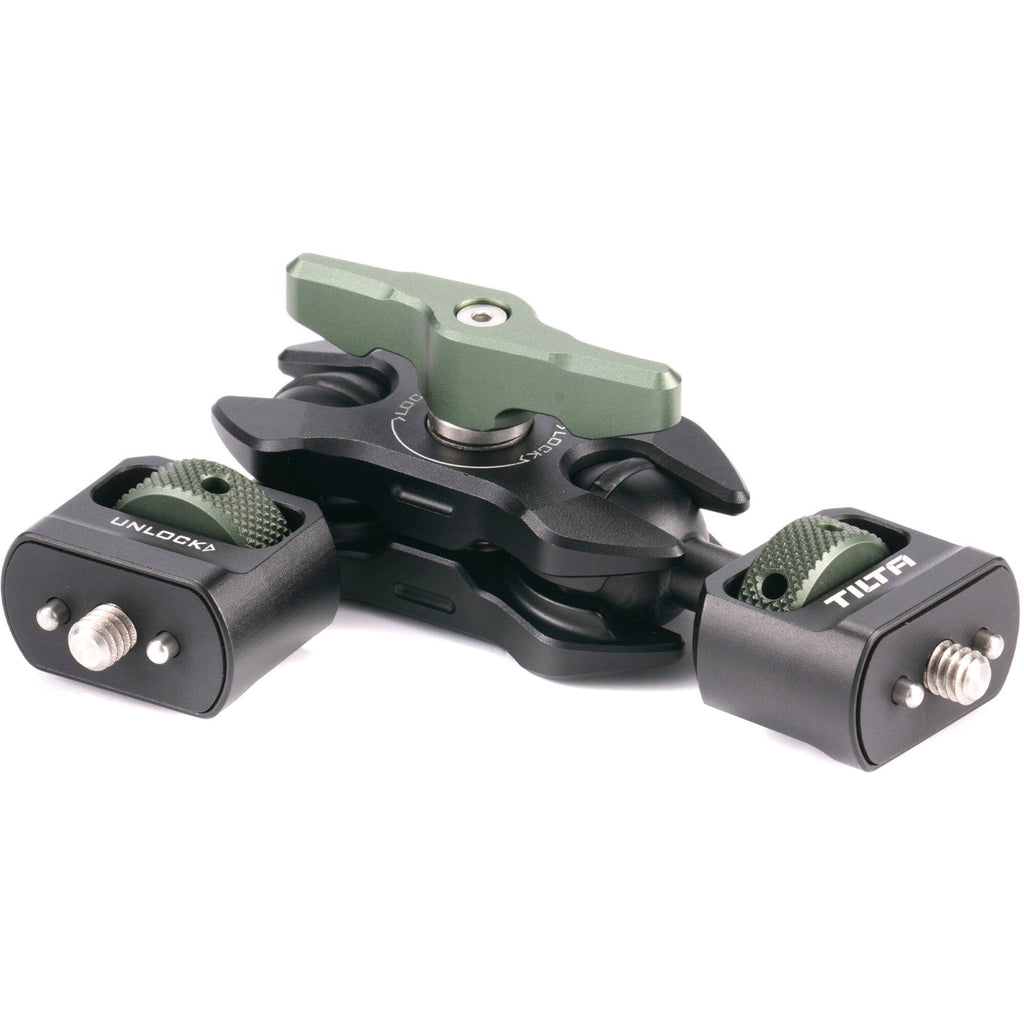

Tilta Tiltaing Mini Articulating Arm
Mount a monitor, light, mic, or other accessory onto your cage or rig with this Tiltaing Mini Articulating Arm from Tilta. The durable aluminum arm measures 3" in length, and it features ball heads with a 1/4"-20 screw and anti-twist divots on each end. This modular arm allows you to swap out the ball head ends with optional mounts such as an ARRI-style locating mount, a shoe adapter, a NATO clamp, and more.

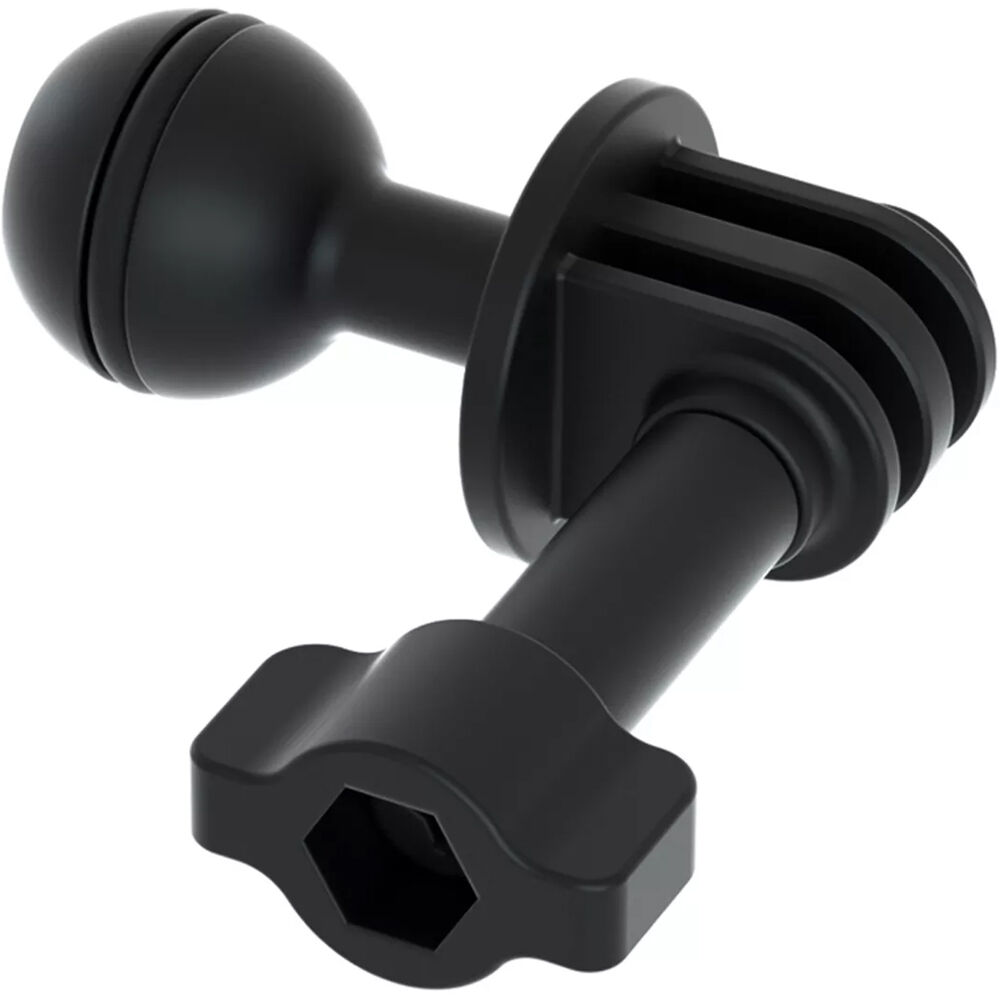

Tilta Ball Head with 3-Prong Mount
Designed to customize the mounts on your Tilta Mini Articulating Arm, this Ball Head with 3-Prong Mount can add a 3-prong action camera mount to your preexisting magic arm. The ball head attaches to the articulating arm's clamp. The 3-prong mount on the opposite end can mount on compatible devices and is tightened via the integrated knob. Aluminum alloy and stainless steel make up the ball head's design for a lightweight and durable construction.

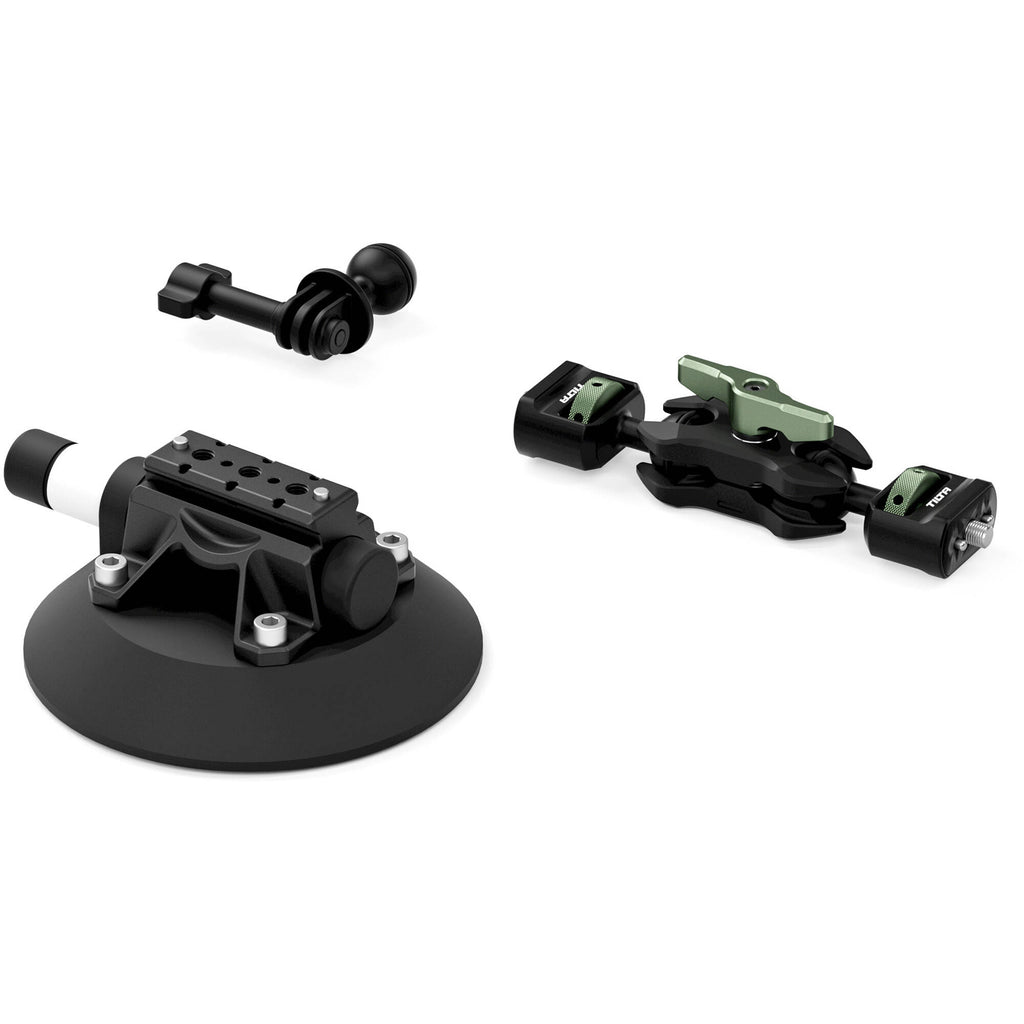

In the Box
- Tilta Universal Suction Cup with Mounting Bracket (4.5")
- Limited 2-Year Manufacturer Warranty
- Tilta Tiltaing Mini Articulating Arm
- Limited 2-Year Manufacturer Warranty
- Tilta Ball Head with 3-Prong Mount
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- Tilta Universal Suction Cup with Mounting Bracket (4.5")
- Tilta Tiltaing Mini Articulating Arm
- Tilta Ball Head with 3-Prong Mount
Tilta Universal Suction Cup with Mounting Bracket (4.5") Specs
Mounting
| Mounting |
Camera/Accessory Mount: Multiple x Built-In 1/4"-20 Female Thread, 1 x Suction Cup |
General
| Materials |
Aluminum, Plastic, Rubber, Steel |
| Dimensions |
7.5 to 6 x 3.5" / 19.1 to 15.2 x 8.9 cm |
| Weight |
1 lb / 454 g |
Physical
| Pan |
None |
| Tilt |
None |
| Roll |
None |
Packaging Info
| Package Weight |
0.865 lb |
| Box Dimensions (LxWxH) |
6.3 x 6 x 2.9" |
Tilta Tiltaing Mini Articulating Arm Specs
| Load Capacity |
9.9 lb / 4.5 kg |
| Top Mount |
1/4"-20 Male |
| Bottom Mount |
1/4"-20 Male |
| Points of Articulation |
2 |
| Material of Construction |
Aluminum |
| Segment Length |
2.95" / 74.93 mm |
| Width |
2.49" / 63.29 mm |
| Weight |
5.3 oz / 151 g |
Packaging Info
| Package Weight |
0.37 lb |
| Box Dimensions (LxWxH) |
3.7 x 3.7 x 1.3" |
Tilta Ball Head with 3-Prong Mount Specs
General
| Compatibility |
Tilta Mini Articulating Arm |
Physical
| Mounting |
1 x 3-Prong Mount |
| Color |
Black |
| Material of Construction |
Aluminum Alloy, Stainless Steel |
| Dimensions |
3 x 2 x 2" / 7.6 x 5.1 x 5.1 cm |
| Weight |
2.7 oz / 77 g |
Packaging Info
| Package Weight |
0.095 lb |
| Box Dimensions (LxWxH) |
3.2 x 2.85 x 1.4" |
