Tilta TA-BSP3-V-B Overview

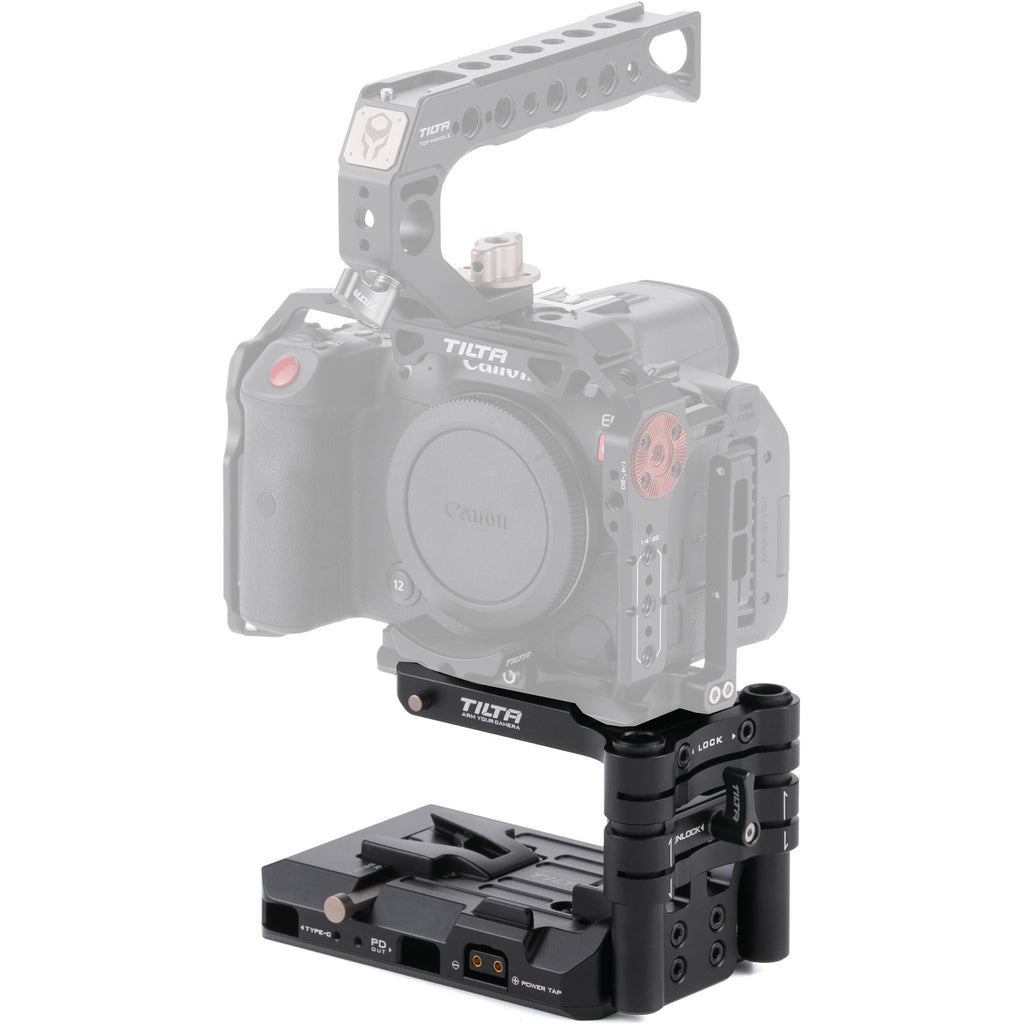

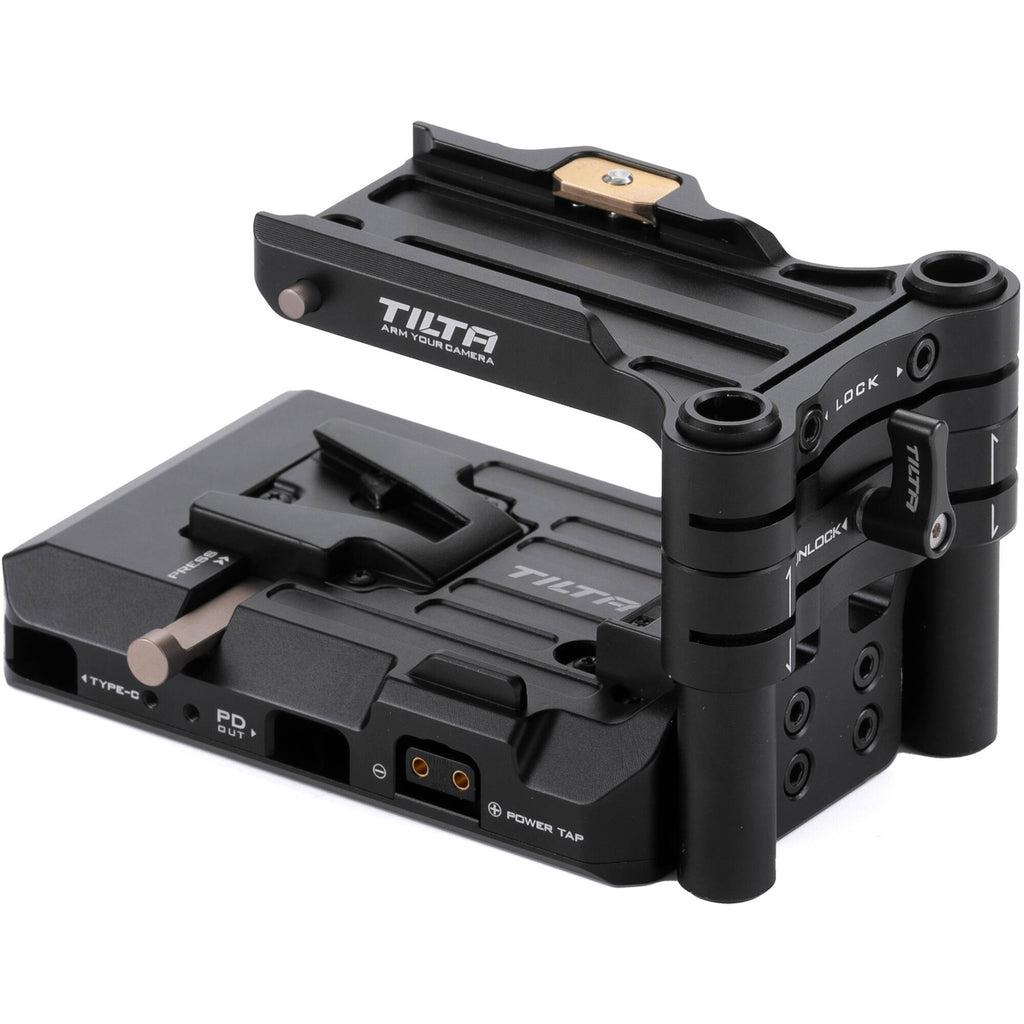

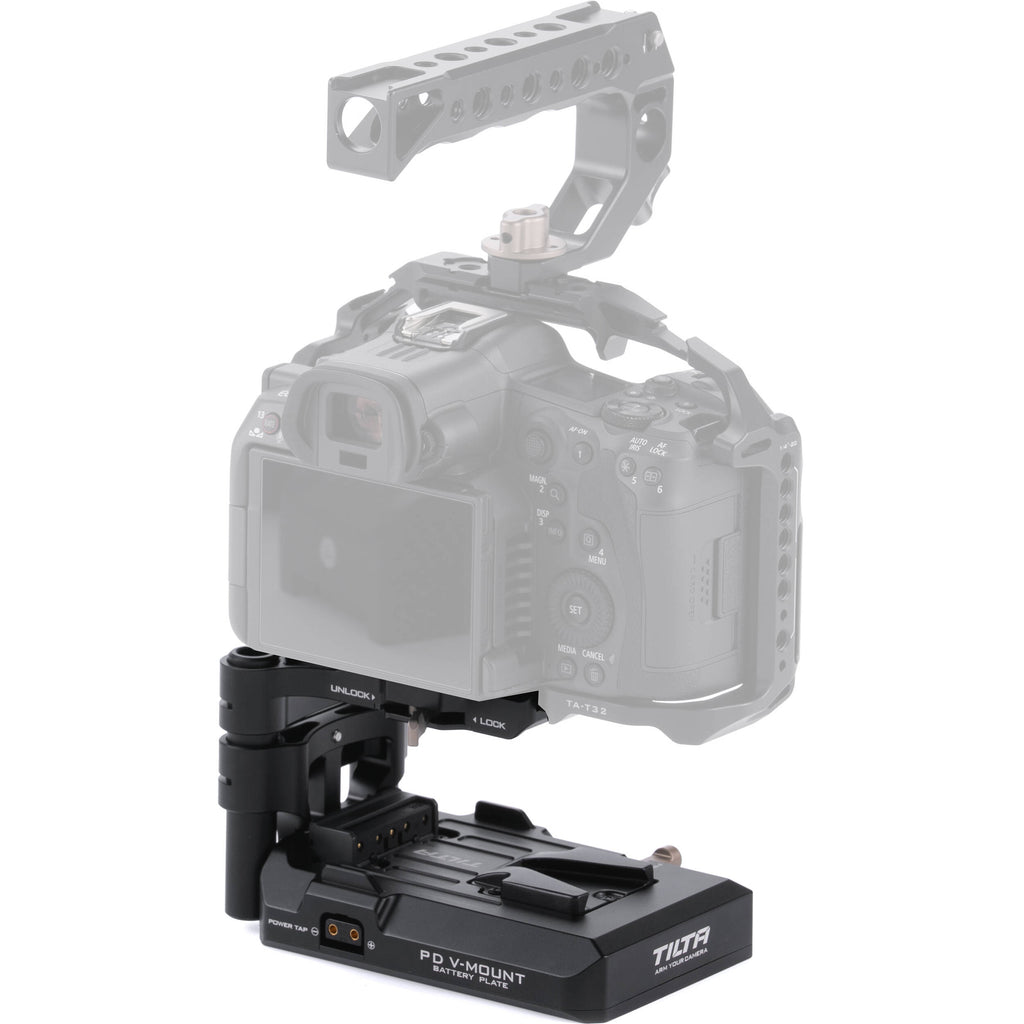

Incorporate a V-mount battery plate into your Canon R5 C camera cage configuration using this Smart V-Mount Arca-Type Baseplate from Tilta. Mount almost any V-mount battery to the device thanks to its height-adjustable 15mm rod design. A 5V USB Type-C port and 14.8V D-Tap port can power additional accessories like fill lights or sound recording devices.
An additional USB Type-C with PD support adjusts your battery's voltage to best suit the camera or accessories it is connected to. The Arca-type baseplate connects the device to the Tilta R5 C camera cage or any other cage or camera body with Arca compatibility. Included with the plate is a USB Type-C cable clamp to secure the port's connectivity while preventing disconnection. Its steel and aluminum alloy construction ensures a durable design.
In the Box
- Tilta Smart V-Mount Arca-Type Baseplate for Canon R5 C Camera Cage (Black)
- 2 x 15mm Aluminum Rod (3.1")
- Arca Quick Release Plate
- USB Type-C Cable Clamp
- USB Type-C Power Cable (23.6")
- Allen Key (2.5mm)
Tilta TA-BSP3-V-B Specs
| Support Type | Baseplate |
| Configuration | Battery Mounting Plate |
| Grip Type | None |
| Camera Compatibility | Canon EOS R5 C |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Included Rods | 2 x 3.1" / 8 cm 15 mm Aluminum Rod |
| Battery Plate Type | 1 x V-Mount (Built-In) |
| Accessory Mounting | None |
| Camera Mounting | Arca-Type Plate |
| Tripod Mounting | Built-In Arca-Type Plate |
| Rod Ports | 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | None |
| Materials | Aluminum, Steel |
| Dimensions | 6 x 4 x 4" / 15.2 x 10.2 x 10.2 cm |
| Weight | 1.3 lb / 0.6 kg |
| Power Output | 2 x P-Tap 14.8 V Port 1 x USB Type-C 5 V Port 1 USB Type-C PD 60 W Port |
| Package Weight | 1.265 lb |
| Box Dimensions (LxWxH) | 5.9 x 4.6 x 3.3" |
