Tilta TGA-RCK Overview

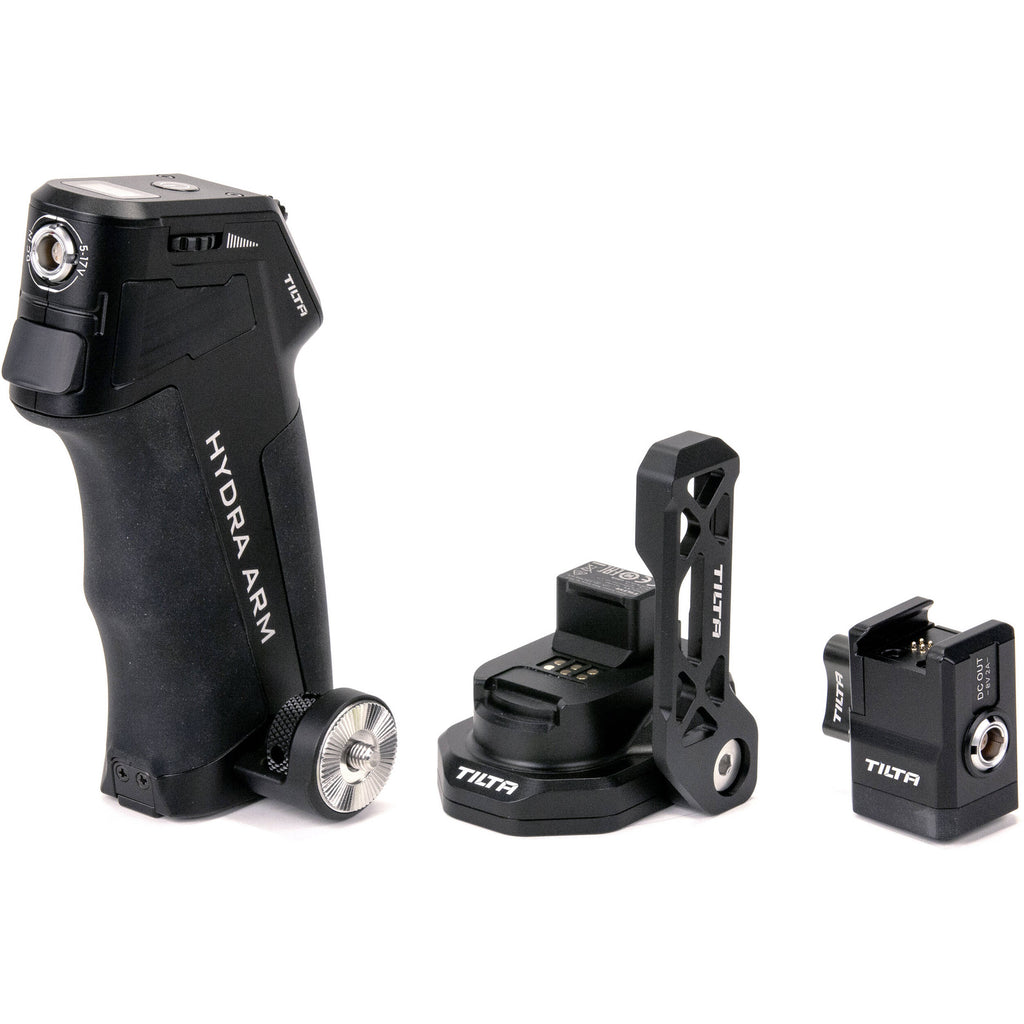

Control your DJI RS 2 or RS 3 PRO gimbal remotely with this Remote Control Kit from Tilta. The kit includes a remote control handle, an RS 2 power supply base with mounting bracket, a remote control receiver module, a 2-pin LEMO-type cable, and a 6-pin LEMO-type cable.
The handle allows you to control the settings as well as the pan and tilt of the gimbal. It is powered using a separately available L-series battery and mounts onto your rig using a rosette. The wireless receiver module allows you to wirelessly control the gimbal with the handle from up to 262' away, or you can connect the handle using the included LEMO-type cable with the receiver for wired control. The base mounts onto the bottom of the gimbal and allows you to plug in an external power source such as a high-capacity V-mount or Gold mount battery.
Quick Pairing Wireless Control
Install the remote control module to the NATO connector on the right side of the gimbal.
Operate From Inside the Car
Operate from inside the car with full control. Maximum control distance is 262.5'.
Wired Control For Optimized Response
Provides more precise control under complex situations such as going through tunnels. Use wired control when equipped with a long-distance setup such as a car mount, jib, Russian Arm, etc.

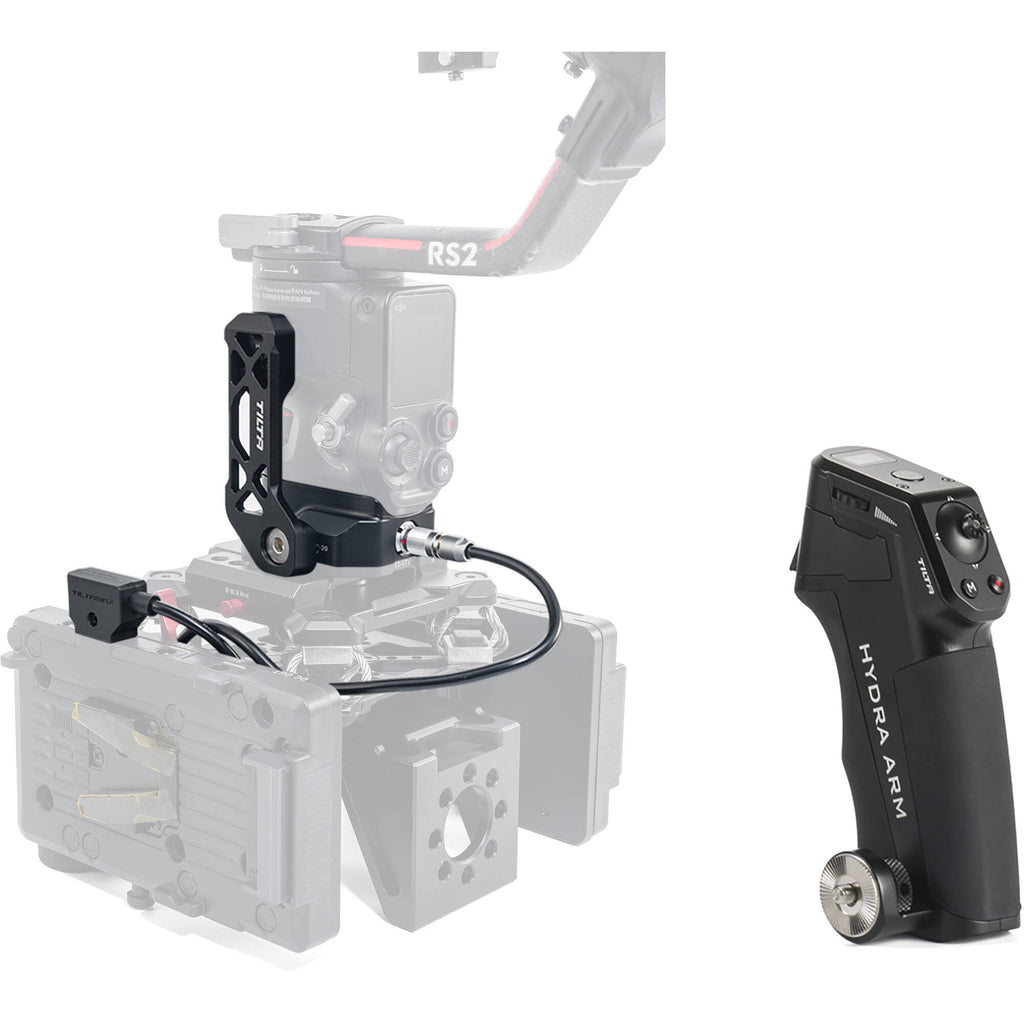

More Protection for Your Camera
The side holding bracket provides additional protection for your camera during high-speed driving and bumpy shooting conditions, while the power supply base plate provides constant powering for the gimbal.
The left NATO rail on the monitor bracket is compatible with the focus handle and Nucleus Nano hand wheel controller.
Supports Numerous Shooting Setups
Compatible with a car mount, dolly, cable cam, Russian Arm, and more.
Compatible with the separately available Hydra Alien Monitor Bracket to support gimbal remote control during car mount shoots.
In the Box
- Tilta Remote Control Kit for Select DJI Gimbals
- Tilta Power Supply Base Plate for Select DJI Gimbals
- Tilta Wireless/Wired Control Receiver Module for RS 2
- Remote Control Handle for RS 2/Ronin S
- 6-Pin to 6-Pin LEMO-Type Cable (16.4')
- D-Tap to 2-Pin LEMO-Type Cable (15.7")
Tilta TGA-RCK Specs
General
| Compatibility |
DJI RS 2
DJI RS 3 PRO |
Power
| Power Source |
Battery |
| Battery Type |
1 x Sony L-Series |
Physical
| Mounting |
1 x NATO Clamp
1 x 1/4"-20 Female
1 x 3/8"-16 Female |
| Material of Construction |
Aluminum, Stainless Steel |
| Cable Length |
Not Specified by Manufacturer |
| Dimensions |
10 x 6.5 x 2.5" / 25.4 x 16.5 x 6.4 cm |
| Weight |
24 oz / 680 g |
Packaging Info
| Package Weight |
1.555 lb |
| Box Dimensions (LxWxH) |
10 x 6.8 x 2.6" |
