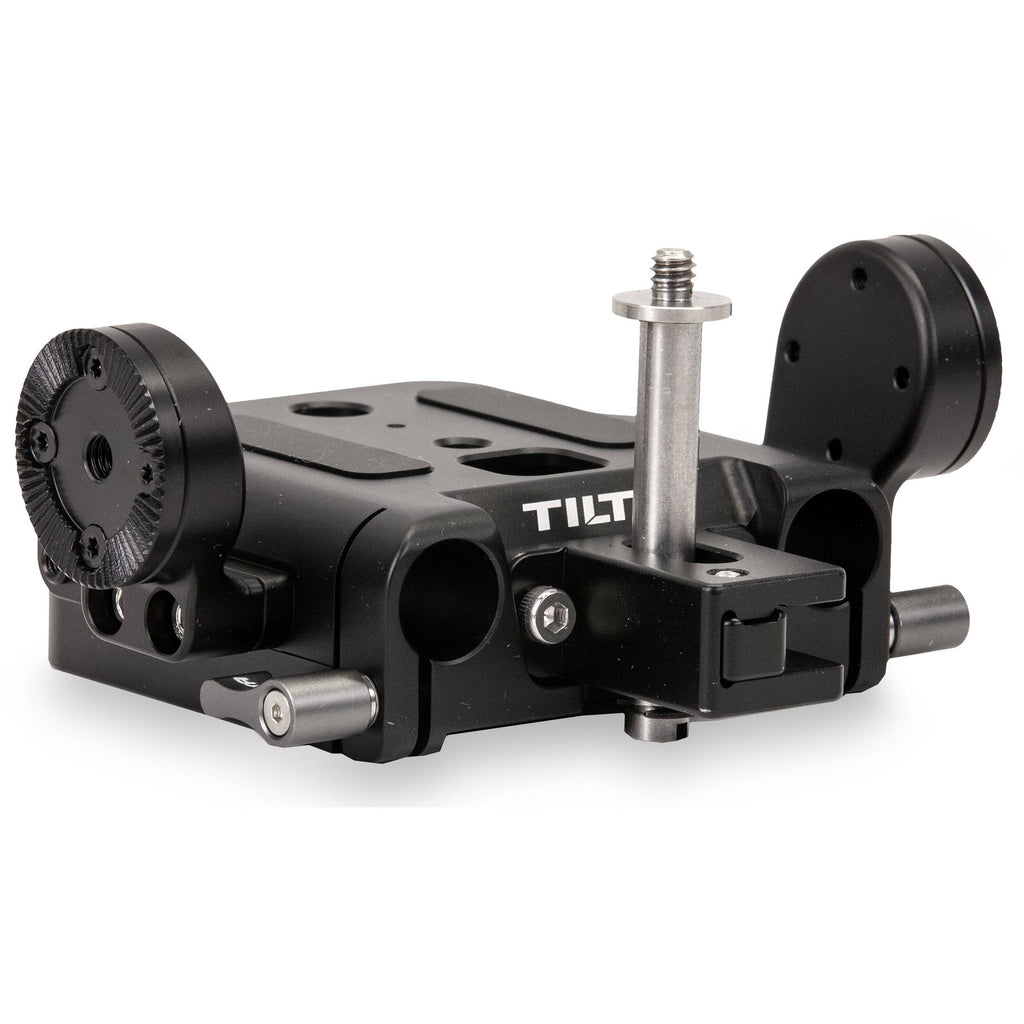

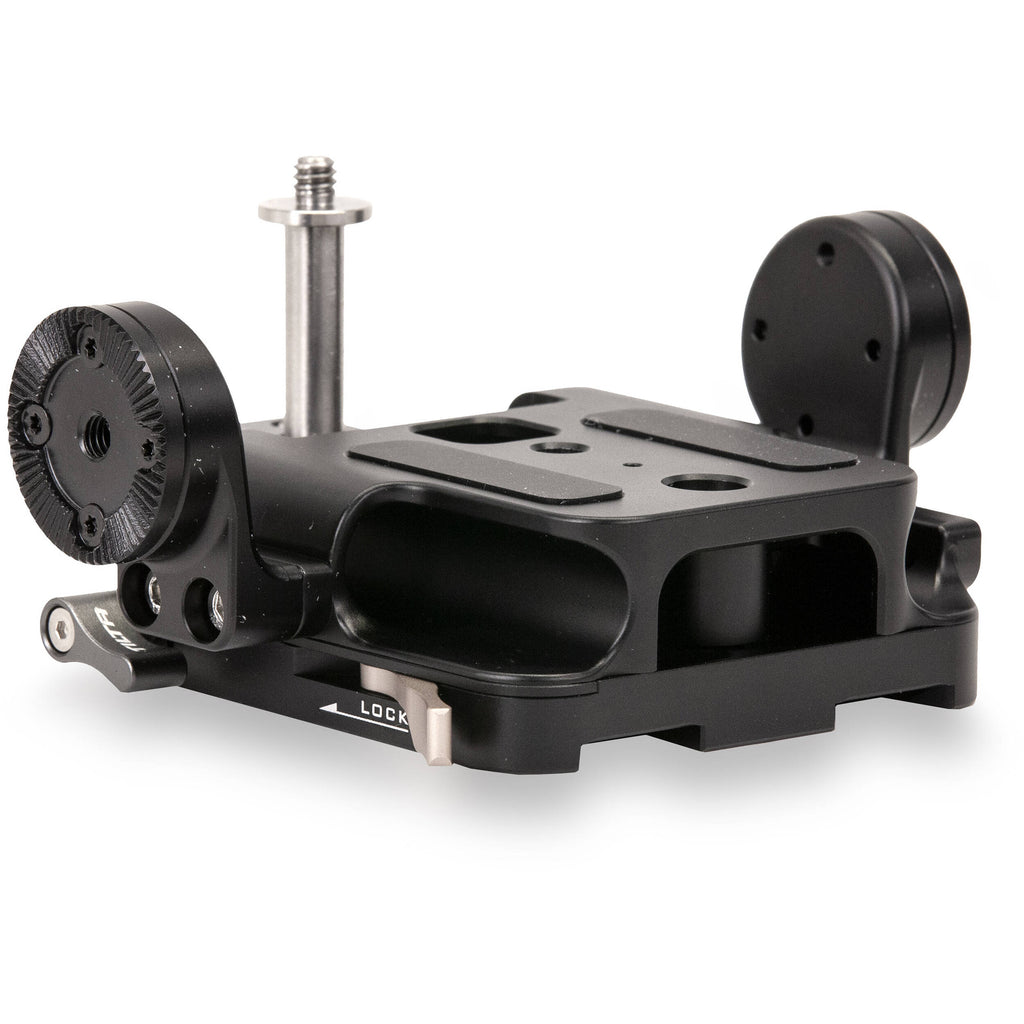

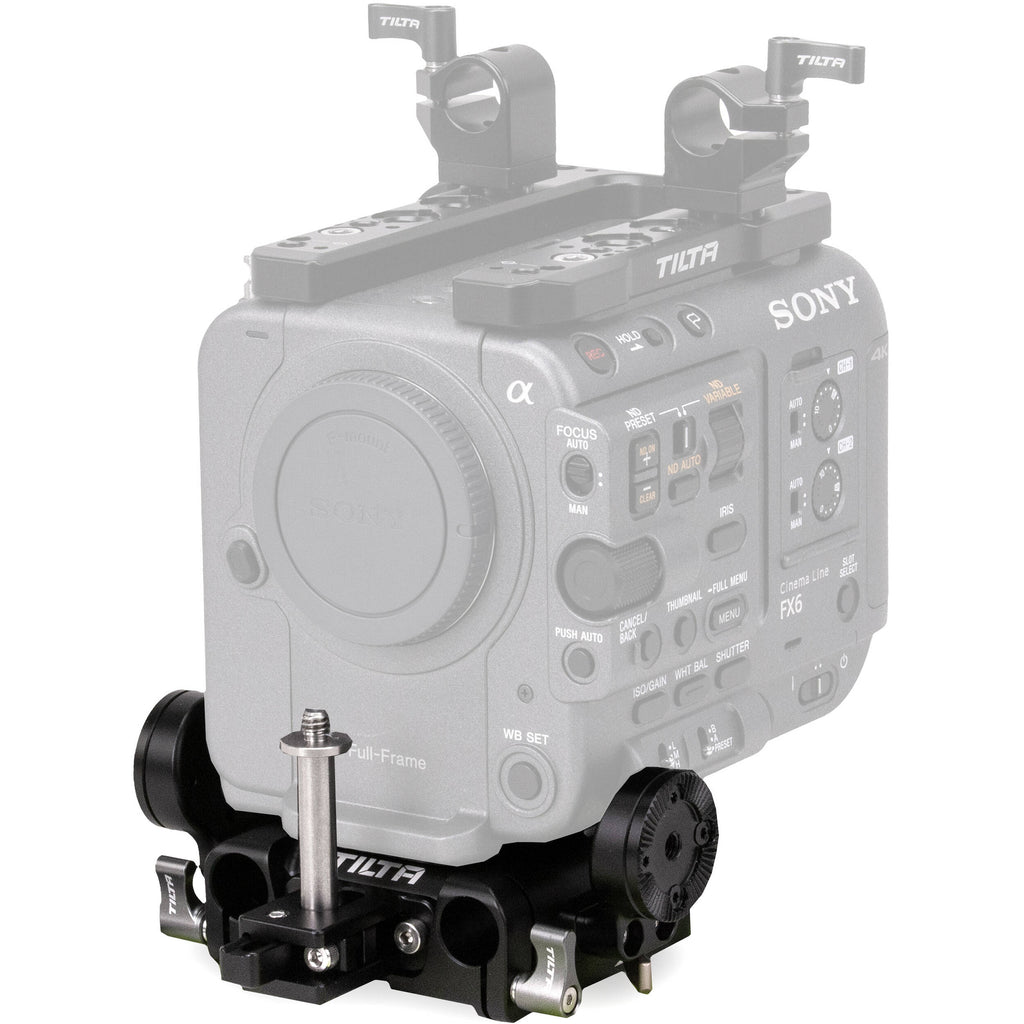

Tilta ES-T20-QRBP Overview
Add dovetail plate functionality to your camera with this Tilta Quick Release Baseplate for Sony FX6 when used with the optional Tilta Standard Dovetail. The lightweight Quick Release Baseplate is made from aluminum and stainless steel, with integrated rubberized grip pads to prevent your camera from twisting when mounted. It conforms to the LWS standard and includes a pair of black 15mm aluminum rods for mounting lens accessories to your camera. The baseplate also features an integrated lens adapter support bracket, to help protect your camera's lens mount from undue stress when using heavy or long lenses. Rubberized pads on the top of the plate help prevent your camera from twisting when mounted.
Dual ARRI-compatible rosettes on each side of the baseplate allow you to attach ARRI-style accessories such as handgrips or arm extensions. The rosette design allows you to orient and secure the accessories throughout a 360° range to suit your comfort and the needs of the shot. You can also adapt this plate to work with your ARRI-standard dovetail with an optional Tilta-standard to ARRI-standard multifunctional baseplate.
![]()
UPC: 810076270975
In the Box
- Tilta Quick Release Baseplate for Sony FX6
- 2 x 15mm Rod (5.9")
- Allen Wrench
- Limited 2-Year Warranty
Tilta ES-T20-QRBP Specs
Mounting
| Rod Standard |
15 mm LWS / 60 mm Spacing |
| Included Rods |
2 x 5.9" / 15 cm 15 mm Aluminum Rod |
| Battery Plate Type |
None |
| Accessory Mounting |
None |
| Camera Mounting |
1/4"-20 Screw, 3/8"-16 Screw |
| Rod Ports |
Baseplate, Front: 2 x 15 mm Rod Port |
| Shoe Mounting |
None |
| Rosettes |
Baseplate, Base: 2 x ARRI Rosette w/ M6 Thread |
General
| Support Type |
Baseplate |
| Grip Type |
Grip Required (Not Included) |
| Camera Compatibility |
Sony FX6 |
| Materials |
Aluminum, Steel |
| Dimensions |
6.9 x 4.7 x 4.1" / 17.5 x 12 x 10.5 cm |
| Weight |
15.4 oz / 436 g |
Packaging Info
| Package Weight |
1.1 lb |
| Box Dimensions (LxWxH) |
7.5 x 5.8 x 3.5" |
