Description
Tilta ES-T09-A Overview
- 1Description
- 2Tilta Full Camera Cage for DJI Ronin 4D Flex
- 3Tilta Top Handle for DJI Ronin 4D
- 4Tilta Universal Arca Quick Release Baseplate (Black)

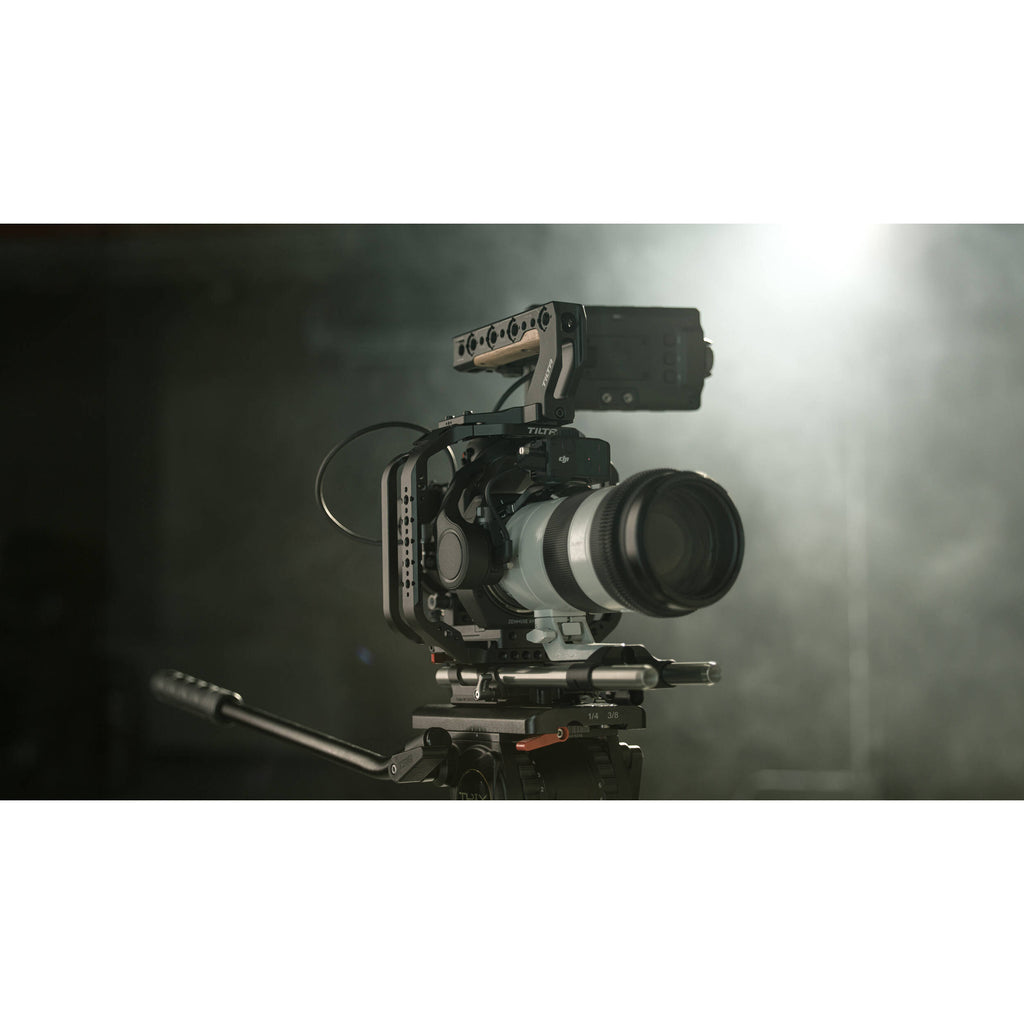

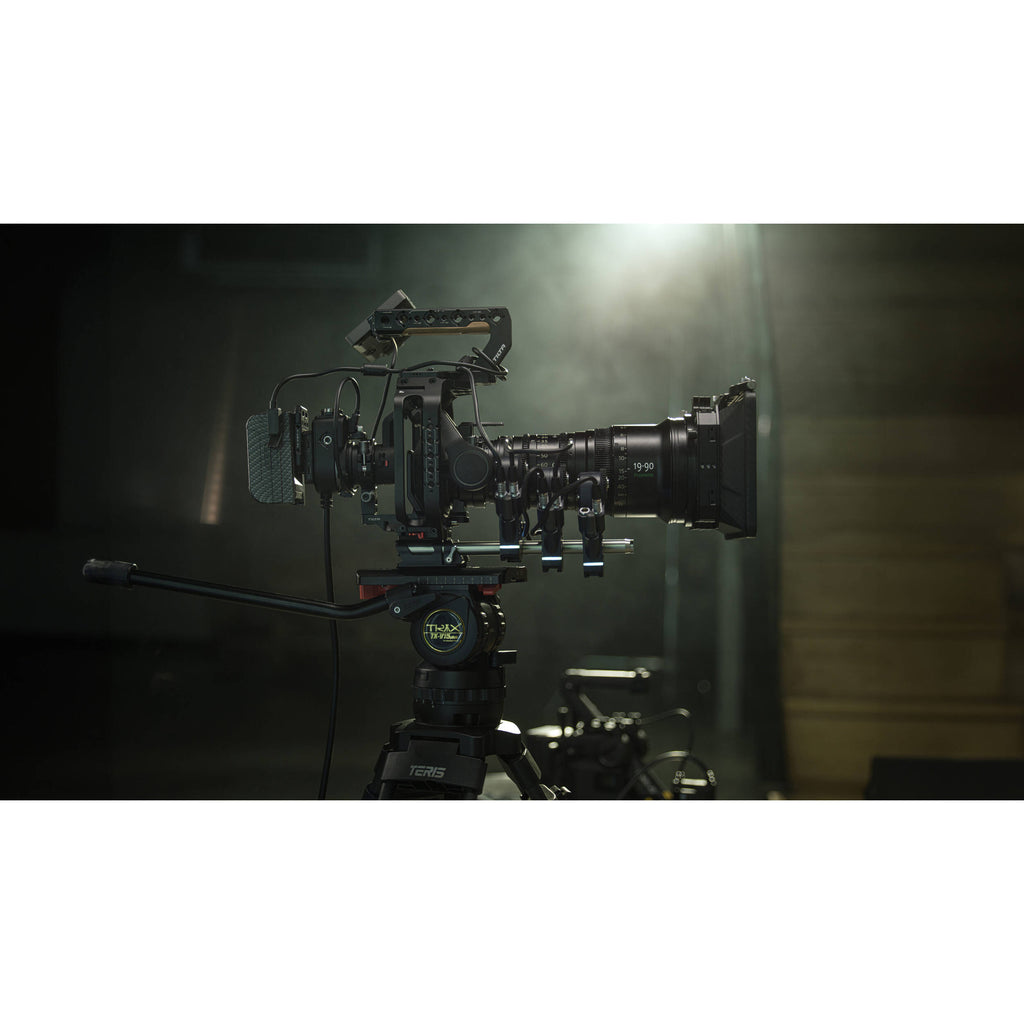

Outfit your DJI Ronin 4D with the Flex unit attached with this Tilta Full Camera Cage Basic Kit to provide additional protection to your rig while expanding its mounting options. The main components included with the kit are a full camera cage, a 15mm LWS baseplate, and a top handle. Additional mounting and support plates integrate 15mm rods into the rig and any compatible rod-based accessories.

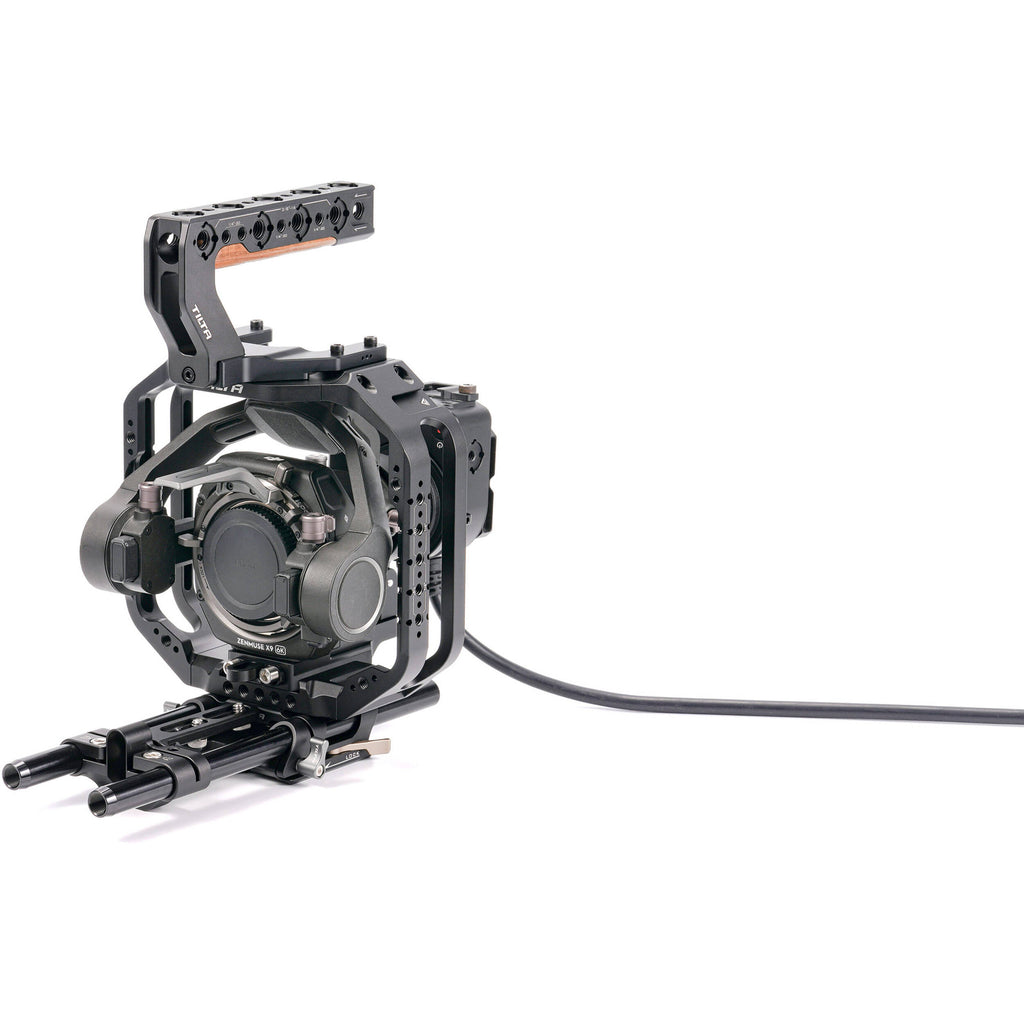

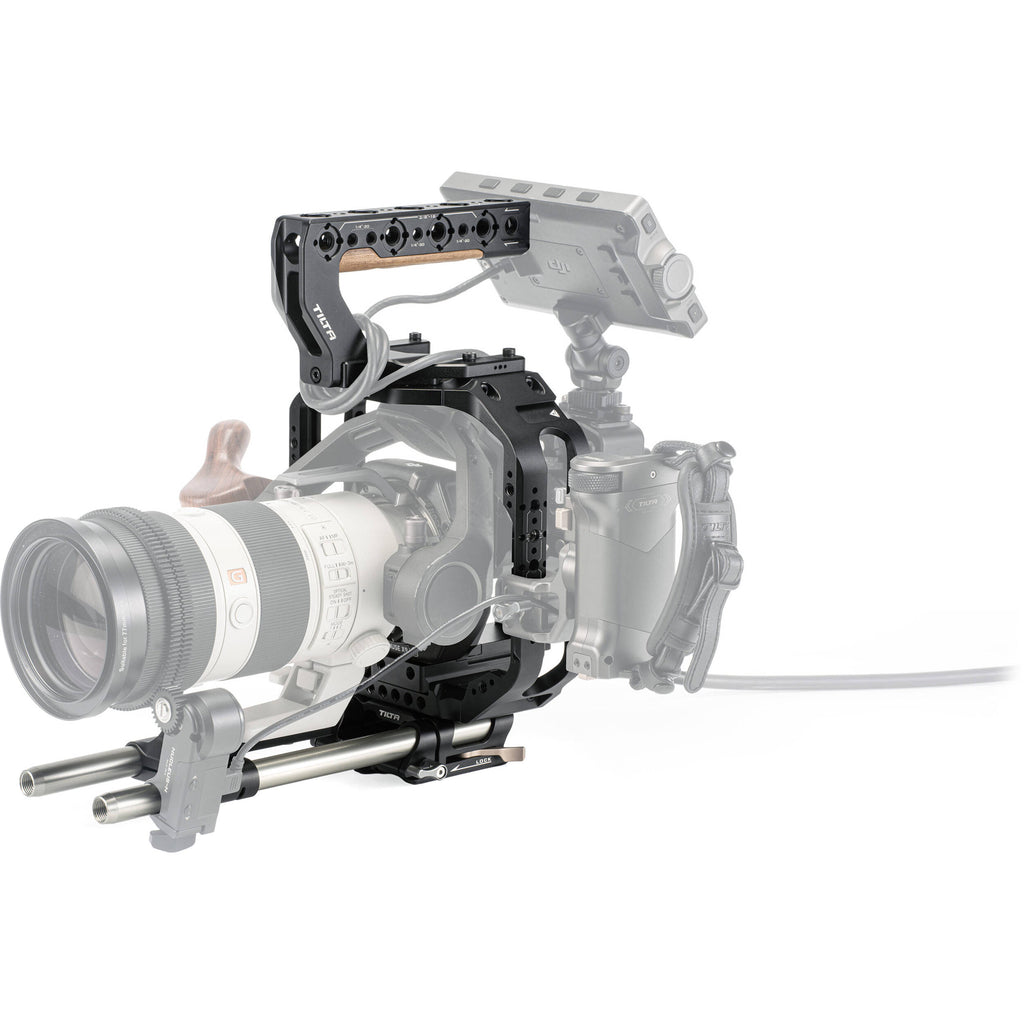

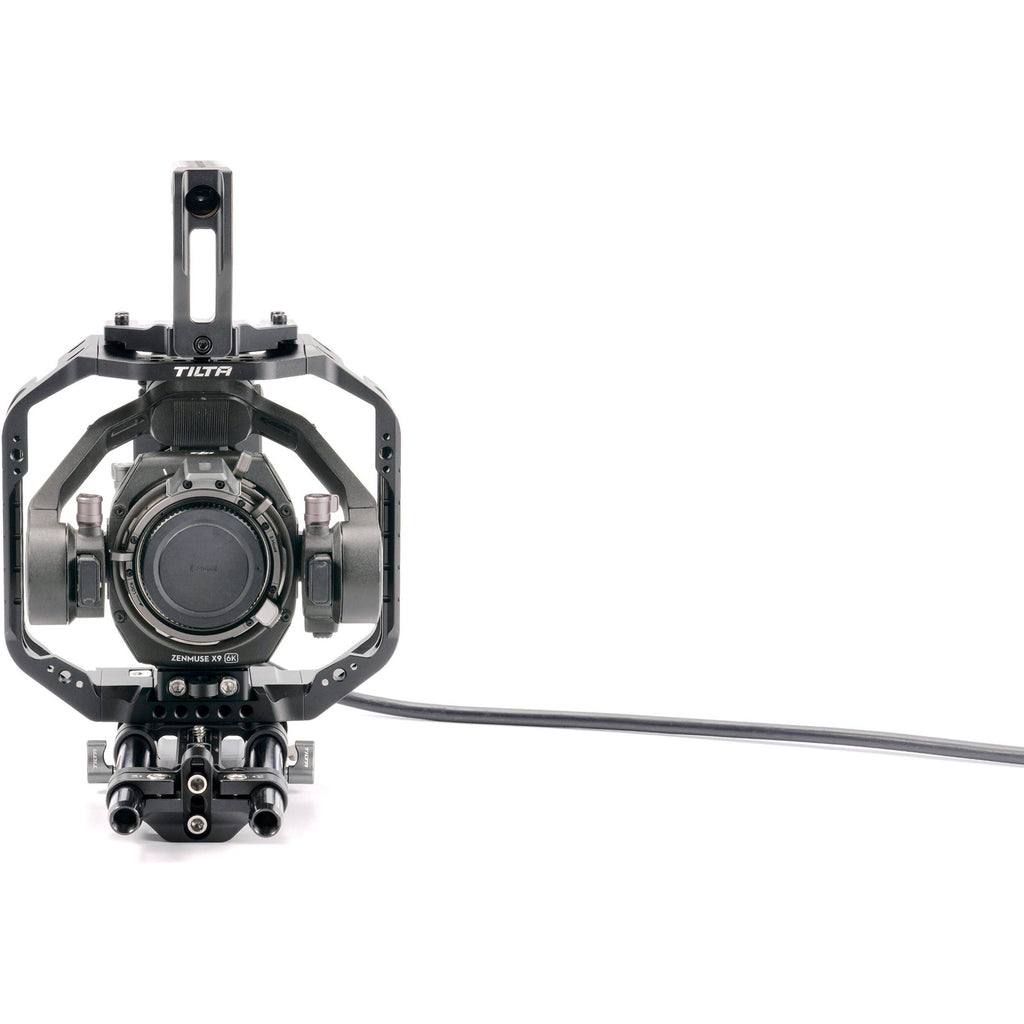

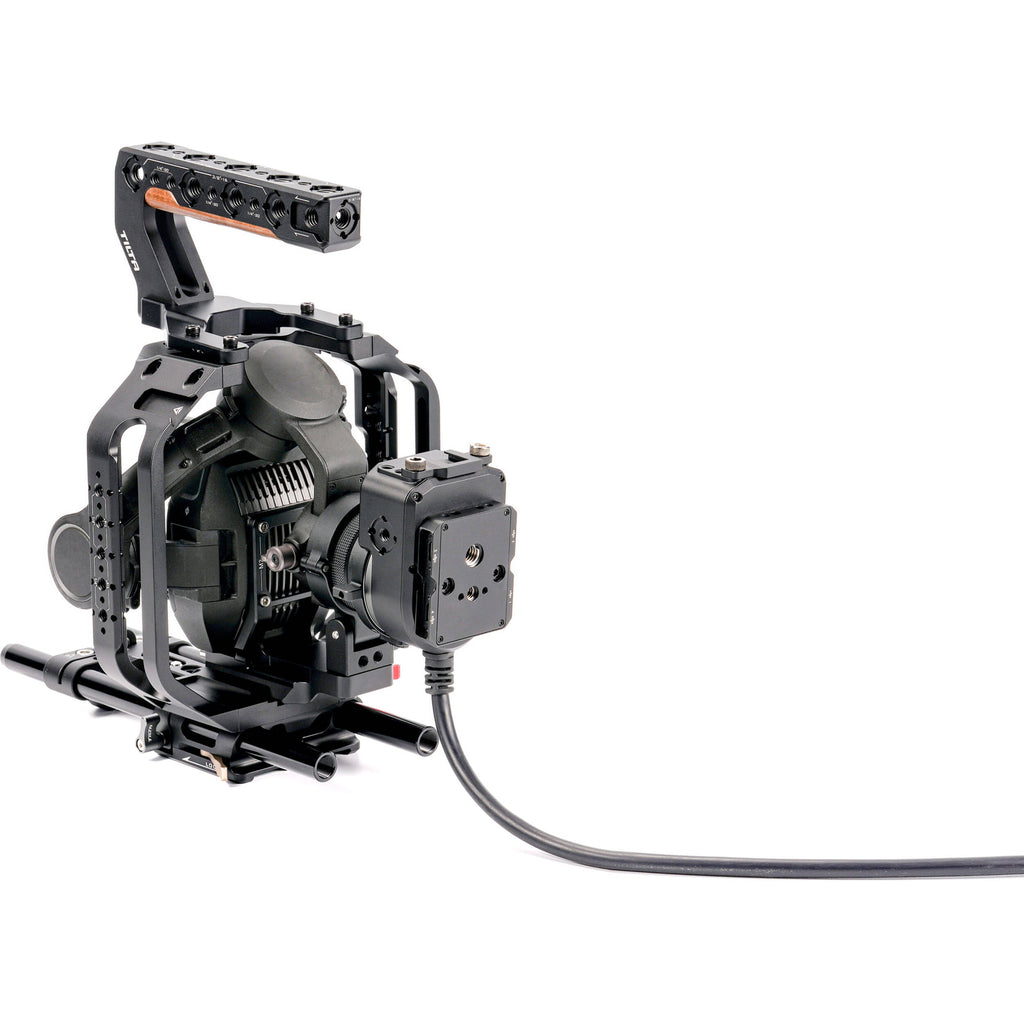

This Tilta Full Camera Cage is designed to accommodate your DJI Ronin 4D cinema camera with the Flex unit attached to provide additional protection and mounting options. The camera cage features multiple 1/4"-20 anti-twist threads, two cold shoe mounts, and a NATO rail to mount articulating arms, external monitors, transmission devices, and handgrips onto the system. Quickly transition between stabilized and handheld setups thanks to the included Manfrotto-style quick release plate.
A support plate mounts on the quick release plate to offer additional security to your Ronin 4D camera body. A dual 15mm LWS rod mounting bracket integrates the included aluminum rods and lens adapter support to attach longer cine lenses to your camera. The cage is compatible with other Tilta accessories. It is constructed with aluminum alloy and silicone for a lightweight and durable design that won't damage your equipment.
Add extra leverage and accessories to your DJI Ronin 4D gimbal with this Top Handle from Tilta. The handle mounts on top of the Ronin 4D using four screws, and it provides multiple 1/4"-20 and 3/8"-16 anti-twist accessory threads. It also features mounting points for an optional cable clamp to protect your rig's cabling.
The handle is constructed with durable aluminum and features a contoured rosewood finger grip for a comfortable hold. It can be mounted between the optional Tilta Hydra Alien stabilizer arm and the 4D, providing a secure hand-holding point between the components. It also supports the Z-axis and can be used with the original 4D monitor bracket.
- DJI Ronin 4D
- Tilta Hydra Alien car-mounted stabilizer system
- DJI Ronin 4D original monitor bracket
This black Universal Arca Quick Release Baseplate from Tilta is a convenient, lightweight solution for mounting a camera or other device to a wide range of support systems. Crafted to seamlessly work with 38mm Arca-type quick release plates, this sturdy aluminum piece mounts via 1/4"-20 and 3/8"-16 threads and has an adjustable locking lever.
In the Box
- Tilta Full Camera Cage for DJI Ronin 4D Flex
- Manfrotto-Style Quick Release
- Support Plate
- Dual 15mm Rod Mounting Bracket
- Lens Adapter Support
- 15mm Aluminum Rod (9.8")
- 2 x Allen Key
- Limited 2-Year Manufacturer Warranty
- Tilta Top Handle for DJI Ronin 4D
- Limited 2-Year Manufacturer Warranty
- Tilta Universal Arca Quick Release Baseplate (Black)
- Limited 2-Year Manufacturer Warranty
- Description
- Tilta Full Camera Cage for DJI Ronin 4D Flex
- Tilta Top Handle for DJI Ronin 4D
- Tilta Universal Arca Quick Release Baseplate (Black)
Tilta Full Camera Cage for DJI Ronin 4D Flex Specs
| Support Type |
Cage, Rod Support System
|
| Configuration |
Lens Support Bracket
|
| Grip Type |
No
|
| Camera Compatibility |
DJI Ronin 4D
|
| Rod Standard |
15 mm LWS / 60 mm Spacing
|
| Included Rods |
2 x 9.8" / 25 cm 15 mm Aluminum Rod
|
| Battery Plate Type |
No
|
| Accessory Mounting |
Multiple x 1/4"-20 Female Thread
|
| Camera Mounting |
Quick Release Plate
|
| Tripod Mounting |
Manfrotto 501
|
| Rod Ports |
2 x 15 mm Rod Port
|
| Shoe Mounting |
2 x Cold Shoe
|
| Rosettes |
No
|
| Rail Mounting |
1 x NATO Rail
|
| Cable Clamp |
No
|
| Materials |
Aluminum, Silicone
|
| Dimensions |
7.2 x 6.9 x 3.3" / 182 x 174.2 x 83.6 mm
|
| Weight |
13.9 oz / 394 g
|
| Package Weight |
2.39 lb
|
| Box Dimensions (LxWxH) |
11.5 x 8.8 x 3.7"
|
Tilta Top Handle for DJI Ronin 4D Specs
| Material of Construction |
Aluminum, Rosewood
|
| Accessory Mounting Threads |
Multiple 1/4"-20
Multiple 3/8"-16 Anti-Twist |
| Dimensions |
6 x 4 x 4" / 15.2 x 10.2 x 10.2 cm
|
| Weight |
13.1 oz / 371 g
|
| Package Weight |
0.825 lb
|
| Box Dimensions (LxWxH) |
5.9 x 4 x 4"
|
Tilta Universal Arca Quick Release Baseplate (Black) Specs
| Compatibility |
Universal
|
| Material of Construction |
Aluminum Alloy and Stainless Steel
|
| Color |
Black
|
| Dimensions |
2.6 x 1.5 x 0.7" / 67 x 38 x 18.6 mm
|
| Weight |
1.6 oz / 45 g
|
| Package Weight |
0.18 lb
|
| Box Dimensions (LxWxH) |
3.9 x 3.5 x 1.3"
|
