Description

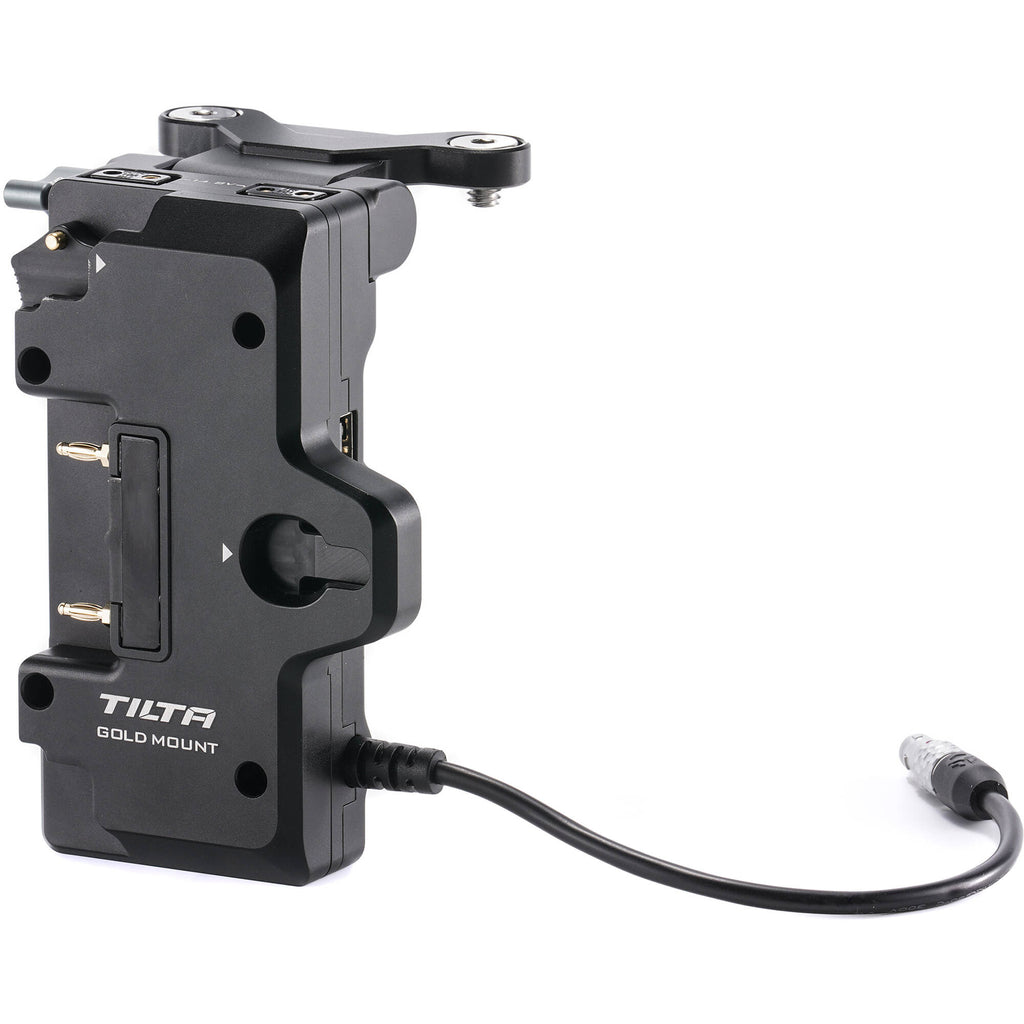

Tilta ES-T21-FBP Overview

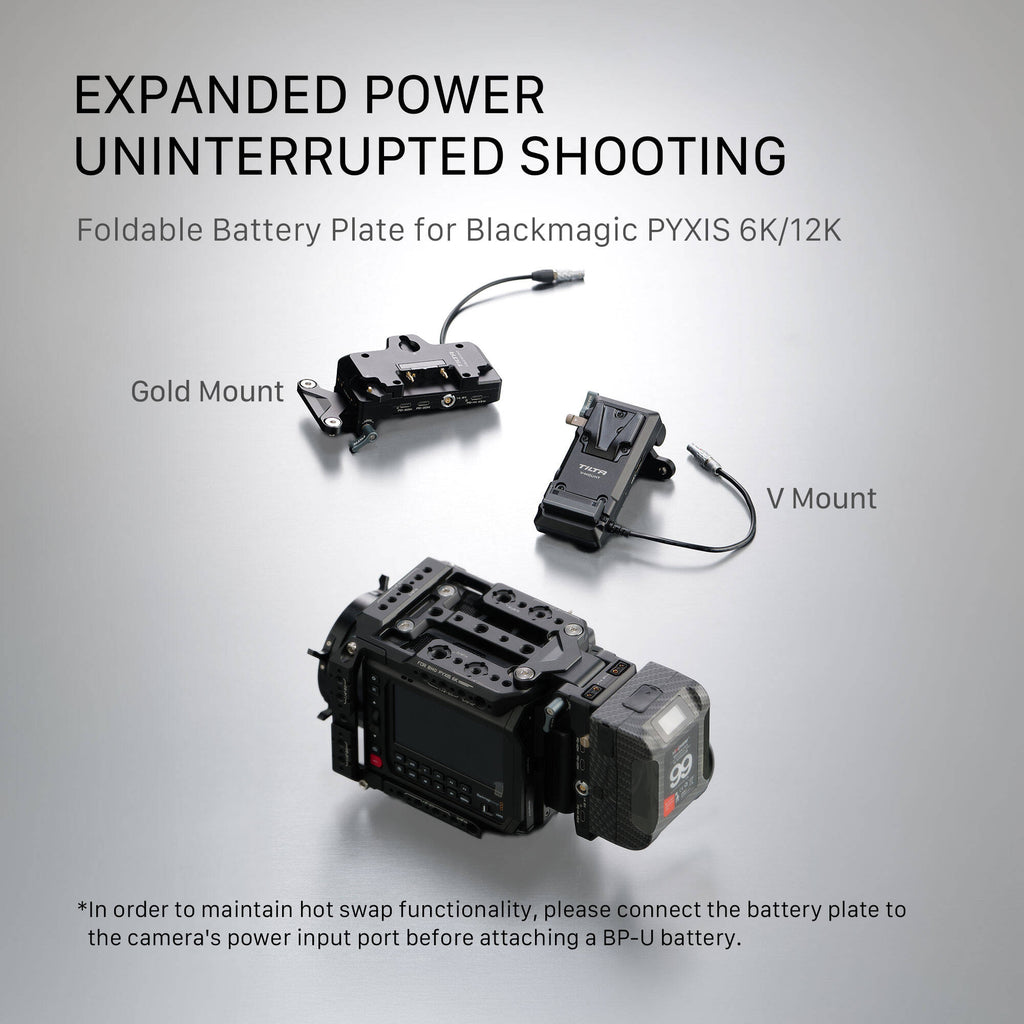

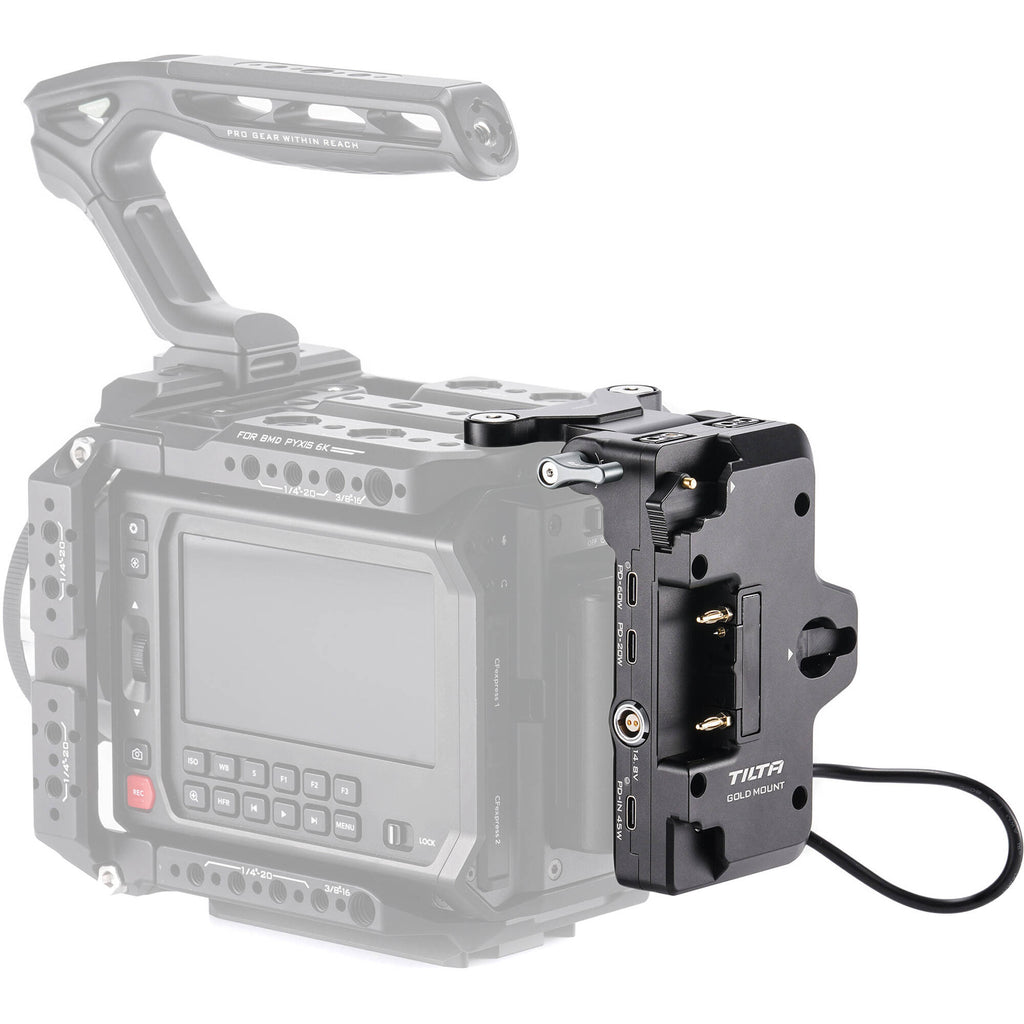

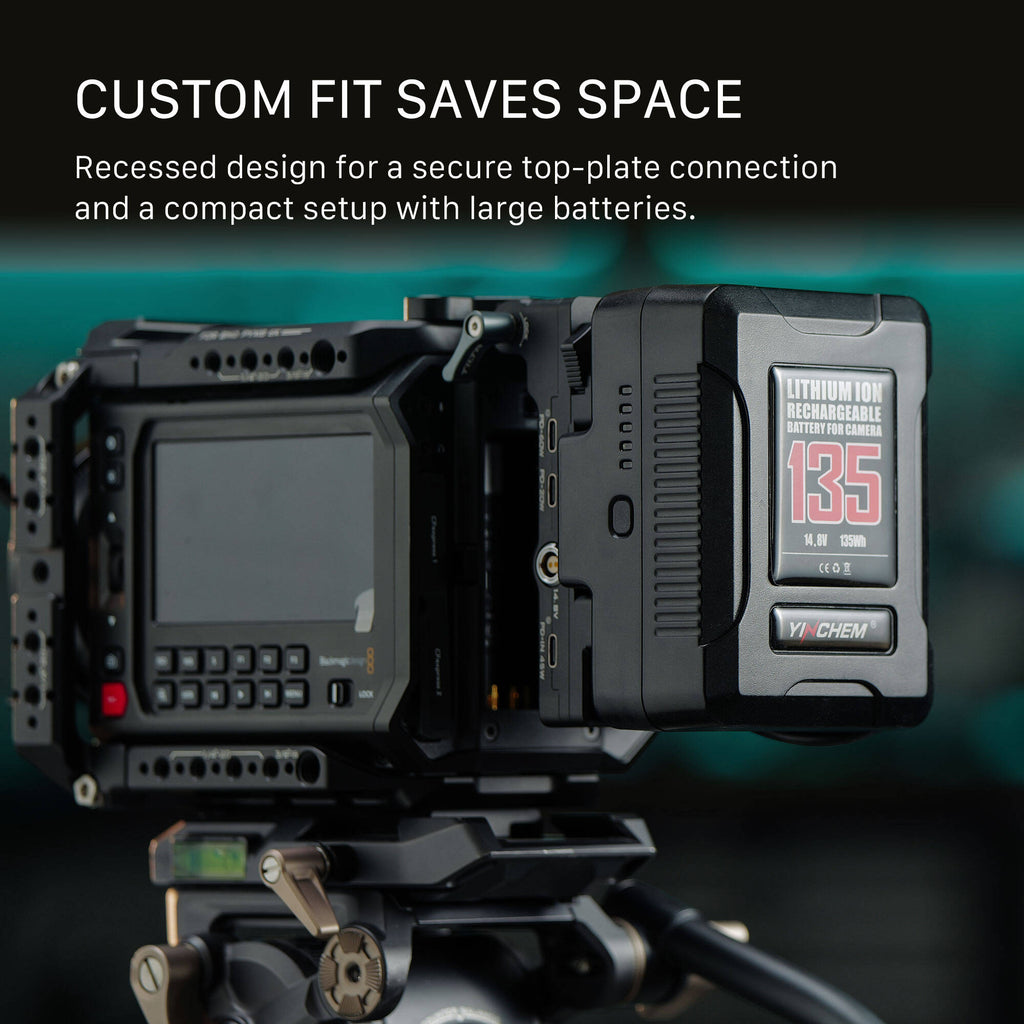

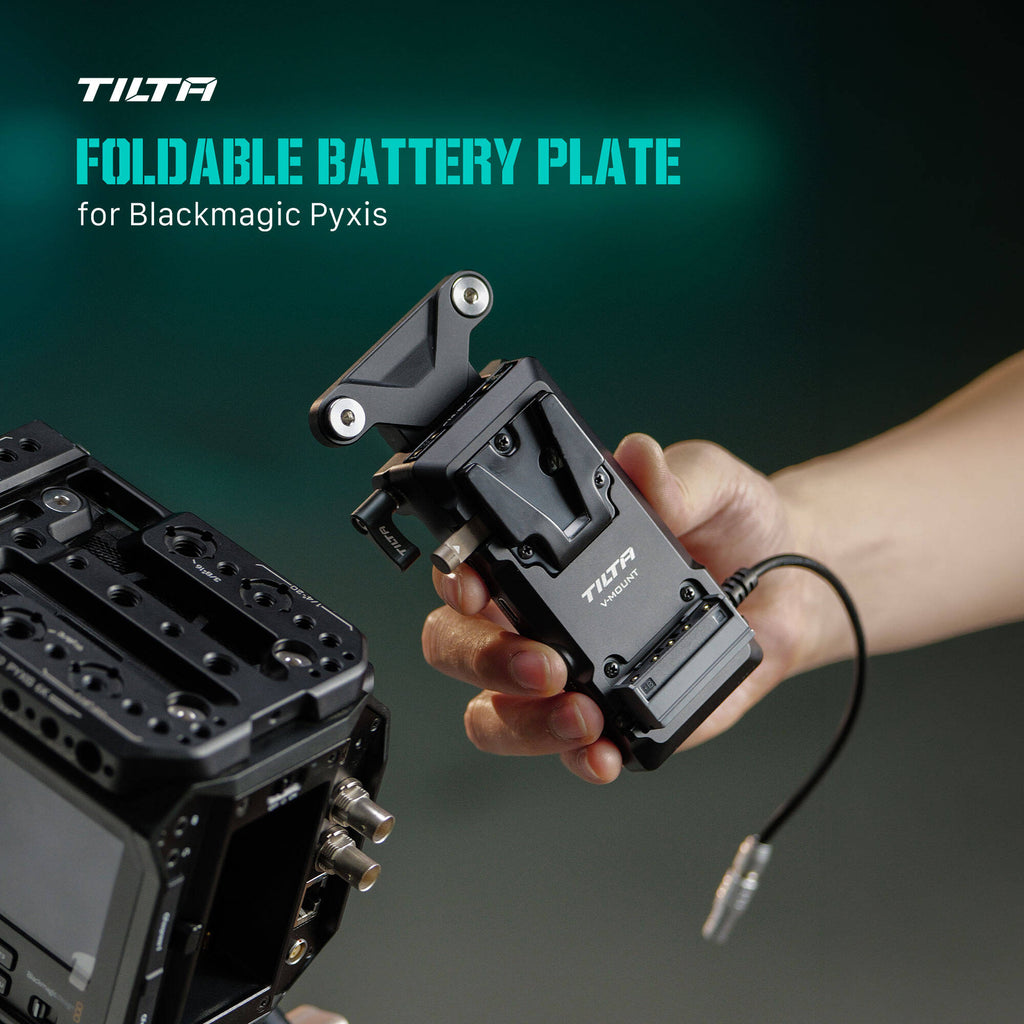

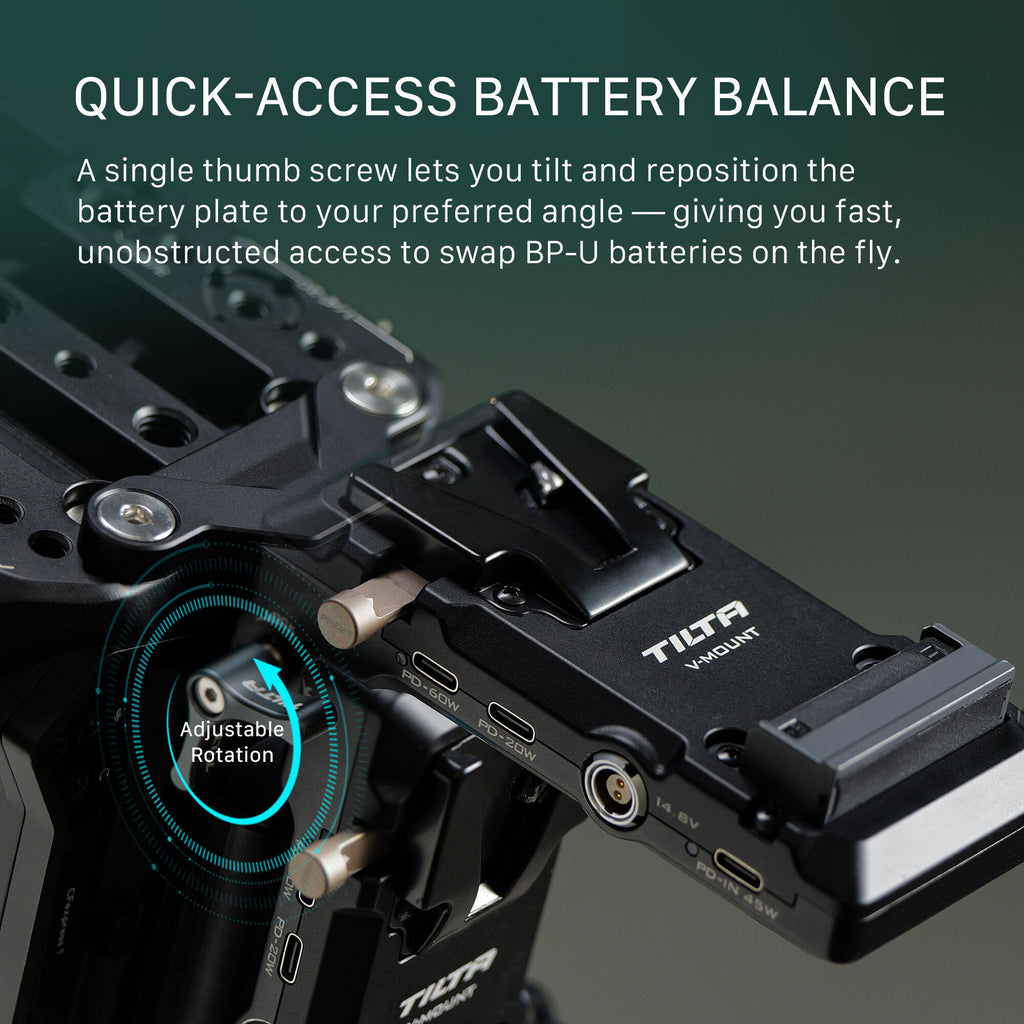

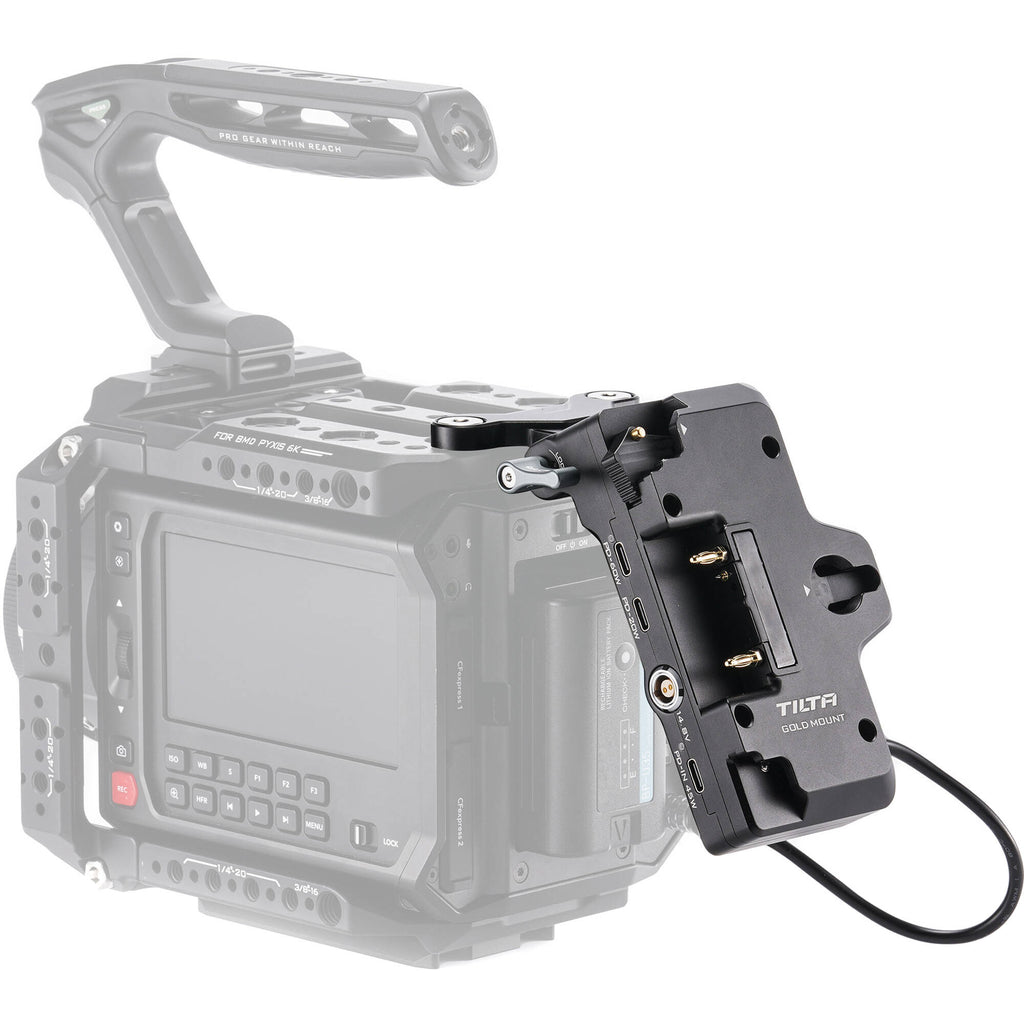

Power your Blackmagic Design PYXIS 6K or PYXIS 12K cinema camera and power-hungry accessories using a Gold mount battery with the Foldable Battery Plate from Tilta. Designed to mount via 1/4"-20 screws onto the separately available PYXIS 6K or 12K top plate on the back of the camera, this battery plate powers your camera and multiple accessories using a high-capacity Gold mount battery. It folds up and down to make room for the camera's on-board battery for redundant power.
The plate plugs into the camera's 2-pin power input using the integrated cable. It features two 14.8V D-Tap outputs, a 14.8V 2-pin LEMO-style output, a 20W USB-C PD output, a 60W USB-C PD output, and a 5V USB-A output for powering a variety of accessories. A 45W USB-C PD input provides battery charging and the ability to hot swap your battery using an external power source and a separately available cable.
- Tilta Foldable Battery Plate for Blackmagic PYXIS 6K & 12K (Gold Mount)
- Limited 2-Year Manufacturer Warranty
No additional resources available
Tilta ES-T21-FBP Specs
| Compatibility |
Blackmagic PYXIS 6K / PYXIS 12K
|
| Plate Front / Battery Mount |
Gold Mount
|
| Plate Rear Mount |
1/4"-20 Male
|
| Number of Battery Bays |
1 (Allows Hot-Swap When Connected to DC Input)
|
| Accessory Mounting |
No
|
| Indicator |
LED
|
| Inputs/Outputs |
2x D-Tap/P-Tap (14.8 VDC) Output
1x LEMO 2-Pin (14.8 VDC) Output 2x USB-C Output 1x USB-A (5 VDC) Output 1x USB-C Input |
| Plate Material |
Aluminum, Stainless Steel
|
| Dimensions |
9 x 6.7 x 4.3" / 22.9 x 17 x 10.9 cm
|
| Weight |
1.3 lb / 590 g
|
| Package Weight |
0.84 lb
|
| Box Dimensions (LxWxH) |
7 x 6.7 x 2.7"
|
