Description
Tilta ESR-T18-C Overview

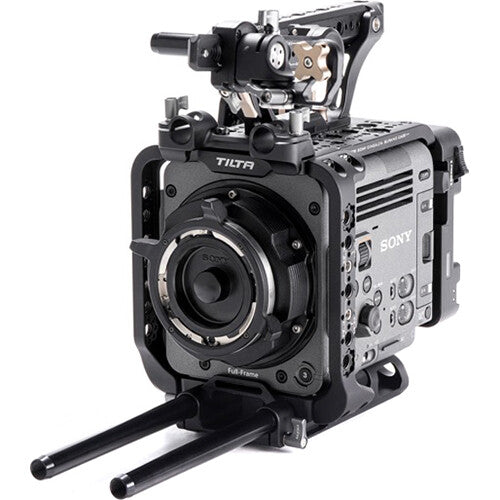

The Camera Cage Advanced Kit from Tilta expands on the configuration of the basic camera cage for the Sony BURANO to take your camera to the next level with numerous accessories and mounts. The kit includes a modular camera cage with numerous mounting options such as 1/4"-20 and 3/8"-16 holes, rosettes, 15mm LWS rod block, and 15mm LWS baseplate.
The cage includes a top handle, a rotating EVF bracket to relocate your EVF, two 7.9" long 15mm rods, and a Gold Mount battery plate with numerous power distribution options and hot-swap functionality. A mini multi-tool is also included to assemble the cage and make adjustments, and an Allen wrench stores in the baseplate for quick access.
Add power distribution to your Sony BURANO with this Battery Plate from Tilta to power your camera as well as multiple accessories. The durable aluminum Gold mount plate mounts onto the camera's V-mount plate to pass power through to the camera, and it provides one 6-pin LEMO-type 12-28 VDC input to enable hot swapping with an alternate power source.
Power accessories with numerous outputs, including one 14.8V D-Tap output, one 65W USB-C PD output, one 14.8V 2-pin LEMO-type output, one 3-pin 24V Fischer output, and one 3-pin 14.8V Fischer output. The plate also provides the ability to use physically larger batteries by extending it further from the camera body.

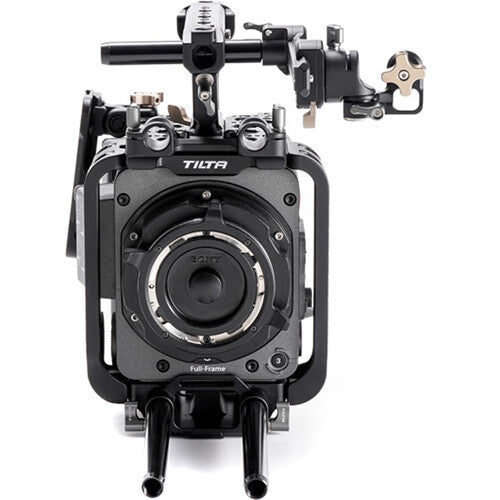

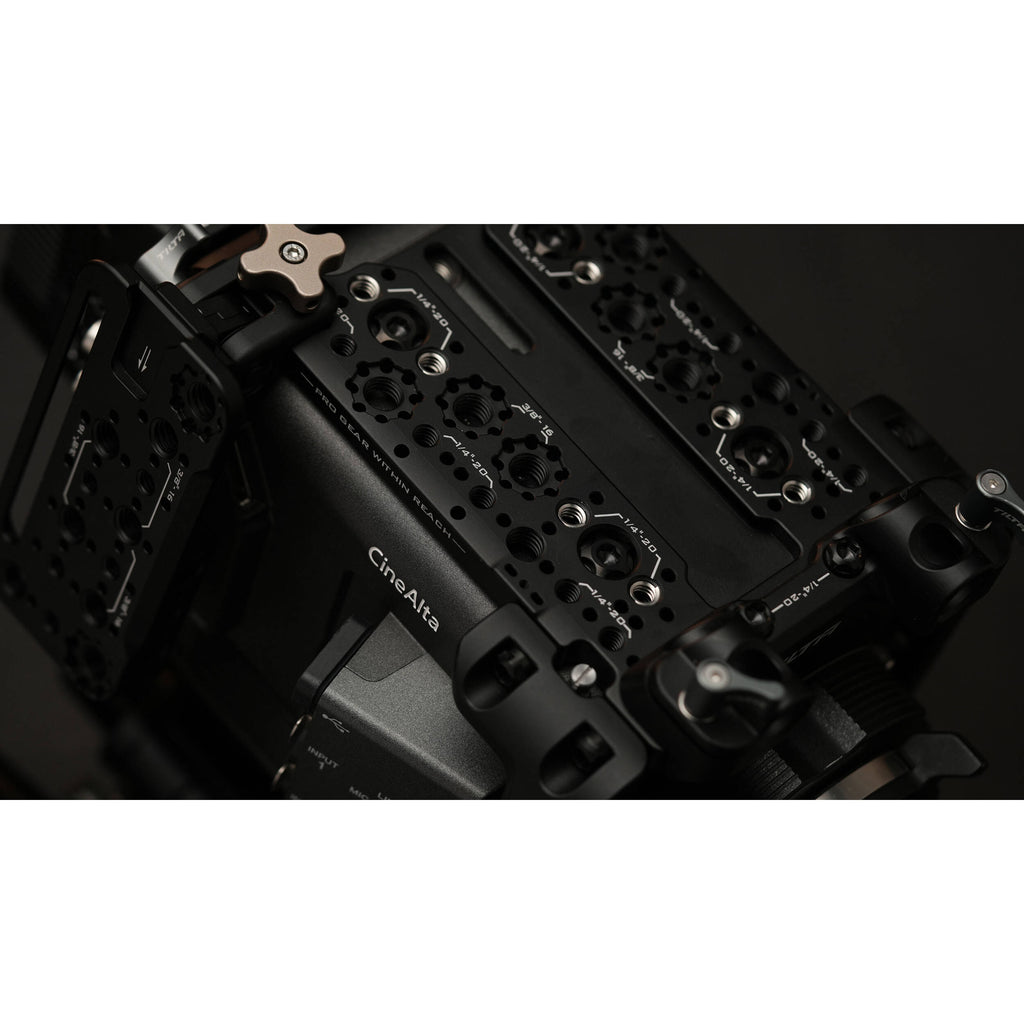

Add accessories and mounting options to your Sony BURANO cinema camera with the Full Camera Cage Plus from Tilta. The modular aluminum cage mounts around the camera to provide numerous accessory mounting options, including numerous 1/4"-20 and 3/8"-16 anti-twist threads, an ARRI-style rosette on the side, a top 15mm LWS rod block, and a 15mm LWS baseplate. Also included are two 7.9" 15m rods to add rod-mounted accessories such as a lens support, follow focus, or matte box.
The top handle slides into the top plate slot with two screws and provides additional 1/4"-20 and 3/8"-16 accessory threads, and it is also compatible with the original Sony top handle. The side plate can also adjust its angle and height for added versatility. You can mount the baseplate on a separately available Tilta dovetail using its 1/4"-20 and 3/8"-16 bottom threads.
Attach the original electronic viewfinder to your Sony BURANO cage top handle with this Rotating EVF Bracket from Tilta. The durable aluminum bracket mounts onto the separately available Tilta Top Handle for Sony BURANO using the handle's 15mm rod port. It is also compatible with the original Sony BURANO top handle. The BURANO EVF relocates onto the end of the bracket and provides 360° rotation and tilt to position your EVF just how you need it.
Items Included
- Tilta Battery Plate for Sony BURANO (Gold Mount)
- Limited 2-Year Manufacturer Warranty
- Tilta Full Camera Cage Plus for Sony BURANO
- Top Plate
- Left Side Arm
- Right Side Arm
- 15mm LWS Baseplate
- 15mm LWS Rod Holder
- Side Mounting Plate
- Top Handle
- 2 x Tilta Threaded 15mm Rod (Black, 8", Single)
- Mini Multi-Tool
- Allen Wrench
- Limited 1-Year Manufacturer Warranty
- Tilta Rotating EVF Bracket for Sony BURANO
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Tilta ESR-T18-C Specs
| Power Output |
LEMO 2-Pin: 14.8 VDC at 3 A
LEMO 6-Pin: 12 to 28 VDC D-Tap: 14.8 VDC at 3.8 A USB-C: VDC Fischer 3-Pin: 24 VDC at 3 A Fischer 3-Pin: 14.8 VDC at 3.8 A |
| Camera Power Method |
Battery Plate Mount Type
|
| Plate Front / Battery Mount |
Gold Mount
|
| Power Output |
LEMO 2-Pin: 14.8 VDC at 3 A
LEMO 6-Pin: 12 to 28 VDC D-Tap: 14.8 VDC at 3.8 A USB-C: VDC Fischer 3-Pin: 24 VDC at 3 A Fischer 3-Pin: 14.8 VDC at 3.8 A |
| Camera Power Method |
Battery Plate Mount Type
|
| Inputs/Outputs |
2x Fischer 3-Pin
1x LEMO 6-Pin 1x LEMO 2-Pin 1x D-Tap 1x USB-C |
| Plate Front / Battery Mount |
Gold Mount
|
| Plate Rear Mount |
V-Mount Battery Plate
|
| Number of Battery Bays |
1
|
| Material of Construction |
Aluminum Alloy
|
| Weight |
1.5 lb / 680 g
|
| Package Weight |
1.335 lb
|
| Box Dimensions (LxWxH) |
6.9 x 6.2 x 2.3"
|
Tilta ESR-T18-C Specs
| Rod Standard |
15 mm LWS / 60 mm Spacing
|
| Included Rods |
2x 7.9" / 20 cm 15 mm Aluminum Rod
|
| Battery Plate Type |
No
|
| Accessory Mounting |
Multiple Anti-Twist 1/4"-20 Female Thread
Multiple Anti-Twist 3/8"-16 Female Thread |
| Tripod Mounting |
1/4"-20 Female Thread, 3/8"-16 Female Thread
|
| Rod Ports |
Top Plate
2x 15 mm Rod Port Baseplate 2x 15 mm Rod Port |
| Shoe Mounting |
No
|
| Rosettes |
Side Plate
1x ARRI Rosette w/ M6 Female Thread |
| Cable Clamp |
No
|
| Support Type |
Baseplate, Cage, Handheld Support, Rod Support System
|
| Grip Type |
Topside Handgrip
|
| Camera Compatibility |
Sony BURANO
|
| Materials |
Aluminum
|
| Dimensions |
16.5 x 9.5 x 6" / 41.9 x 24.1 x 15.2 cm
|
| Weight |
4.9 lb / 2.2 kg
|
| Package Weight |
5.235 lb
|
| Box Dimensions (LxWxH) |
15.3 x 8.2 x 3.3"
|
Tilta ESR-T18-C Specs
| Compatibility |
Sony BURANO Cinema Camera
Tilta Top Handle for Sony BURANO |
| Mounting |
1x 15 mm Rod
1x Proprietary EVF Screw Mount |
| Color |
Black
|
| Material of Construction |
Aluminum, Steel
|
| Dimensions |
9 x 6 x 3.5" / 22.9 x 15.2 x 8.9 cm
|
| Weight |
12.8 oz / 363 g
|
| Package Weight |
0.745 lb
|
| Box Dimensions (LxWxH) |
8.8 x 5.8 x 2.8"
|
