Description

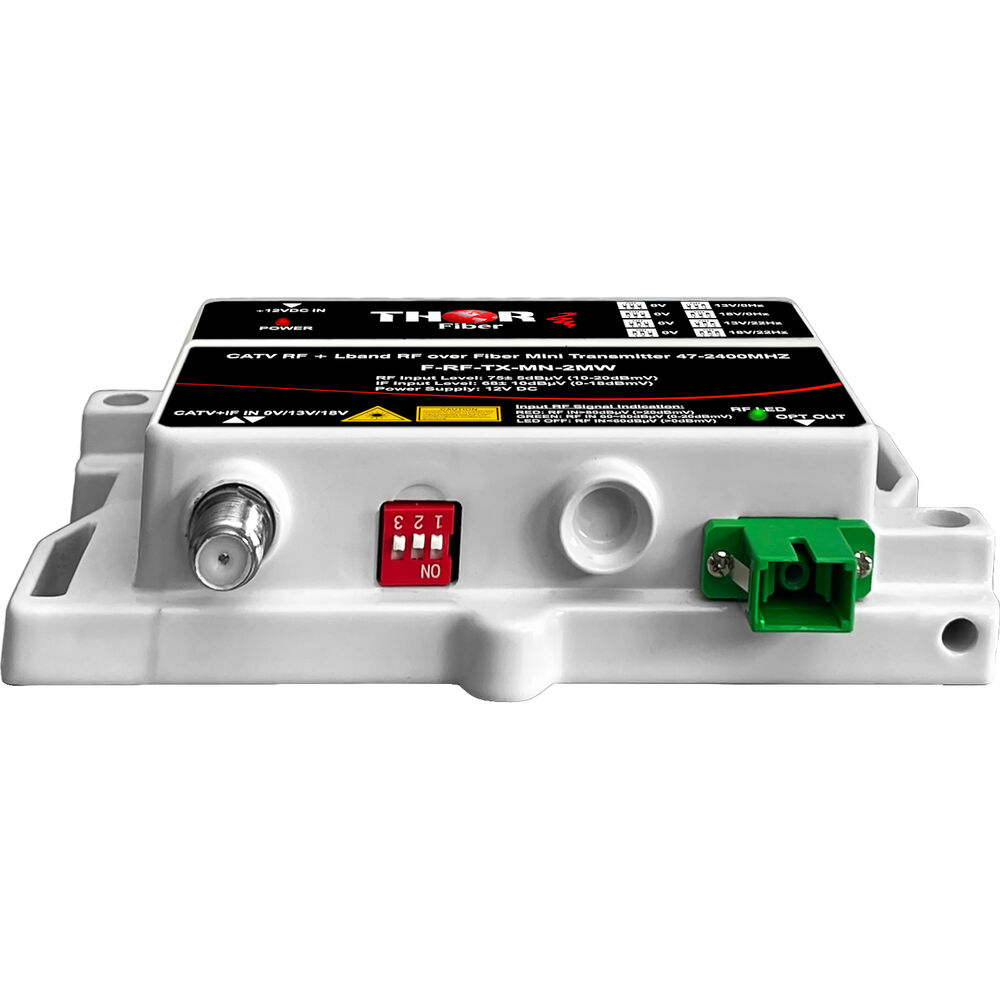

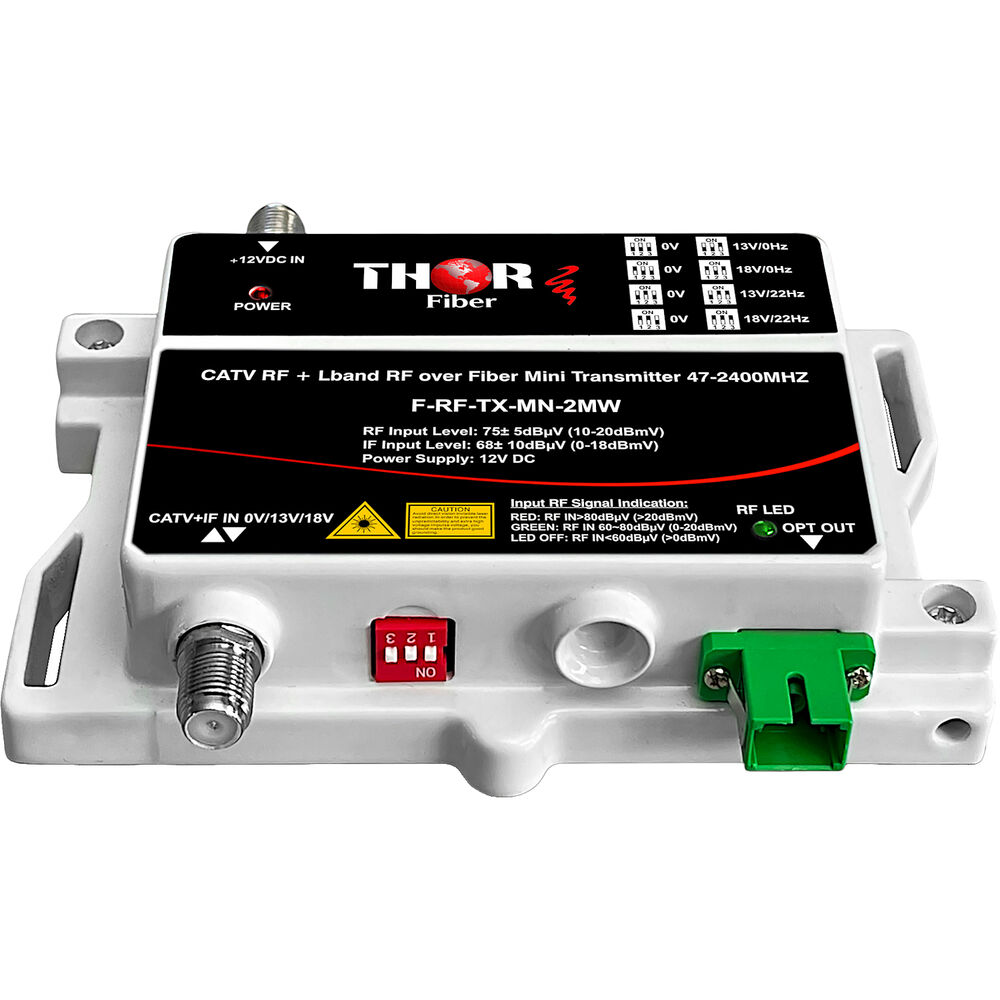

Thor Fiber CATV RF 45-1000 MHz over Fiber Overview
Transmit analog or digital RF signals over long distances with this Fiber CATV RF 45-1000 MHz over Fiber Mini Transmitter from Thor. This compact module provides a BNC input for QAM/ATSC analog or digital video, phone, or data that outputs a digital signal with a transmission range of up to 6.2 miles over optical fiber. A built-in advanced 1550nm, 2mW DFB laser boosts the RF signal, and internal performance monitoring provides equipment stability. The transmitter can be paired with an optional Thor fiber RF receiver.
NOTE: It is very important to interface the unit with an SC/APC Angle Polished Connector to avoid any light reflections. If your fiber is terminated with the SC, ST, FC/PC flat connector, you need to use an optical jumper from PC-type to SC/APC for proper conversion.
- 45 to 1000 MHz working bandwidth
- 1550nm, 2mW laser
- High-performance DFB coaxial laser that has a great linking performance and stable output
- Advanced CPU processing and an auto-monitoring system to supervise the operational status, which leads to a longer life of the laser
- Low power loss design (less than 8W), which creates a very low operational temperature
- F-RF-RX-MN-2 Fiber Optical Mini FTTH RF CATV CABLE TV Receiver with dual coax output
- F-RF-RX-RM CATV RF Fiber Receiver: High RF power, rackmountable
- F-RF-RX-MN RF CATV Mini Optical Receiver
- F-MININODE-2RP-HP Optical Mini-Node: CATV RF Receiver with return path; high 48 dBmV RF output power

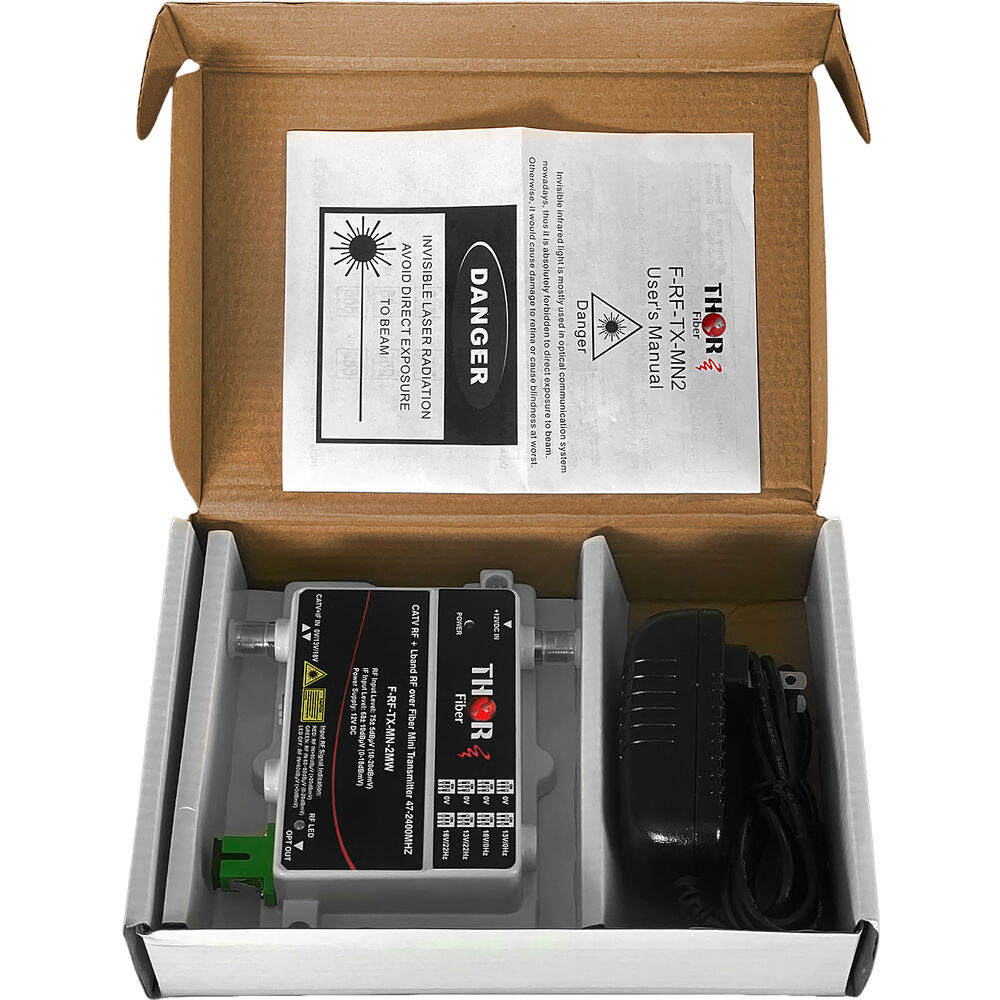

- Thor Fiber CATV RF 45-1000 MHz over Fiber Mini Transmitter (1550nm, 2mW)
- Power Supply
- Limited 2-Year Manufacturer Warranty
-
ReceiversEssential
No additional resources available
Thor Fiber CATV RF 45-1000 MHz over Fiber Specs
| Transmission I/O |
1x BNC Female Input
1x SC Female (Fiber) Output |
| Power I/O |
1x Proprietary (12 VDC at 1.5 A) Input
|
| Max Transmission Distance |
6.2 Miles / 10 km
|
| Supported Cable Types |
Single-Mode Fiber
|
| Dimensions |
5.5 x 3.5 x 1" / 140 x 90 x 26 mm
|
