Description
Thor 8X8HDMI-4K-SW Overview

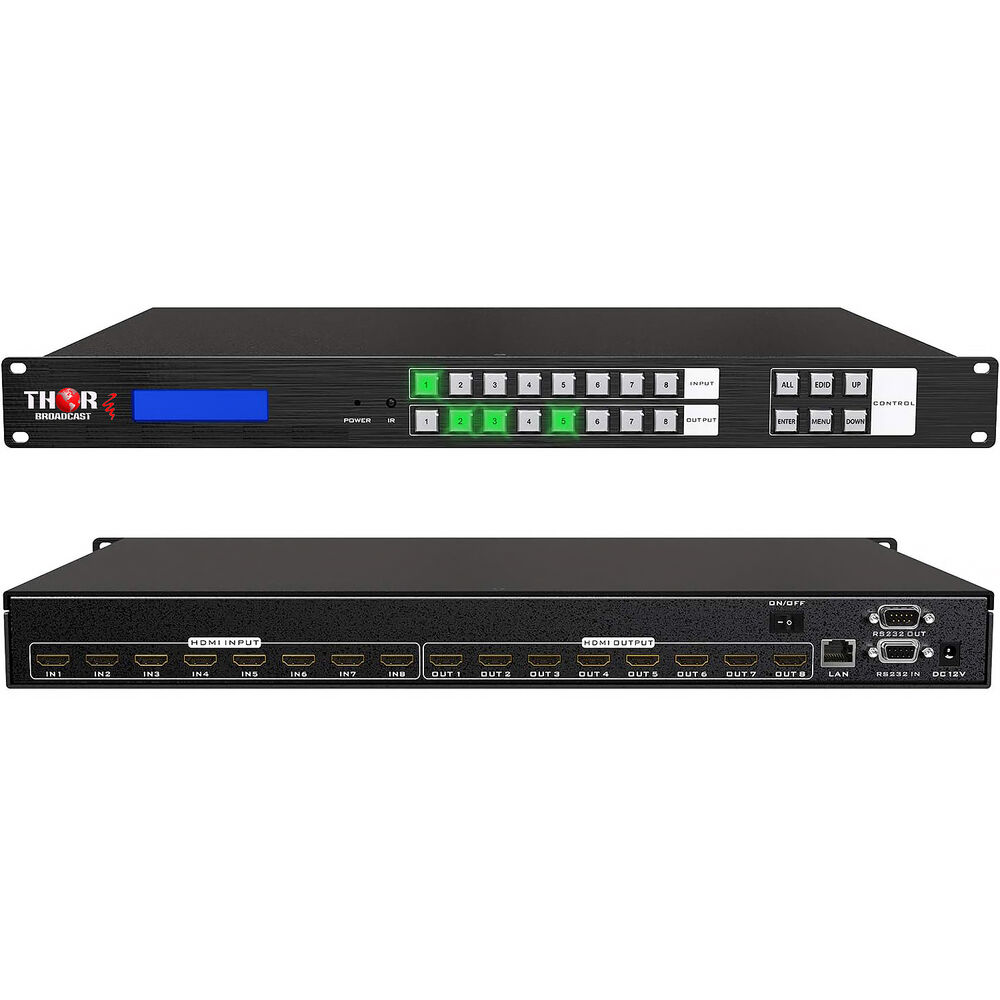

Use the 8x8 4K HDMI Rackmount Matrix Switch with Web, RS-232 & IR Control from Thor to connect multiple HDMI sources and output them in flexible configurations to reach up to eight individual HDMI displays. The eight HDMI inputs and eight SDI outputs support up to UHD 4K30 video and route the signal to sources of your choice.
Additional Details
- Remotely control the unit via the front panel buttons, RS-232 serial, IR remote, or a web-based GUI
- Front panel buttons for local control
- An LCD screen on the front panel allows you to monitor and configure the connections
- A 3.5mm audio output port provides the ability to de-embed analog audio to external speakers
- Includes a 1 RU rackmount kit
- PCM, Dolby AC3, DTS 5.1/7.1, DSD audio support
- The unit can be installed on a desktop or in a standard rackmount
- This unit allows you to create a multiviewing HDMI environment in areas such as bars, restaurants, conferences, security, government, hospitals, education, sports, and courts
- Thor 8x8 4K HDMI Rackmount Matrix Switch with Web, RS-232 & IR Control
- IR Remote
- RS-232 Cable
- Rackmount Kit
- Power Supply
- Limited 2-Year Manufacturer Warranty
Thor 8X8HDMI-4K-SW Specs
Processing
| Switching Type |
IR Remote, Pushbutton, Software
|
| Processing Resolution |
UHD 4K
|
Input
| Video Inputs |
8x HDMI (1.4) Female
|
| Input Video Format |
HDMI
UHD 4K up to 30 fps |
| Input Audio Format |
PCM 2.0
|
| Embedded Audio Input |
HDMI
|
Output
| Video Outputs |
8x HDMI (1.4) Female
|
| Output Video Format |
HDMI
UHD 4K up to 30 fps |
| Audio Outputs |
1x 1/8" / 3.5 mm TRS Stereo Analog Female
|
| Output Audio Format |
PCM 2.0
|
| Embedded Audio Output |
HDMI
|
Connectivity
| Other I/O |
1x DE-9/DB-9 RS-232 Input
1x DE-9/DB-9 RS-232 Output 1x RJ45 Control, Firmware, LAN Input/Output |
Hardware
| Wireless |
No
|
Power
| Power I/O |
1x Barrel (12 VDC at 1.2 A) Input
|
| Power Consumption |
Device: 100 to 240 VAC (13.5 W)
|
General
| Rack Form Factor |
1 RU
|
| Dimensions |
17.3 x 5.9 x 1.7" / 440 x 150 x 44 mm
|
Packaging Info
| Package Weight |
5.69 lb
|
| Box Dimensions (LxWxH) |
19.4 x 7.5 x 3.7"
|
