Description

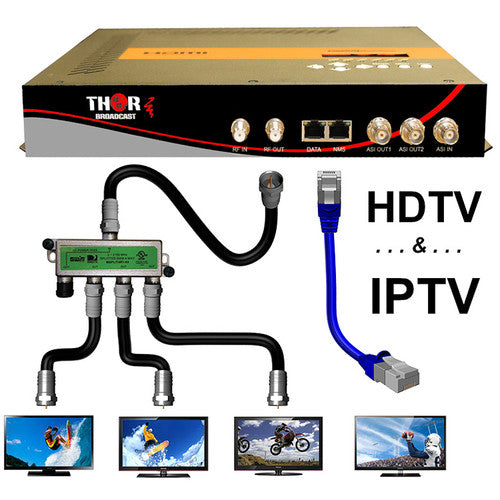

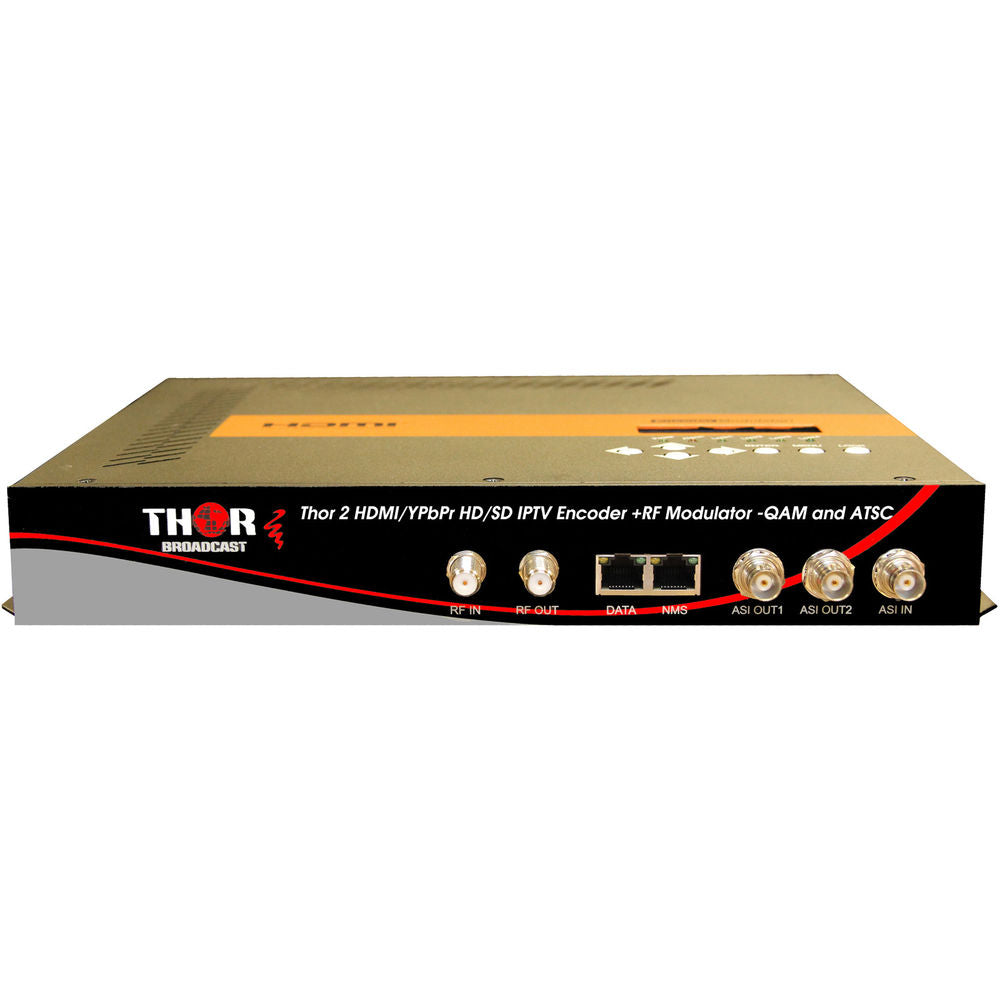

The 2-Channel HDMI/YPbPr/CVBS to Digital RF Encoder Modulator System from Thor integrates encoding (MPEG-2, MPEG-4/AVC H.264) and modulation to convert HDMI/YPbPr/CVBS signals to digital RF output. It is equipped with one ASI input and an output with two ASI ports and one IP port. The signal source could be from satellite receivers, CCTV cameras, Blu-ray players, OTA antennas, and more. The output signals are to be received by TVs, STB, and more with the same corresponding standard.
- Suitable for metro, market halls, hotels, stadiums, and more
- MPEG-2 HD and MPEG-4 AVC H.264 HD video encoding
- DD AC3 (2.0), MPEG-4-AAC, MPEG-2-AAC, MPEG-1 layer II audio encoding
- Supports DD AC3 (2.0/5.1/7.1) pass-through
- Supports AC3 dialog normalization

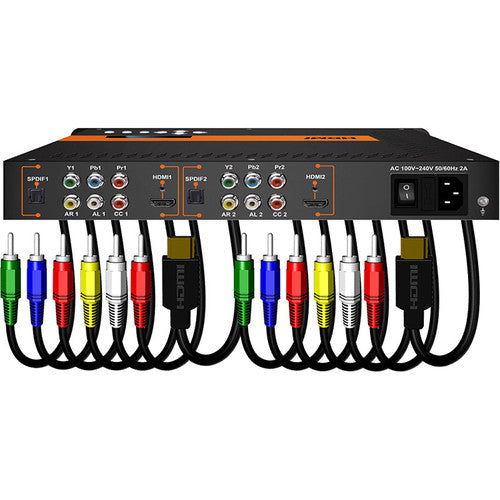

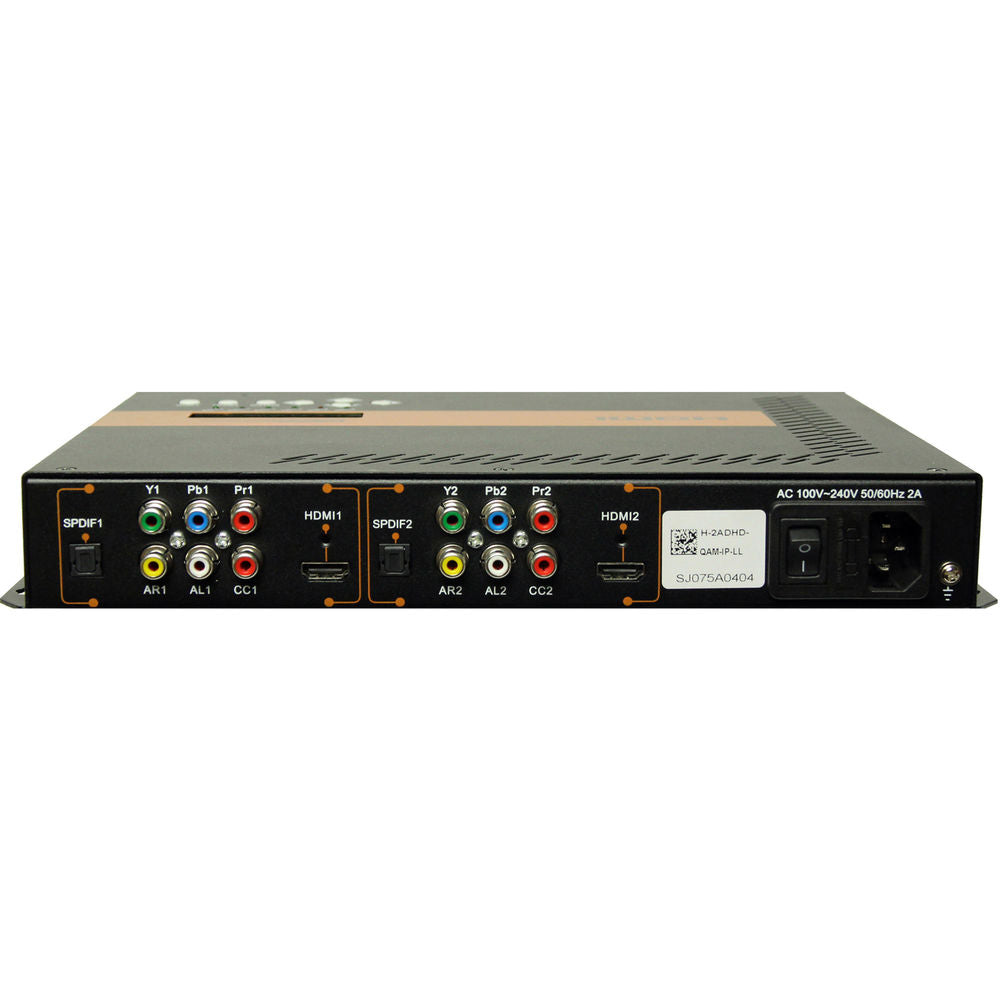

- Two HDMI/YPbPr/CVBS (Pr in) channels input
- ASI input for remux; one RF input for RF mix
- Four DVB-C and four ATSC RF outputs in one device
- Two separate ASI outputs to mirror MPTS or one carrier programs
- IP (two SPTS and one MPTS) output
- Supports CC (closed captioning) EIA608
- Supports low delay
- Supports LCN (Logical Channel Number) and VCT (Virtual Channel Table)
- LCD display, remote control, and firmware
- Web-based NMS management; updates via Web
UPC: 659682981185
| Video | |
|---|---|
| Video HDMI | Encoding: MPEG-2, MPEG-4 AVC/H.264 Interface: 2 x HDMI Resolutions: 1080p 60/50 (for MPEG-4 AVC/H.264 only) 1080i 60/50 720p 60/50 Low Delay: Normal, Mode 1, Mode 2, Manual Aspect Ratios: 4:3, 16:9 |
| CVBS | Encoding: MPEG-2, MPEG-4 AVC/H.264 Interface: 2 x CVBS(RCA) Resolutions: 576i 50 480i 60 |
| YPbPr Interface | Encoding: MPEG-2, MPEG-4 AVC/H.264 Interface: 2 x YPbPr (RCA) Resolutions: 1080i 60/50 720p 60/50 |
| Audio | |
|---|---|
| HDMI | Encoding: MPEG-1 layer II, MPEG-2-AAC, MPEG-4-AAC DD AC3 (2.0) DD AC3 (2.0/5.1/7.1) pass-through Interface: 2 x HDMI 2 x SPDIF Sample Rate: 48 kHz Bit Rate: 64/96/128/192/256/320 kb/s |
| Audio In (L/R) | Encoding: MPEG-1 layer II, MPEG-2-AAC, MPEG-4-AAC DD AC3 (2.0) DD AC3 (2.0/5.1/7.1) pass-through Interface: 2 x Stereo 4 x Mono 2 x SPDIF Sample Rate: 48 kHz Bit Rate: 64/96/128/192/256/320 kb/s |
| DVB-C Modulator | |
|---|---|
| Standard | J.83A (DVB-C), J.83B, J.83C |
| MER | ? 43 dB |
| RF Frequency | 36 to 960 MHz, 1 kHz step |
| RF Output Level | -30 to -10 dBm (77 to 7 dbµV), 0.1 dB step |
| Symbol Rate | 5.000 to 9.000 Ms/s adjustable |
| RF Output | 4 x DVB-C adjacent carriers, combined output |
| Constellation | J.83A: 16/32/64/128/256 QAM J.83B: 64/256 QAM J.83C: 64/256 QAM |
| Bandwidth | J.83A: 8M J.83B: 6M J.83C: 6M |
| ATSC Modulator | |
|---|---|
| Standard | ATSC A/53 |
| Constellation | 8 VSB |
| RF Output Level | -30 to -10 dBm (77 to 97 dbµV), 0.1 dB step |
| MER | ? 42 dB |
| RF Frequency | 36 to 960 MHz, 1 kHz step |
| RF Output | 4 x ATSC adjacent carriers, combined output |
| System | |
|---|---|
| Local Interface Control | LCD and control buttons |
| Remote Management | Web NMS |
| Stream Output Format | Two separate ASI outputs (BNC type, 100M) IP (2 x SPTS and 1 x MPTS) over UDP/RTP out (RJ45, 100M) |
| Interface | NMS Interface: RJ45, 100M |
| Language | English |
| General | |
|---|---|
| Power Supply | 100 to 240 VAC |
| Operation Temperature | 32 to 113°F / 0 to 45°C |
| Dimensions | 13.1 x 9.1 x 1.7" / 33.3 x 23.2 x 4.4 cm |
| Weight | 5.5 lb / 2.5 kg |
