Description
Thor H-2HDMI-2SDI-QAM-IPLL Overview
Convert HDMI and SDI signals to digital RF and IPTV stream simultaneously with the 2-Channel HDMI and 2-Channel SDI to QAM Modulator and IPTV Streaming Encoder from Thor. The all-in-one device, which can be controlled via NMS or front panel buttons, integrates MPEG-2 and MPEG-4/AVC H.264 encoding, modulation, and signal conversion for sources originating from satellite receivers, CCTV, Blu-ray players, and antennas with support for video resolutions up to 1080p60.

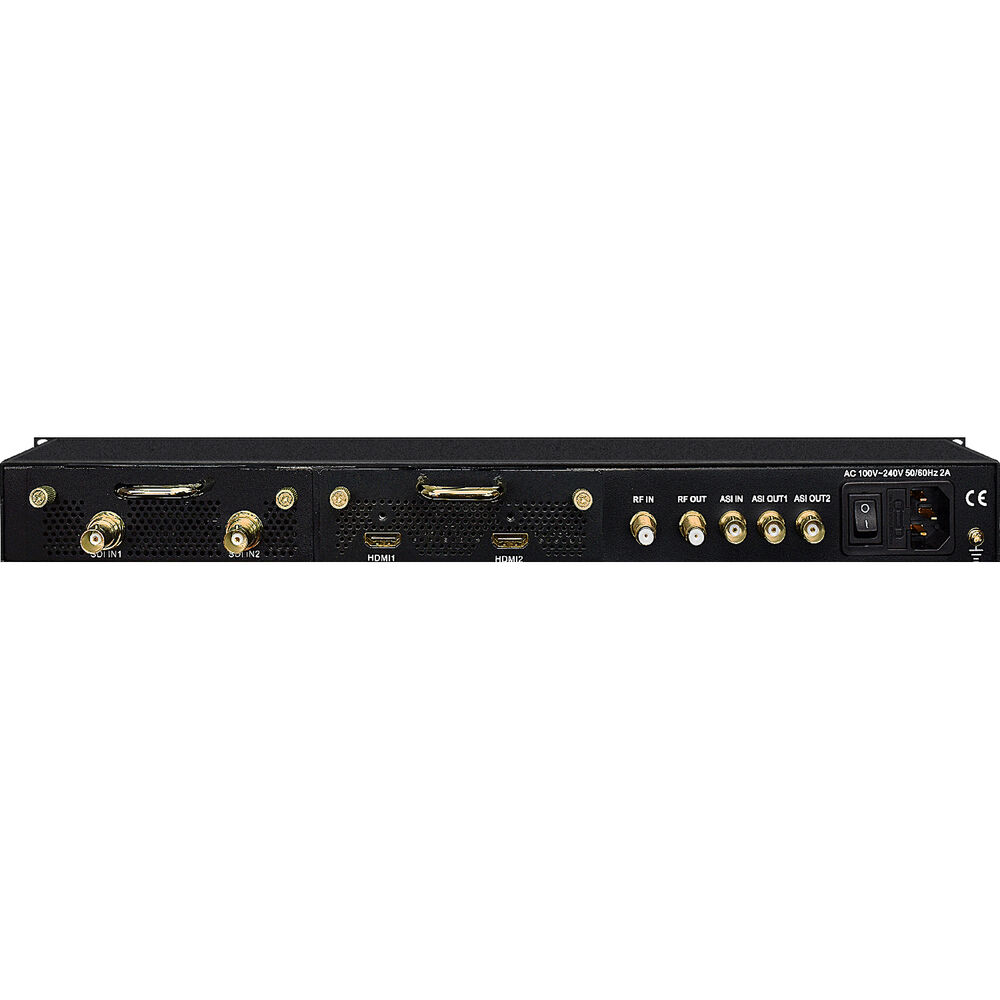

The unit features two HDMI and two SDI inputs, an ASI input via BNC, two ASI BNC outputs, and an IP port with RJ45 connectivity. Programs brought in via the ASI input can be multiplexed and remapped to the ASI outputs, which can be mirrored. Audio is embedded on both the HDMI and SDI inputs, but the HDMI option will preserve 5.1 and 7.1 audio in Dolby-compatible formats. All four incoming signals are easily mapped to unique IP address outputs with support for streaming UDP and RTP formats. The low latency modulator is ideal for a wide range of uses, including amphitheaters, malls, hotels, and more.
- Converts 2 HDMI and 2 SDI programs to QAM channels simultaneously
- 2 HDMI and 2 SDI cables included
- Supports DD AC3 (2.0/5.1/7.1) passthrough (for HDMI interface only)
- Supports CC (closed captioning) EIA608,and EIA708 on SDI inputs
- QAM-256/64, DVB-T, and ATSC formats available
- IP control and network management through browser

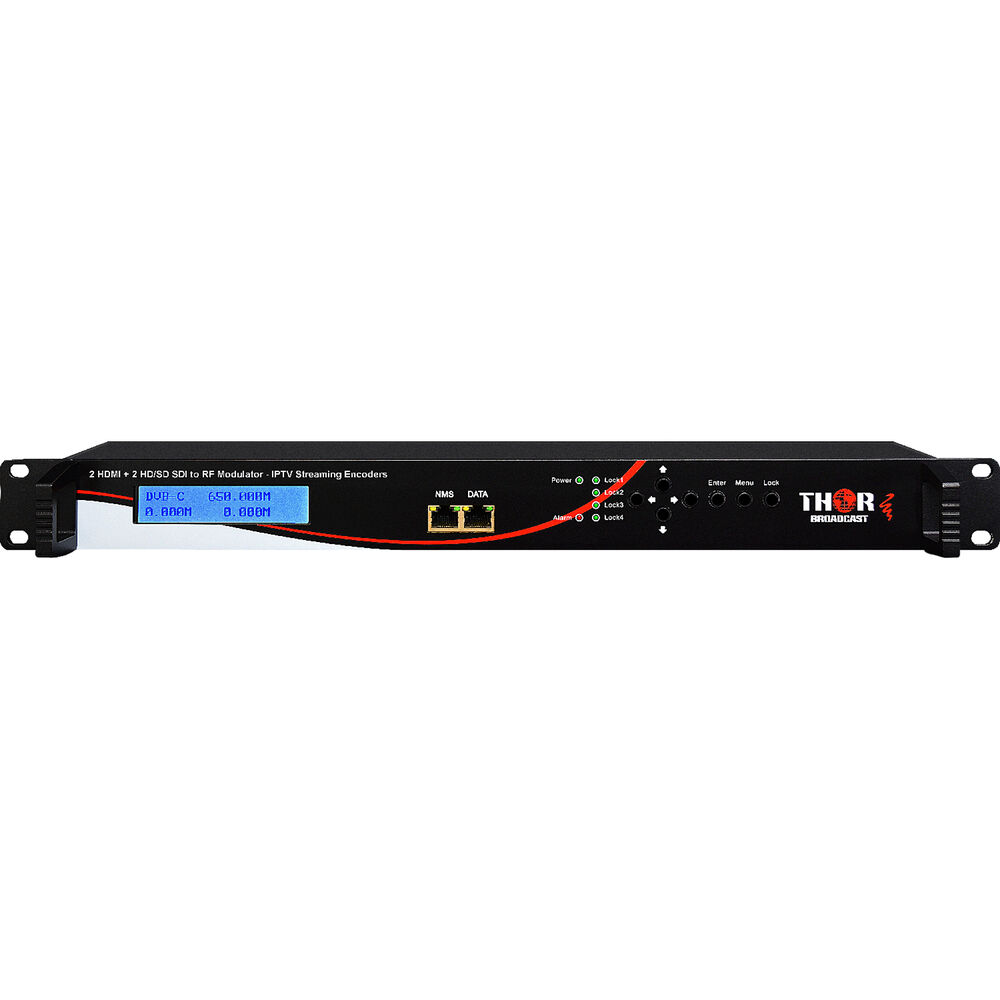

- Front panel LCD local control
- IPTV output: unicast or multicast IGMP, UDP/RTP/RTSP
- ASI output with multiplexer cherry picking
- Dolby AC3 audio encoding and Dolby AC3 5.1 pass-trough
- MPEG2 video or MPEG4 H.264 encoding
- VCT (virtual channel table) support for DVB-C, ATSC, and DVB-T
- LCN (logical channel number) support
In the Box
- Thor 2-Channel HDMI and 2-Channel SDI to QAM Modulator and IPTV Streaming Encoder
- 2 x HDMI Cable
- 2 x SDI Cable
- Power Cord
- Limited 5-Year Manufacturer Warranty
Thor H-2HDMI-2SDI-QAM-IPLL Specs
Panel Type |
LCD
|
Size |
Not Specified by Manufacturer
|
Touchscreen |
No
|
Video I/O |
2x HDMI Input
2x BNC (3G-SDI) Input |
Power Source |
AC Input (Included)
|
AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Power Consumption |
20 W
|
Operating Temperature |
32 to 110°F / 0 to 43°C
|
Dimensions |
19 x 17 x 2" / 482.6 x 431.8 x 50.8 mm
|
Weight |
9 lb / 4.1 kg
|
